Grounding point G2: Notes

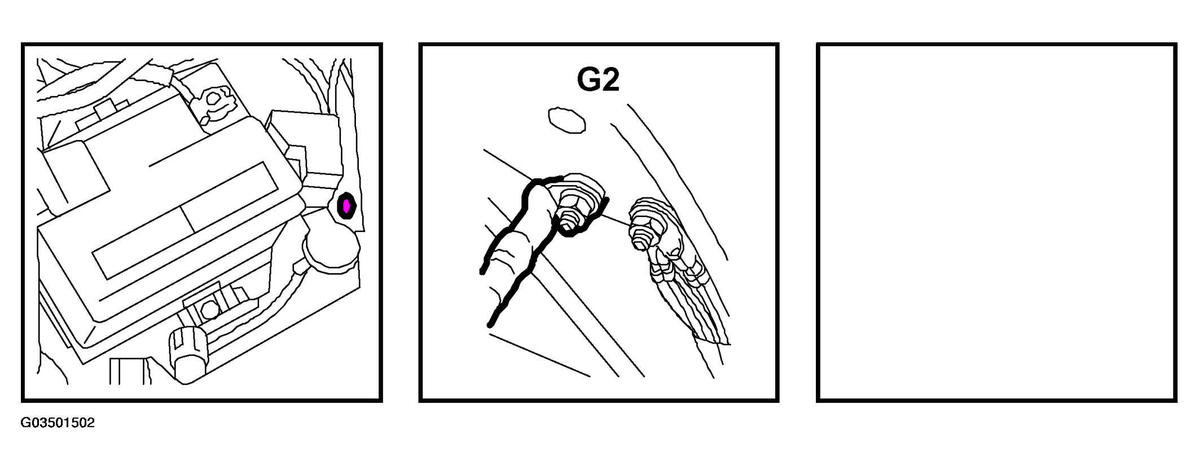

Fig 1: Locating Battery Grounding Point (G2)

G03501502

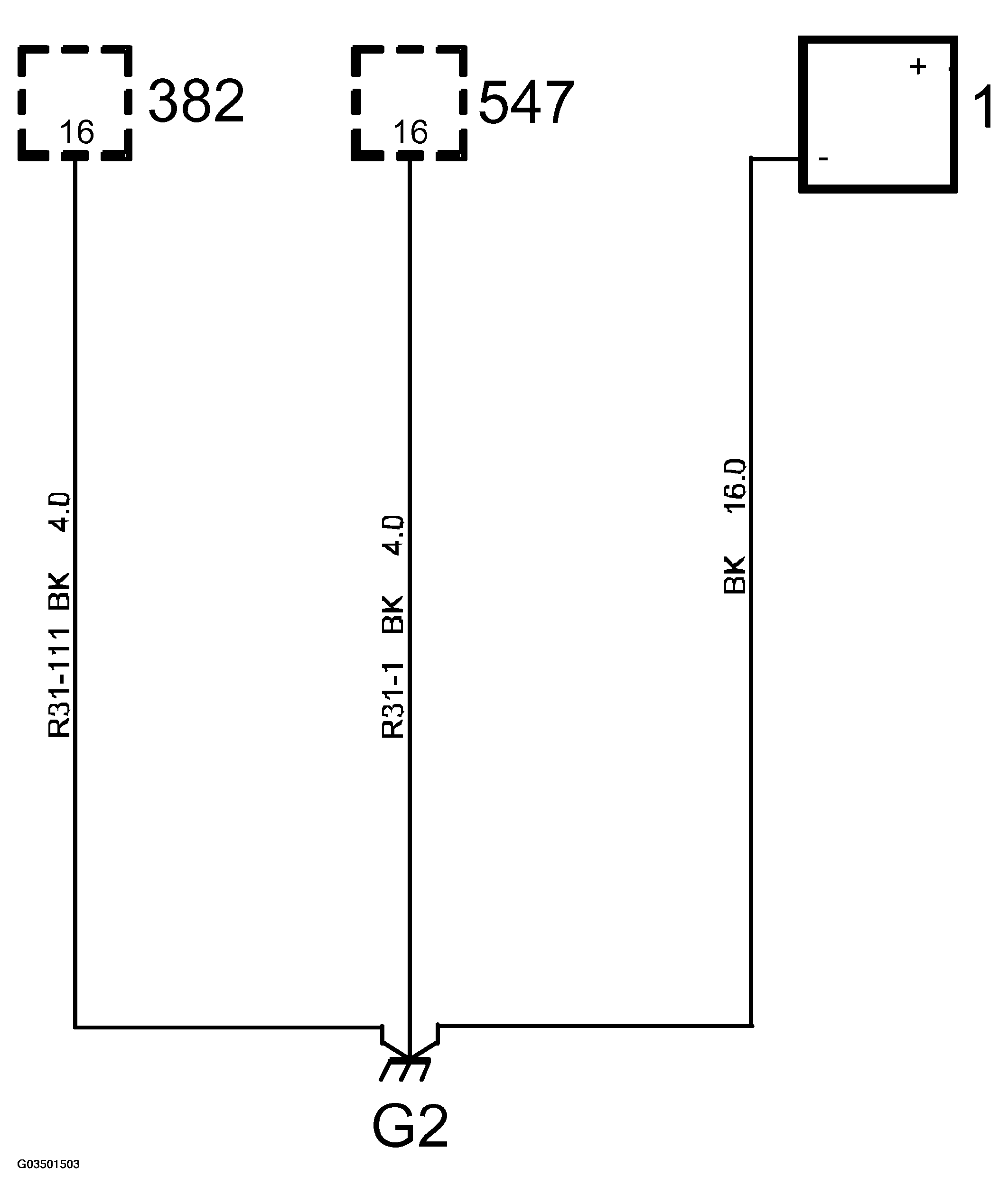

Fig 2: Battery Grounding Connection Diagram (G2)

G03501503

Location: in engine bay on side panel in front of left-hand wheel housing.
