To fit

Connect the valve to the hose. Make sure that the opening for the cable is correctly positioned.

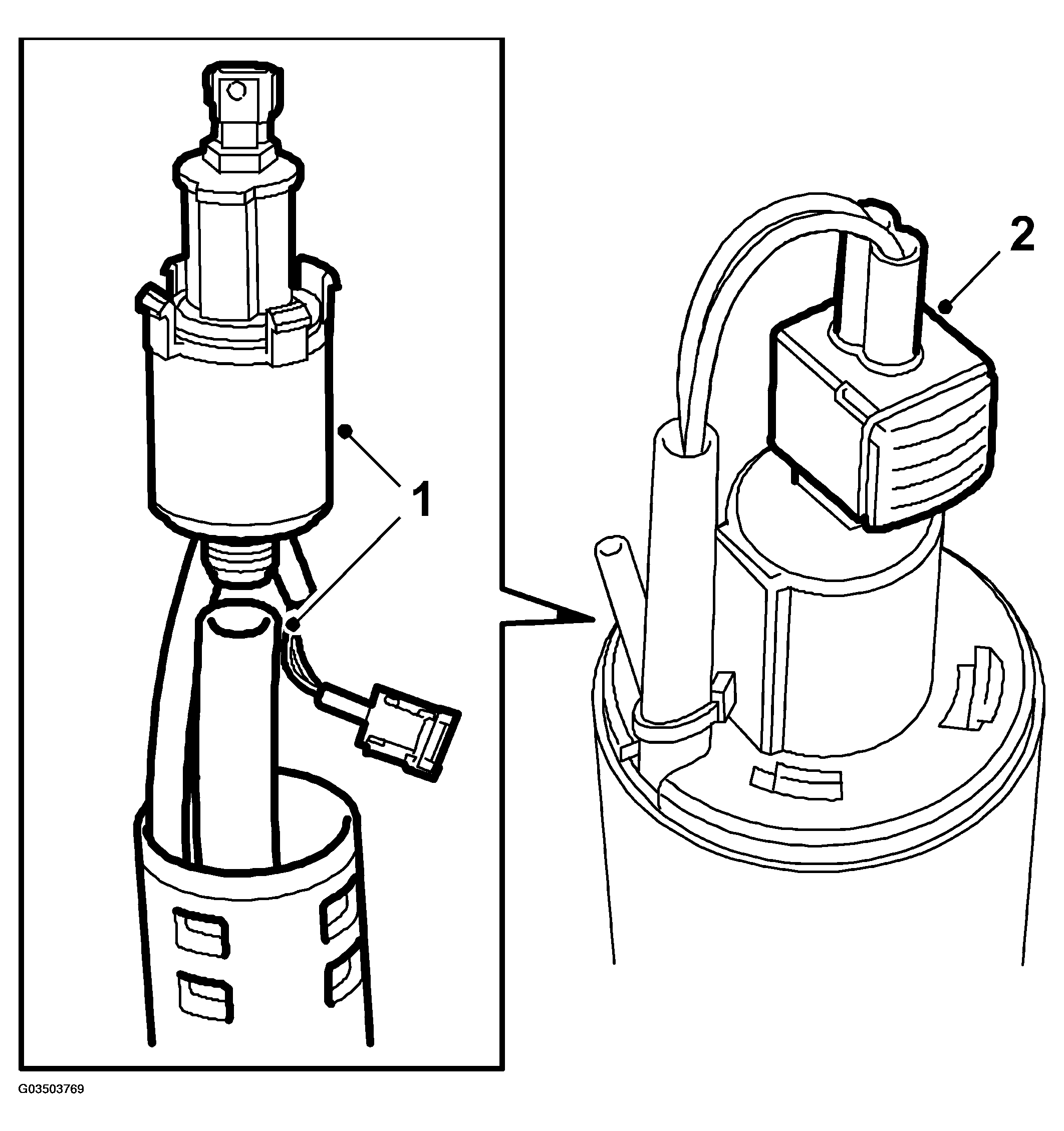

Fig 1: Illustration For Step 1-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Spray with Kontakt 61 and plug in the connector.
Carefully insert the valve into the vent hose.
IMPORTANT: Be careful with the foam rubber filter so that it is not damaged or incorrectly positioned.
Fit the cap.

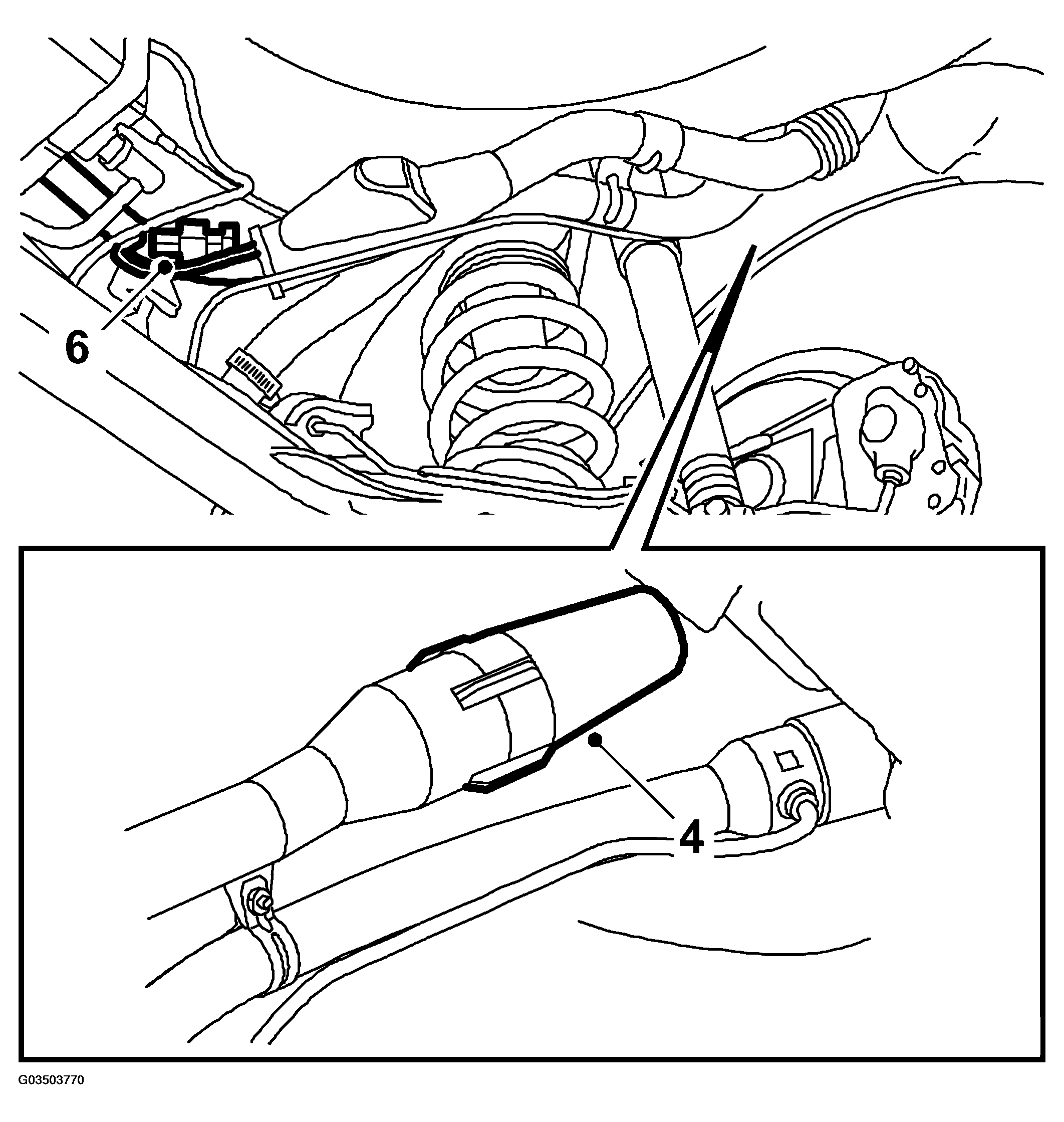

Fig 2: Illustration For Step 4-5-6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Raise the car.
Adjust and connect the shut-off valve hose to the EVAP canister.
Lower the car to the floor.
