To remove

  1. Raise the car.
  2. Detach the shut-off valve hose from the EVAP canister.

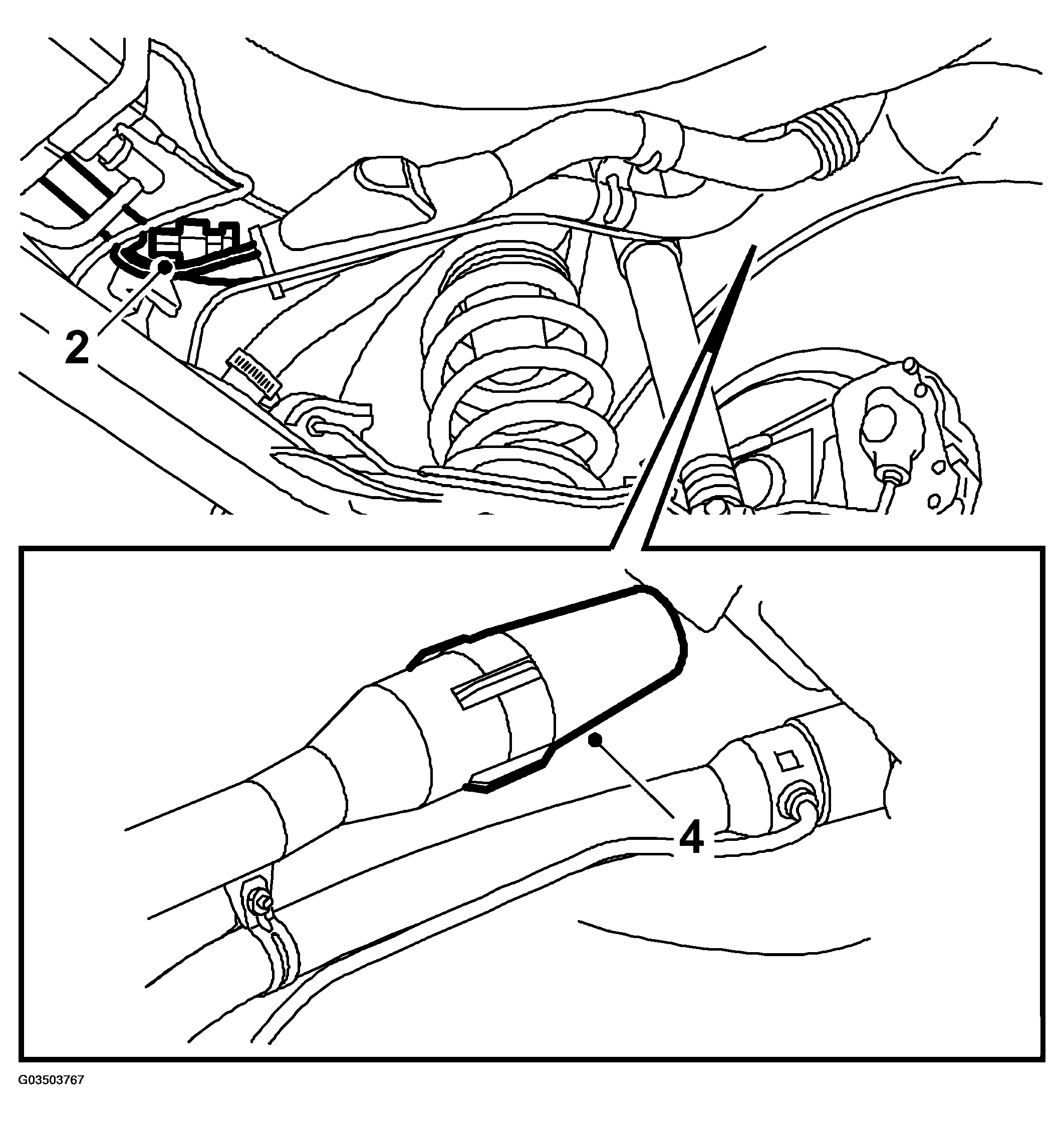

    Fig 1: Illustration For Step 2-4
    G03503767Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Lower the car slightly.
  4. Blow clean and remove the white cap on the shut -off valve.
  5. Unplug the connector and lift the valve upwards.

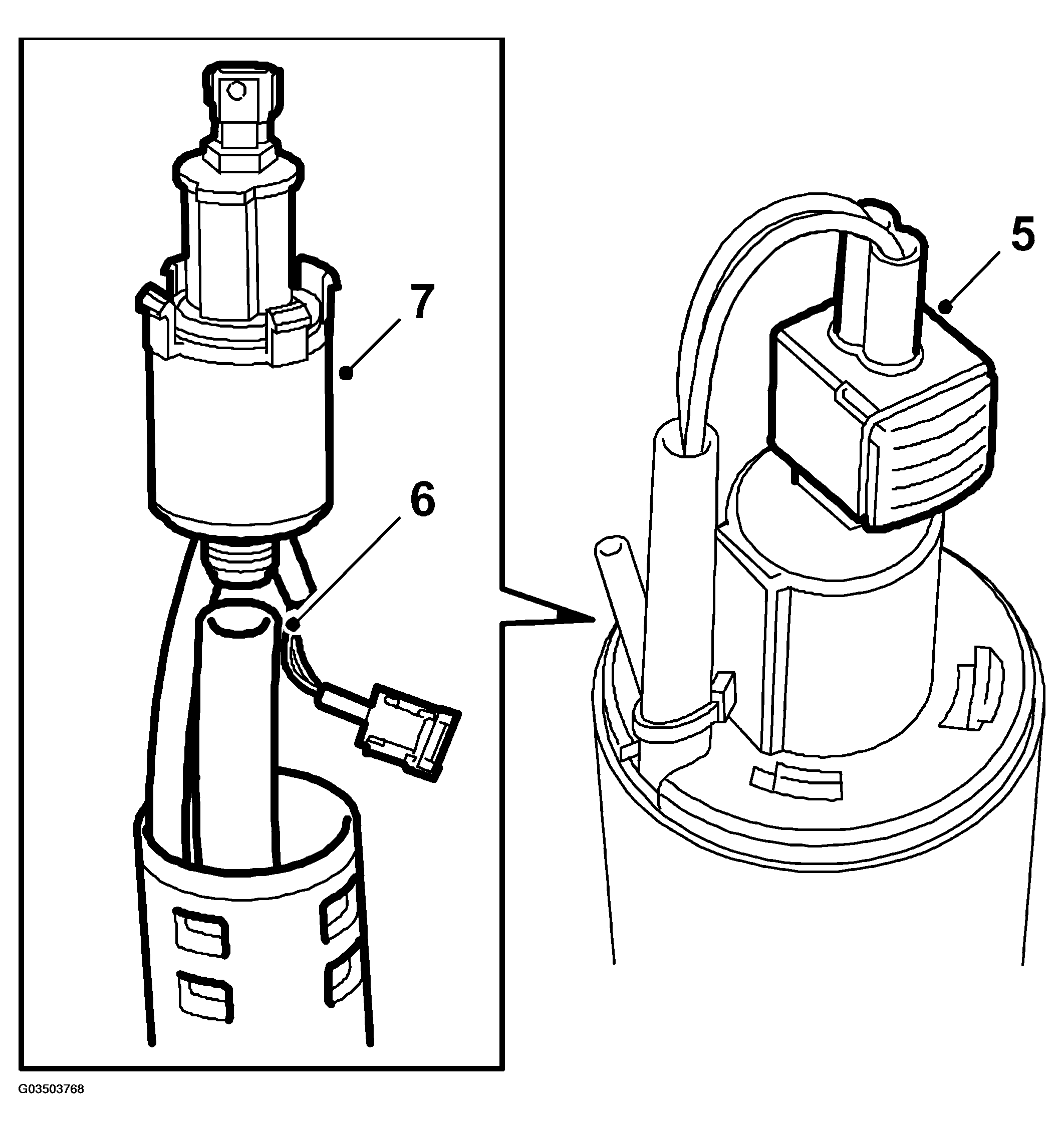

    Fig 2: Illustration For Step 5-6-7
    G03503768Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Detach the hose connection from the valve.
  7. Remove the valve.
