To remove

  1. Unplug the 10-pin ignition discharge module connector.

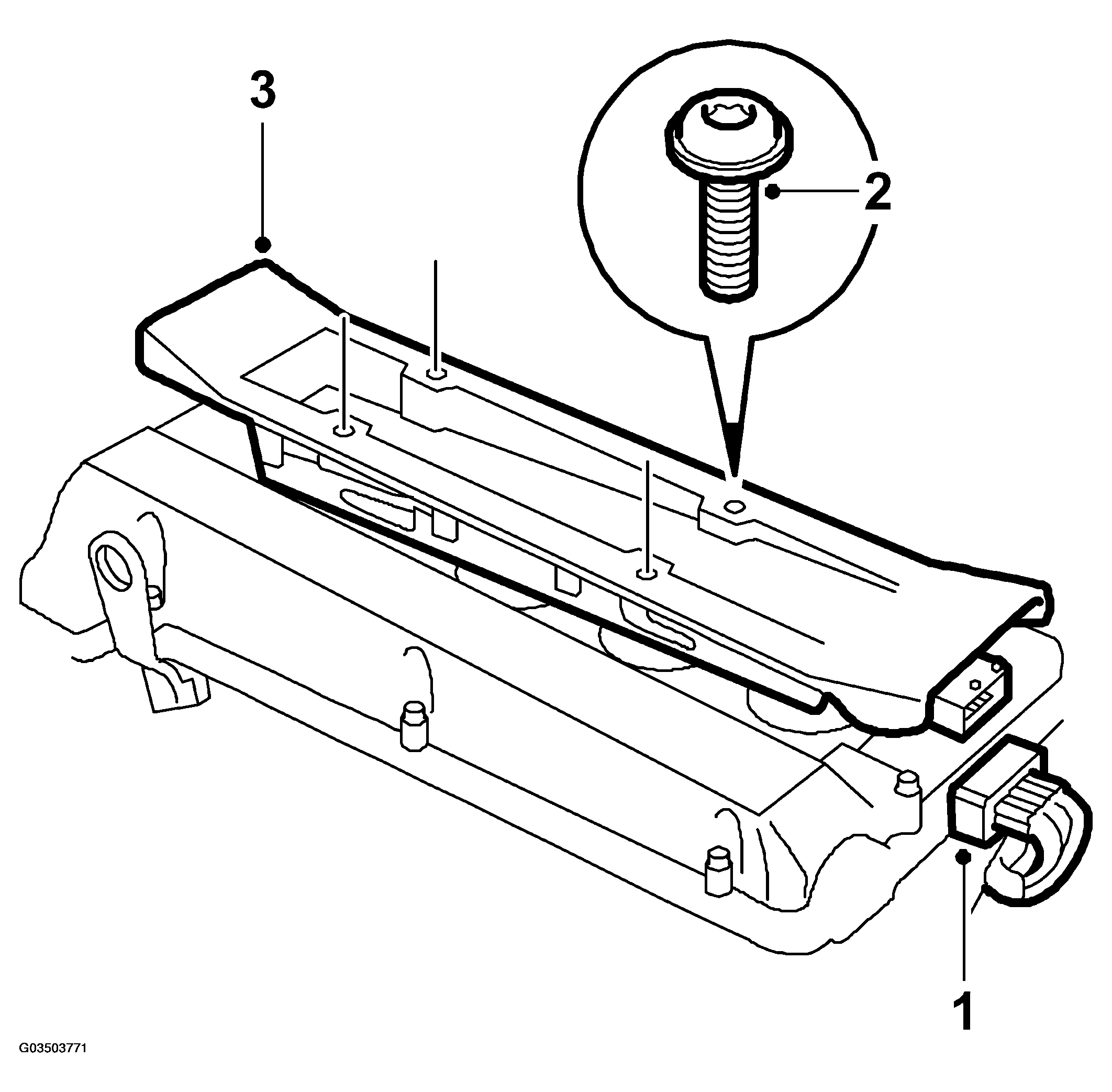

    Fig 1: Illustration For Step 1-2-3
    G03503771Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the 4 screws.
  3. Lift up the module.
