To remove

  1. Remove the cover on the knee protection.

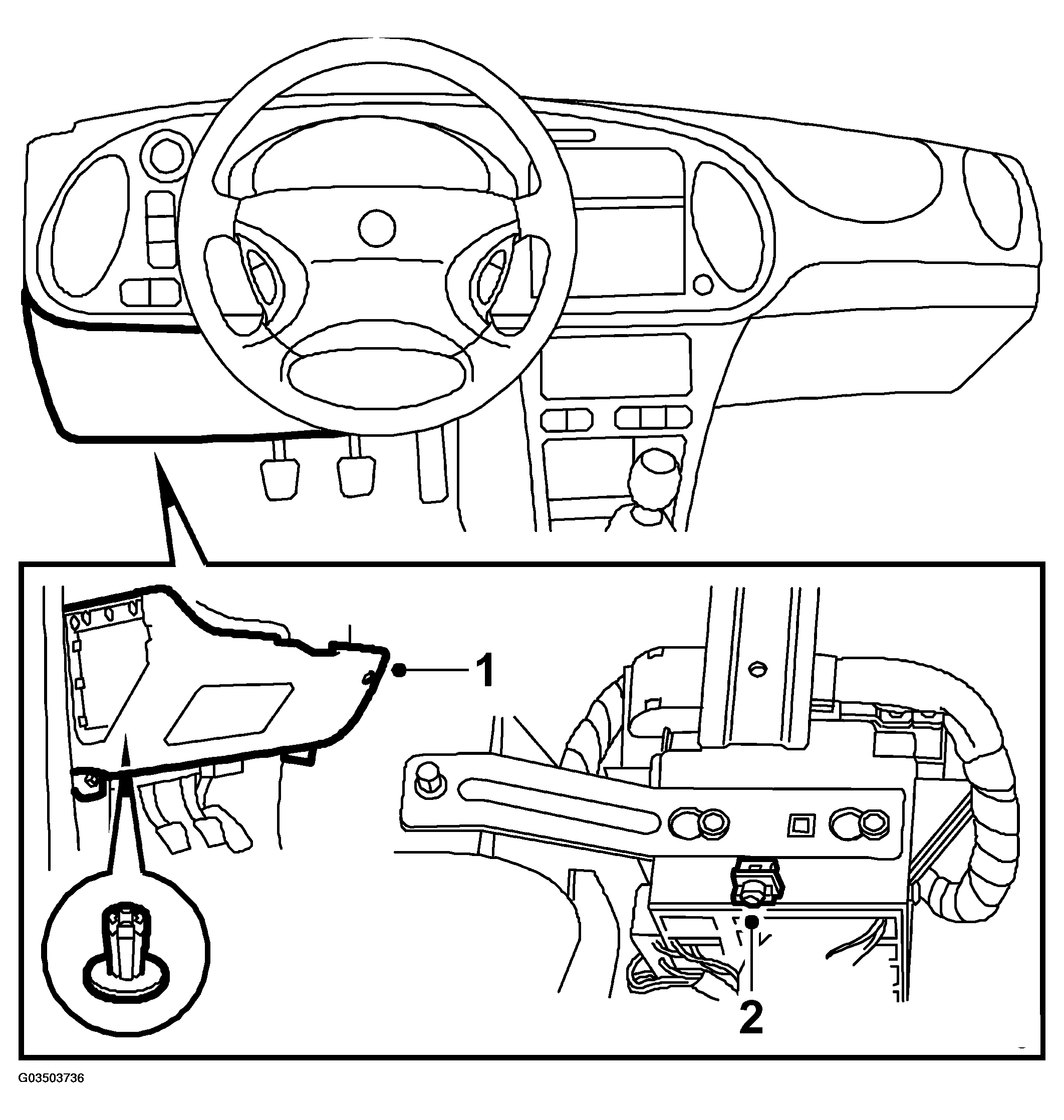

    Fig 1: Illustration For Step 1-2
    G03503736Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the screw securing the relay holder.
  3. Tilt down the relay holder.
  4. Remove the main relay.

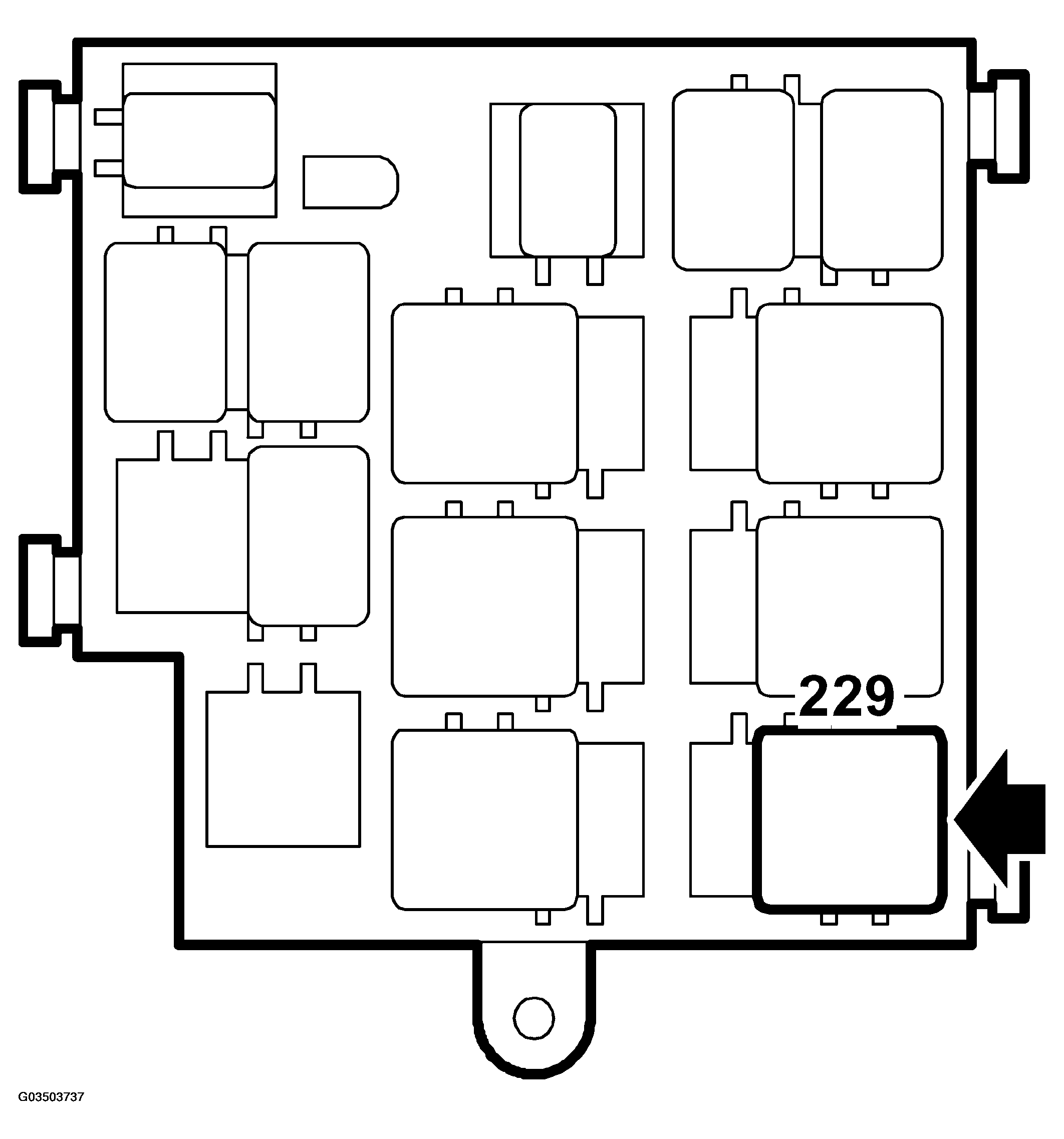

    Fig 2: Identifying Main Relay
    G03503737Courtesy of SAAB-SCANIA OF AMERICA, INC.
