Home › Saab › 2001 › 9-3 Base, 2D Hatchback, Automatic › Repair and Diagnosis › Engine Performance › System › TRIONIC T7 Fuel Control System › Component Location › Heating element, oxygen sensor (271) › Rear

Heating element, oxygen sensor (271): Rear

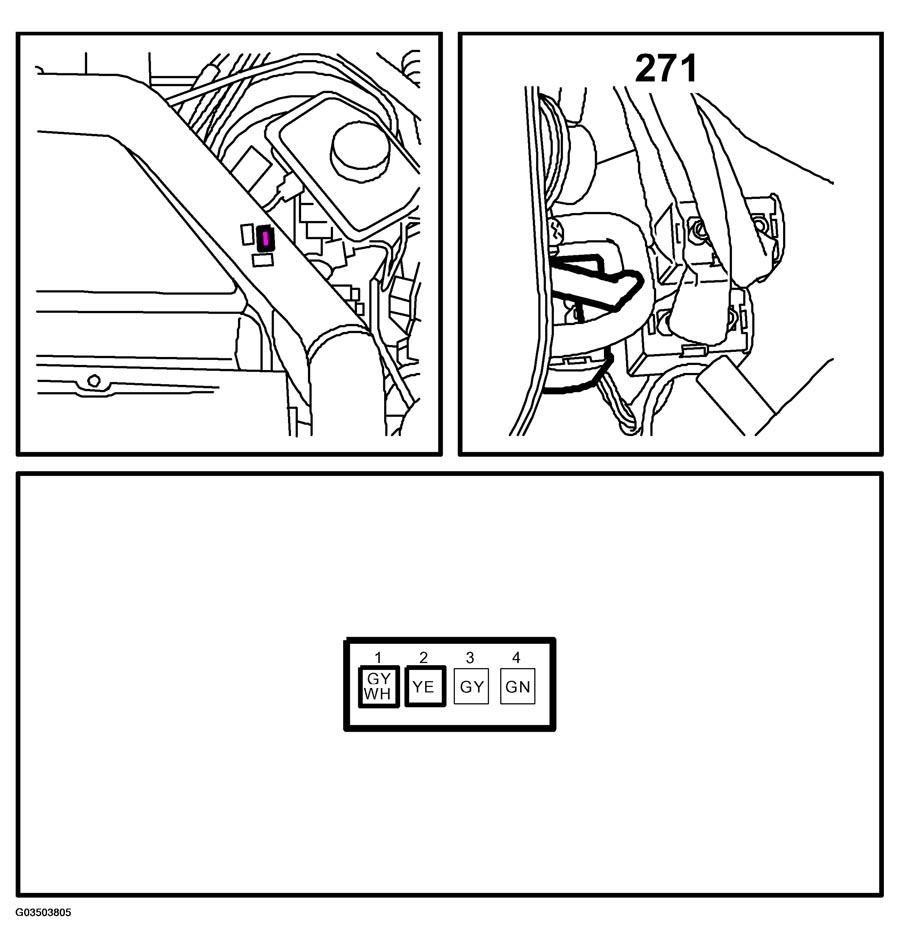

Fig 1: Identifying Oxygen Sensor Heating Element - Rear
G03503805Courtesy of SAAB-SCANIA OF AMERICA, INC.
