Home › Saab › 2001 › 9-3 Base, 2D Hatchback, Automatic › Repair and Diagnosis › Engine Performance › System › TRIONIC T7 Fuel Control System › Component Location › Position sensor, crankshaft (345) › PSG16

Position sensor, crankshaft (345): PSG16

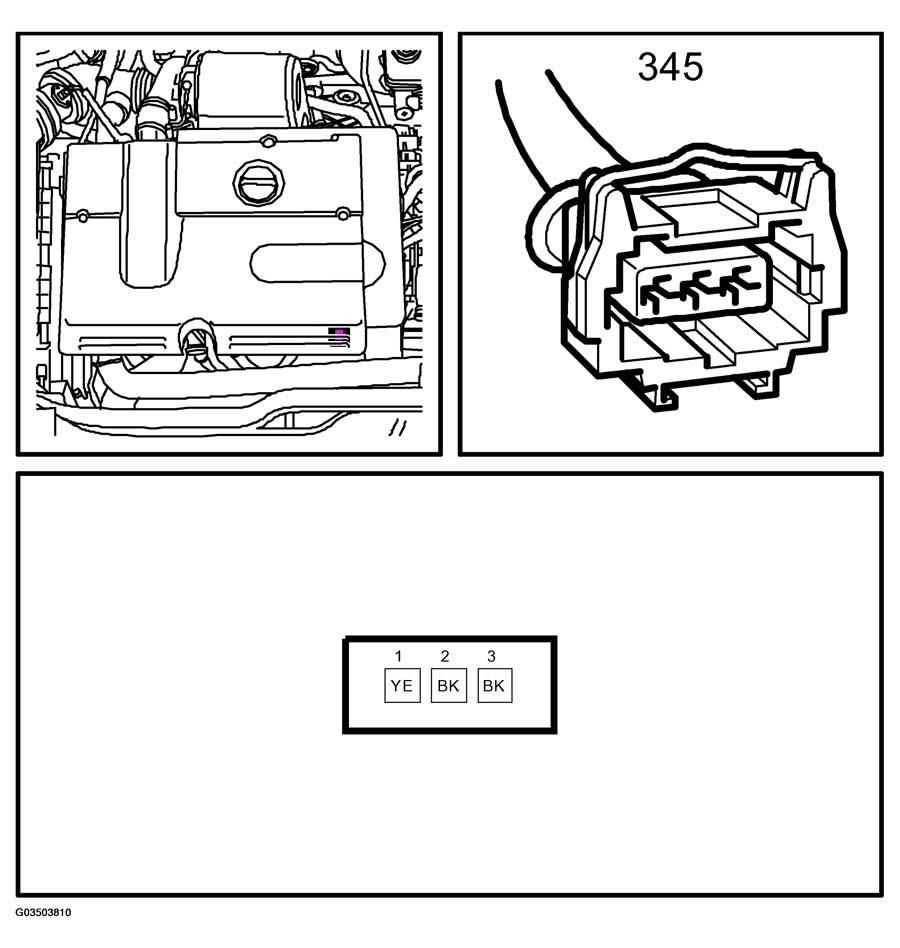

Fig 1: Identifying Crankshaft Position Sensor - PSG16
G03503810Courtesy of SAAB-SCANIA OF AMERICA, INC.
