TRIONIC T7 Fuel Control System
›
Fault diagnosis, fault codes
›
DTC P0102: Mass Air Flow Circuit (Low Input)
›
Notes
DTC P0102: Mass Air Flow Circuit (Low Input): Notes

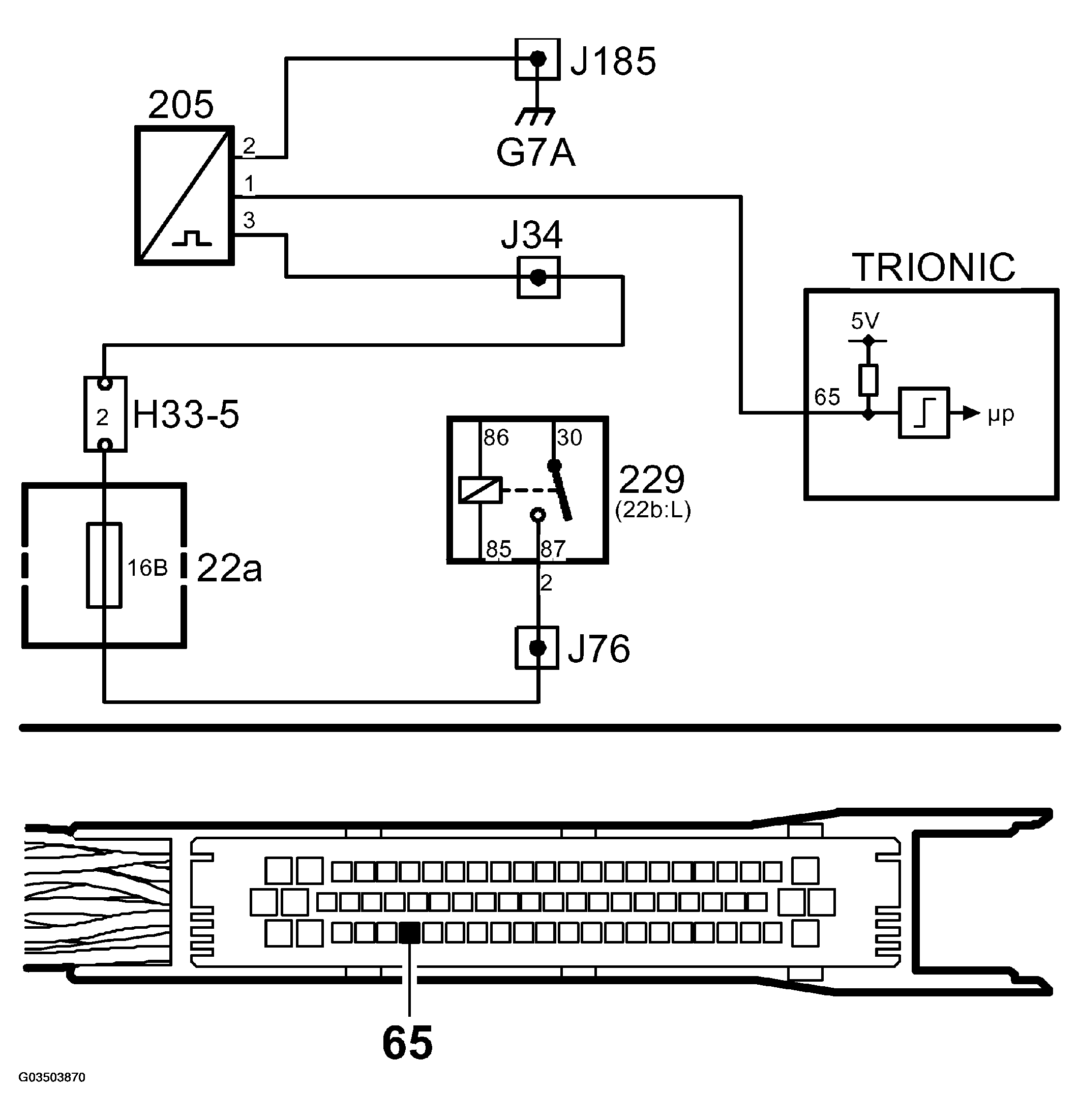

Fig 1: Identifying Mass Air Flow Circuit Diagram - Low Input
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
