TRIONIC T7 Fuel Control System
›
Fault diagnosis, fault codes
›
DTC P0134: O2S Circuit No Activity Detected Sensor 1
›
Notes
DTC P0134: O2S Circuit No Activity Detected Sensor 1: Notes

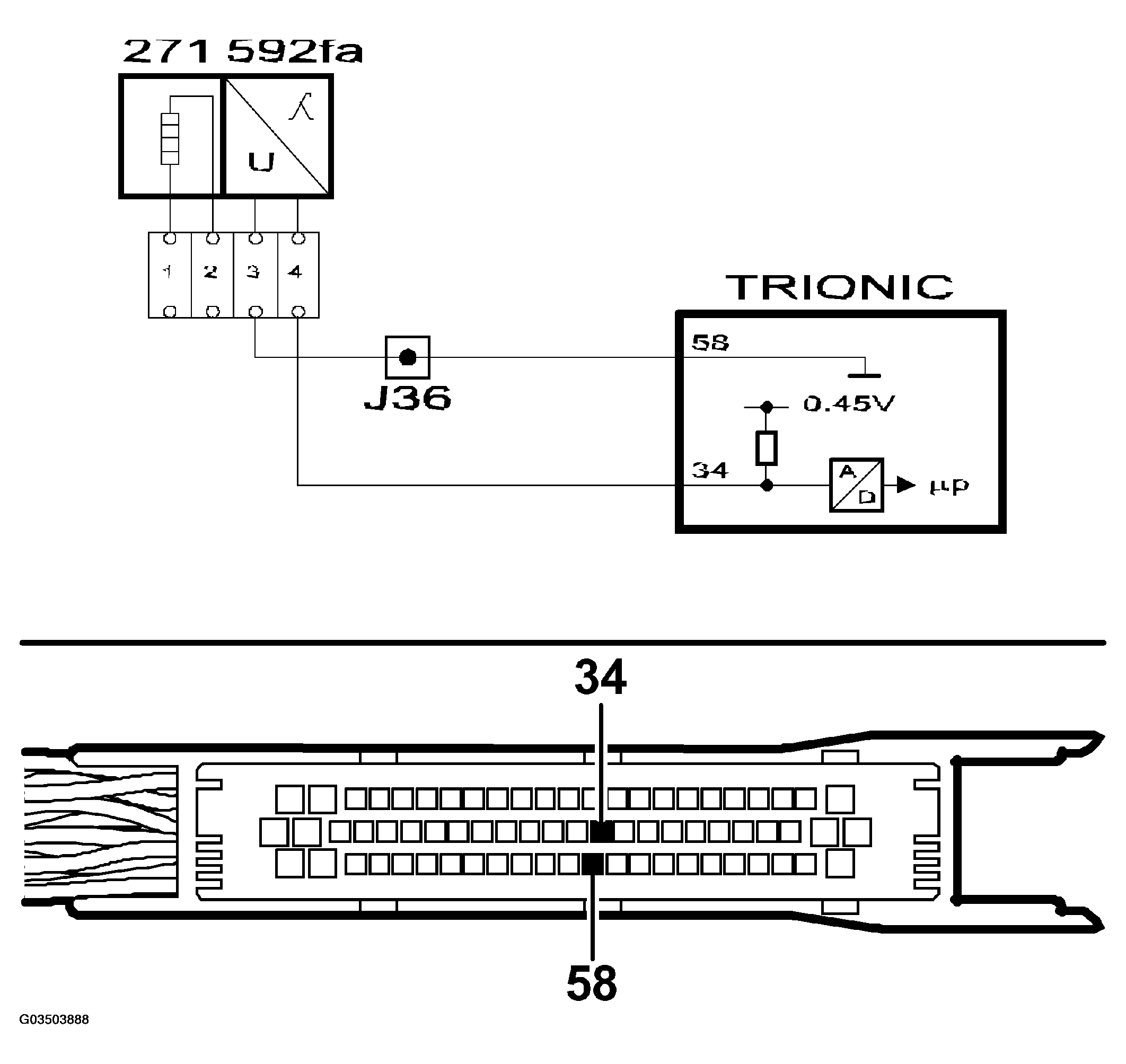

Fig 1: Identifying O2S Circuit Diagram - No Activity Detected - Sensor 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
