TRIONIC T7 Fuel Control System
›
Fault diagnosis, fault codes
›
DTC P1532: Pedal Position Sensor 1 and 2 Circuit Control Module Inputs Shorted to Each other
›
Notes
DTC P1532: Pedal Position Sensor 1 and 2 Circuit Control Module Inputs Shorted to Each other: Notes

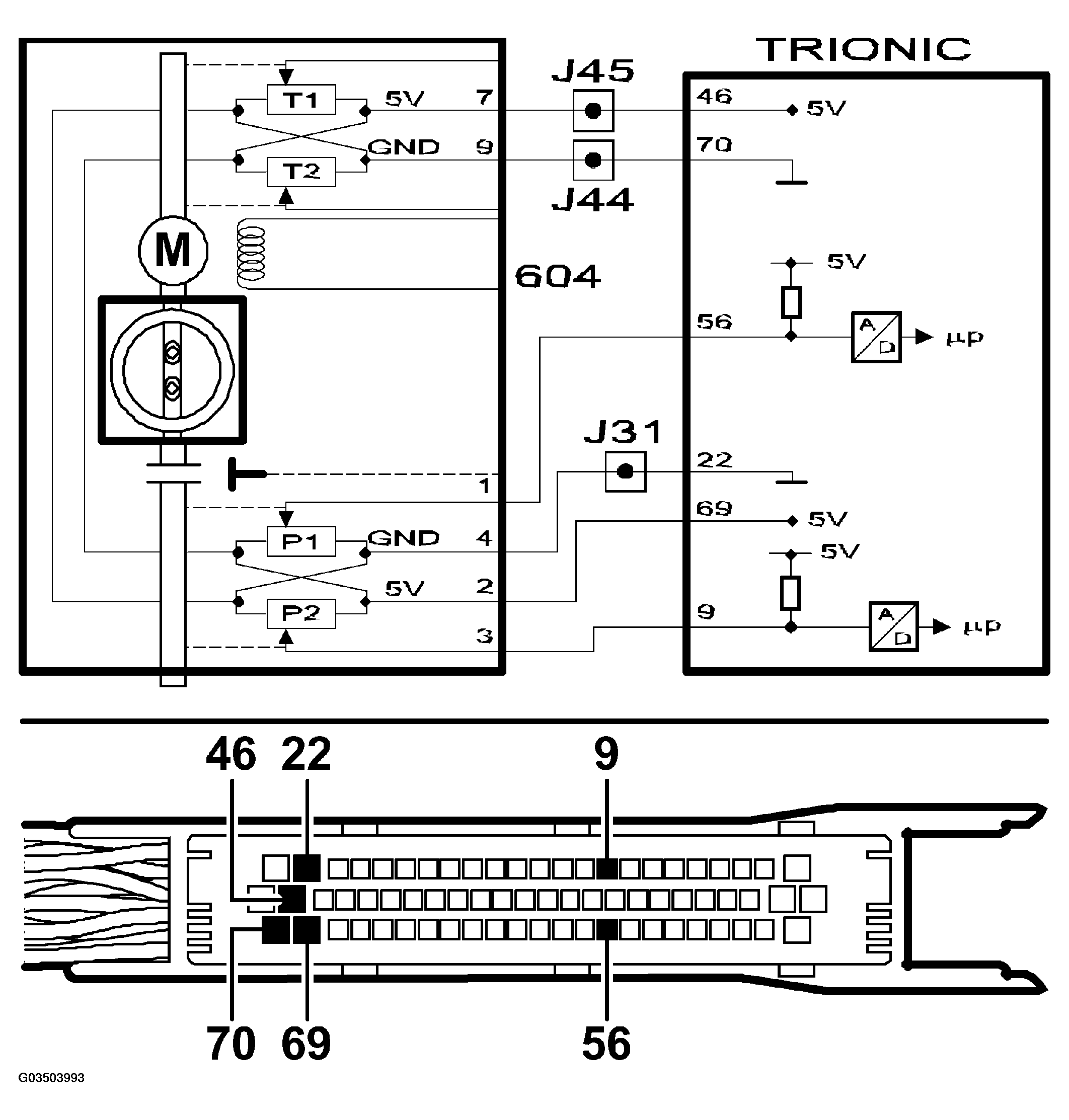

Fig 1: Identifying Pedal Position Sensor 1 And 2 Circuit Diagram - Control Module Inputs Shorted To Each Other
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
