Relay, fuel pump (102)

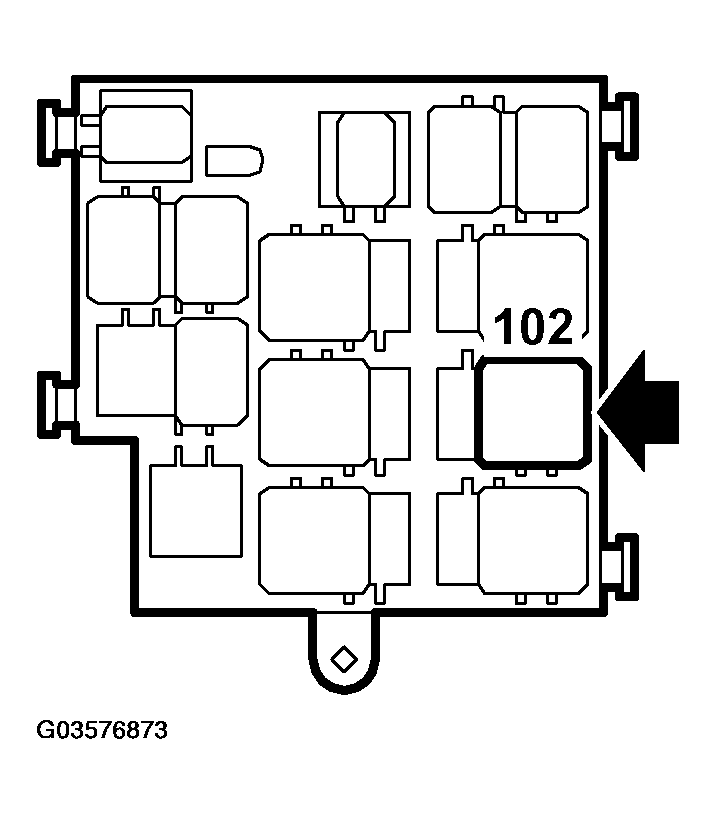

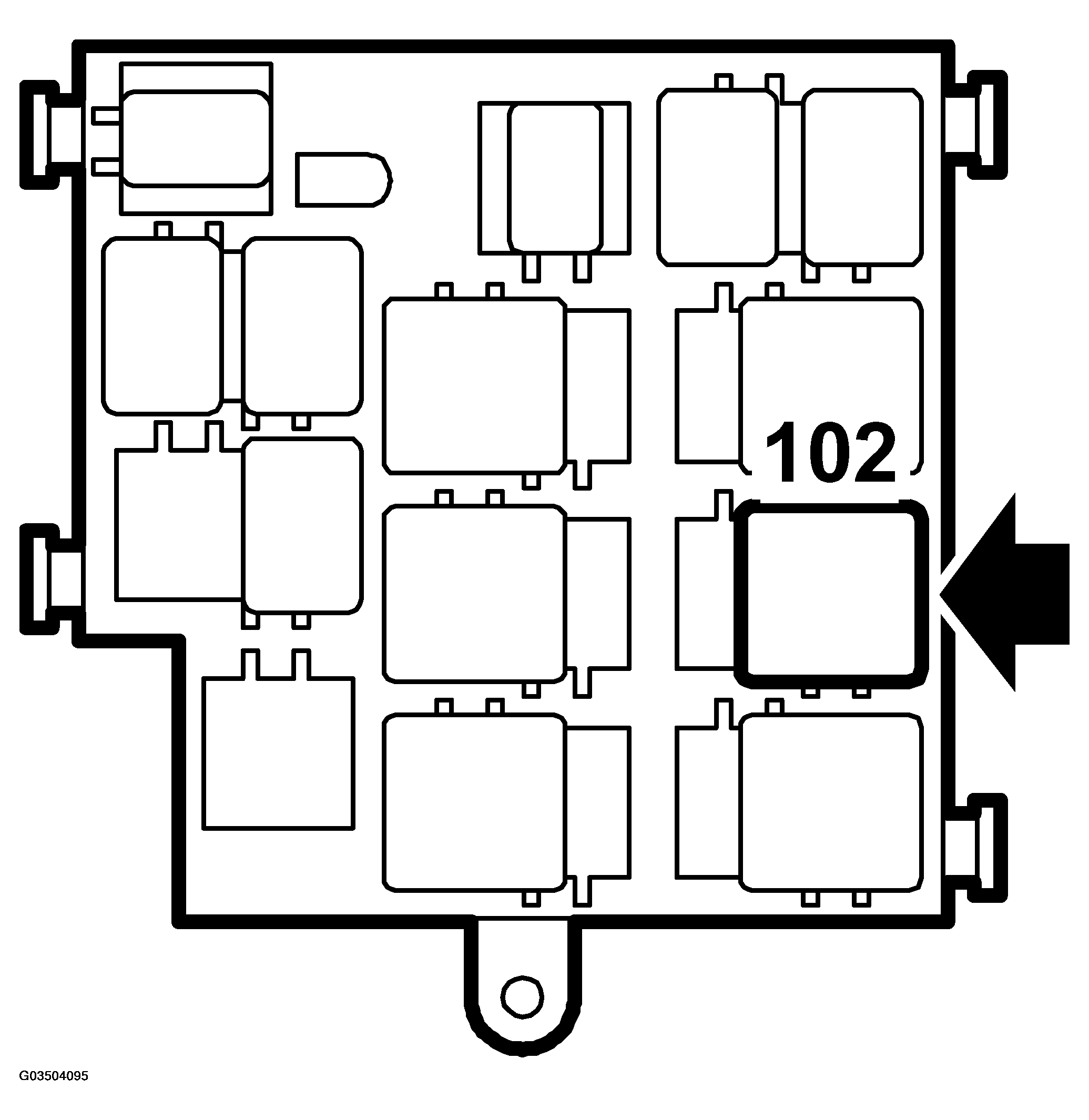

Fig 1: Identifying Fuel Pump Relay

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - FUEL PUMP RELAY

Location		In dashboard main relay board
Resistance, winding at 20 °C (68°F)	Ohms	85+/-5
Nominal control voltage	V	12
Rated current	A	30
