To remove

  1. Undo the knee shield above the pedal bracket

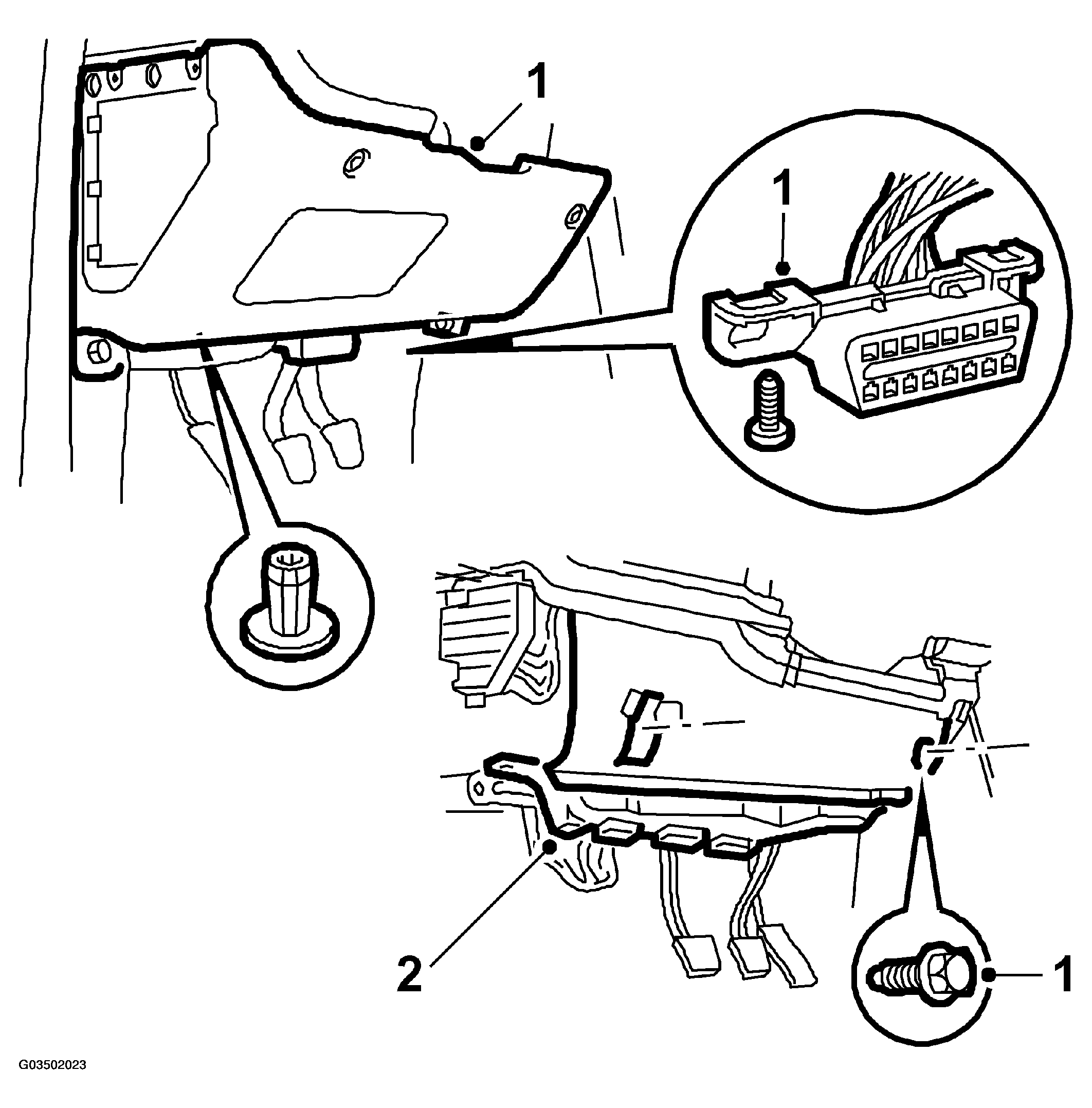

    Fig 1: Illustration For Steps 1-2
    G03502023Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Lift off the air duct for easier access to the relay retainer behind it. (Only LHD)
  3. Undo the screw securing the relay retainer and place it out of the way.

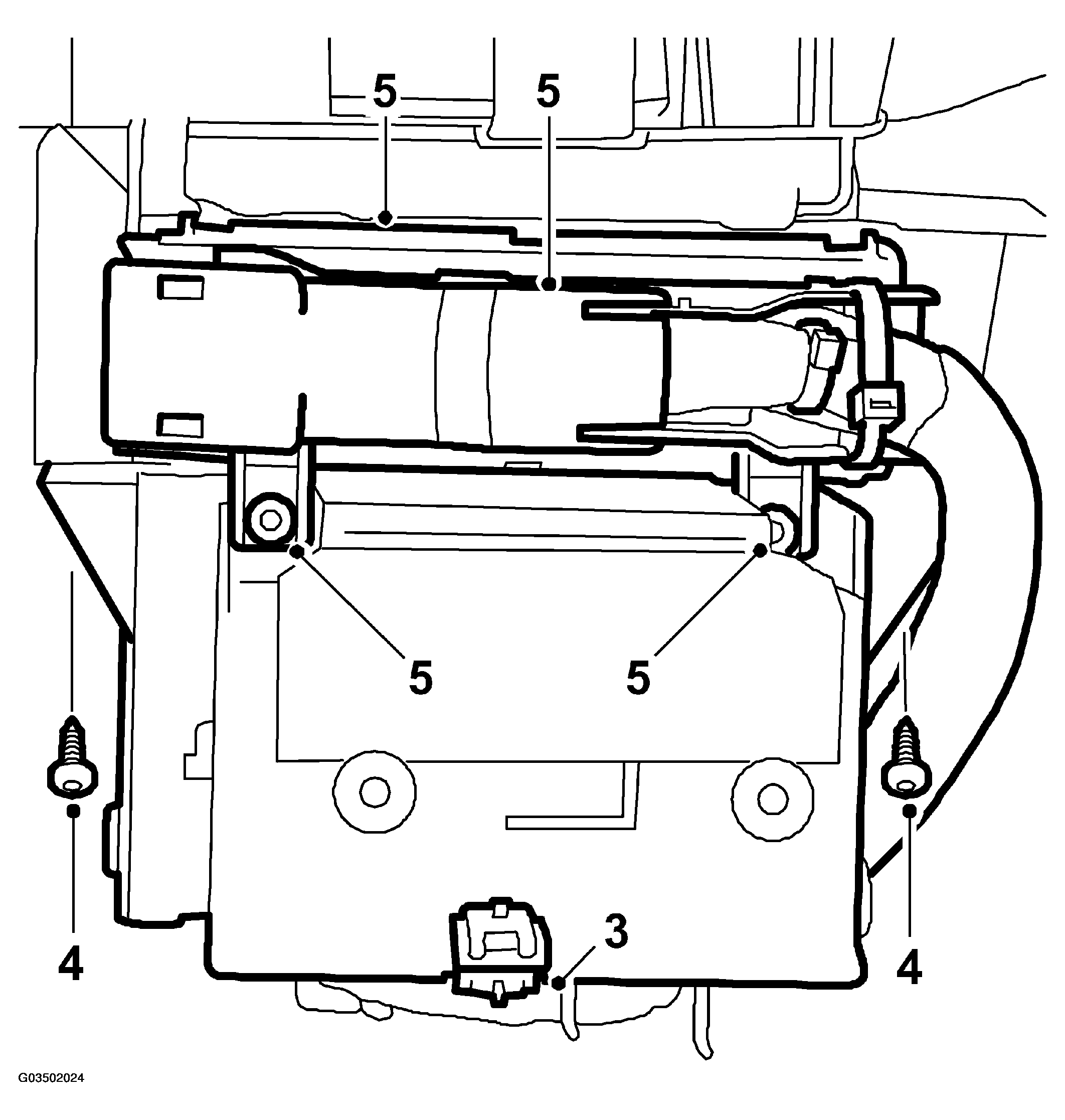

    Fig 2: Illustration For Steps 3-5
    G03502024Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Undo the screws to the bracket on which the control module is mounted.
  5. Unplug the connectors on the DICE control module and remove the screws. Lift off the DICE control module.
