ABS control module (547)

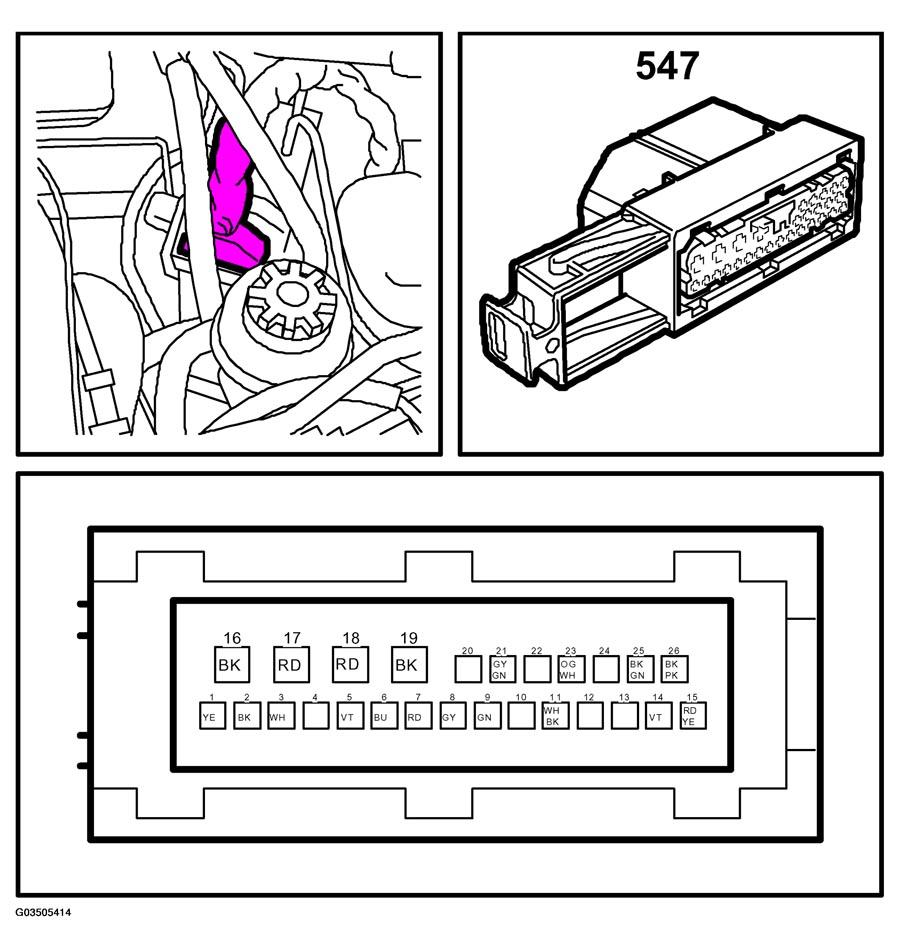

Fig 1: Identifying ABS Control Module Pinouts And Location
G03505414Courtesy of SAAB-SCANIA OF AMERICA, INC.
