Home › Saab › 2001 › 9-3 Base, 2D Hatchback, Standard › Repair and Diagnosis › Brakes › Traction Control › Abs System Version 5.4 - Repair › Component Location › Connector H33-5 › LHD

Connector H33-5: LHD

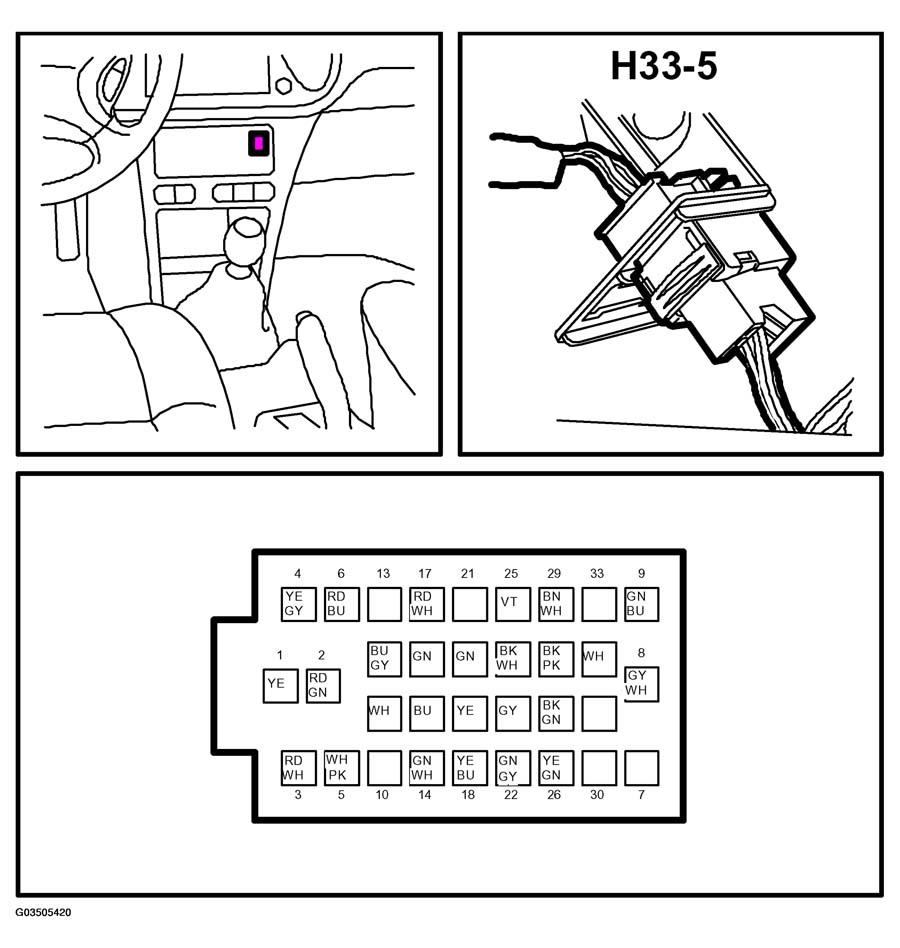

Fig 1: Identifying H33-5 Connector Pinouts And Location (LHD)
G03505420Courtesy of SAAB-SCANIA OF AMERICA, INC.
