Wiring diagram
›
Starting system with immobilizer
›
Notes
Starting system with immobilizer: Notes

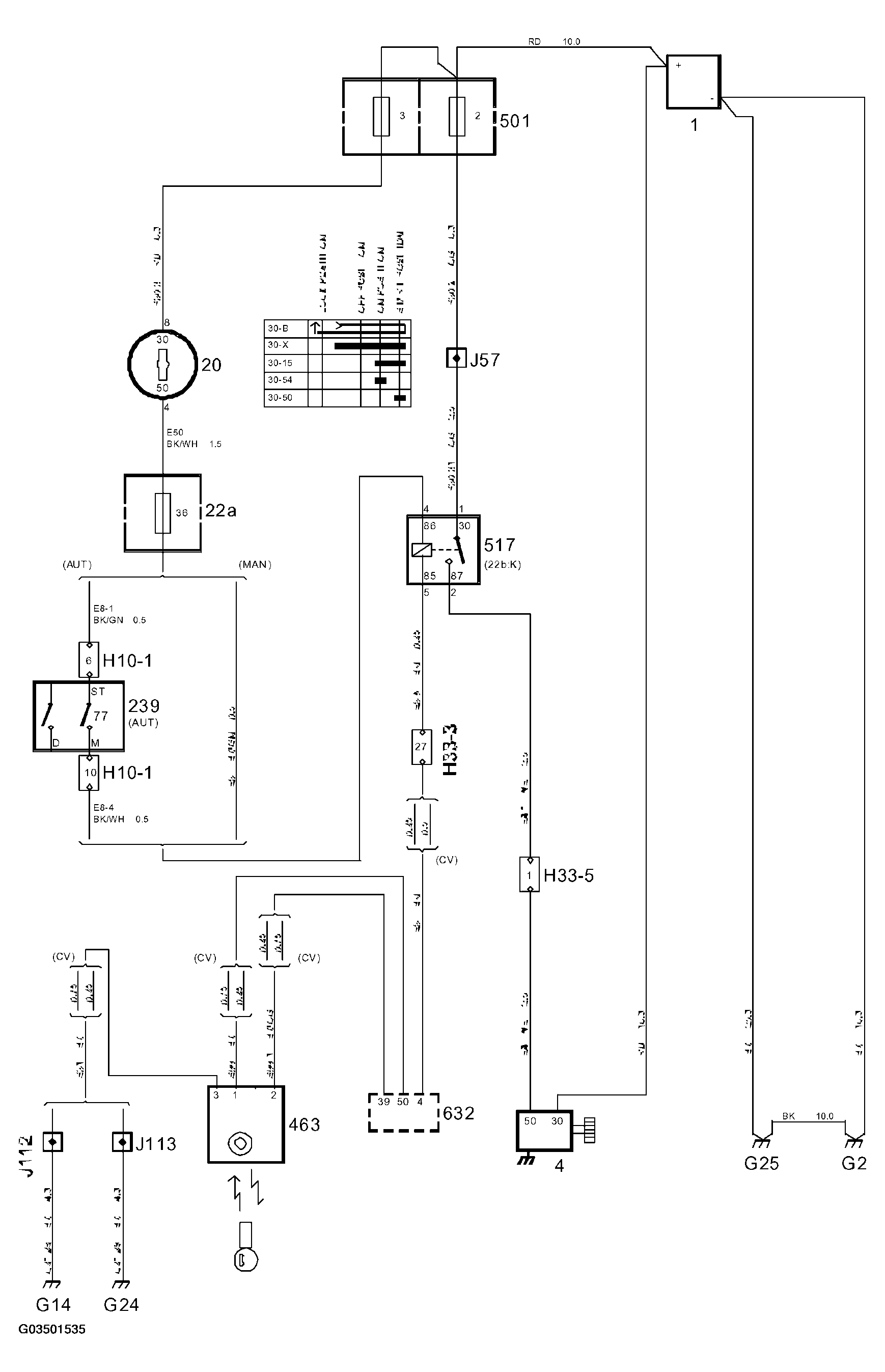

Fig 1: Starting System Wiring Diagram
