To Remove

  1. Open the bonnet.
  2. Put protection on the wings.
  3. Remove the upper engine cover.

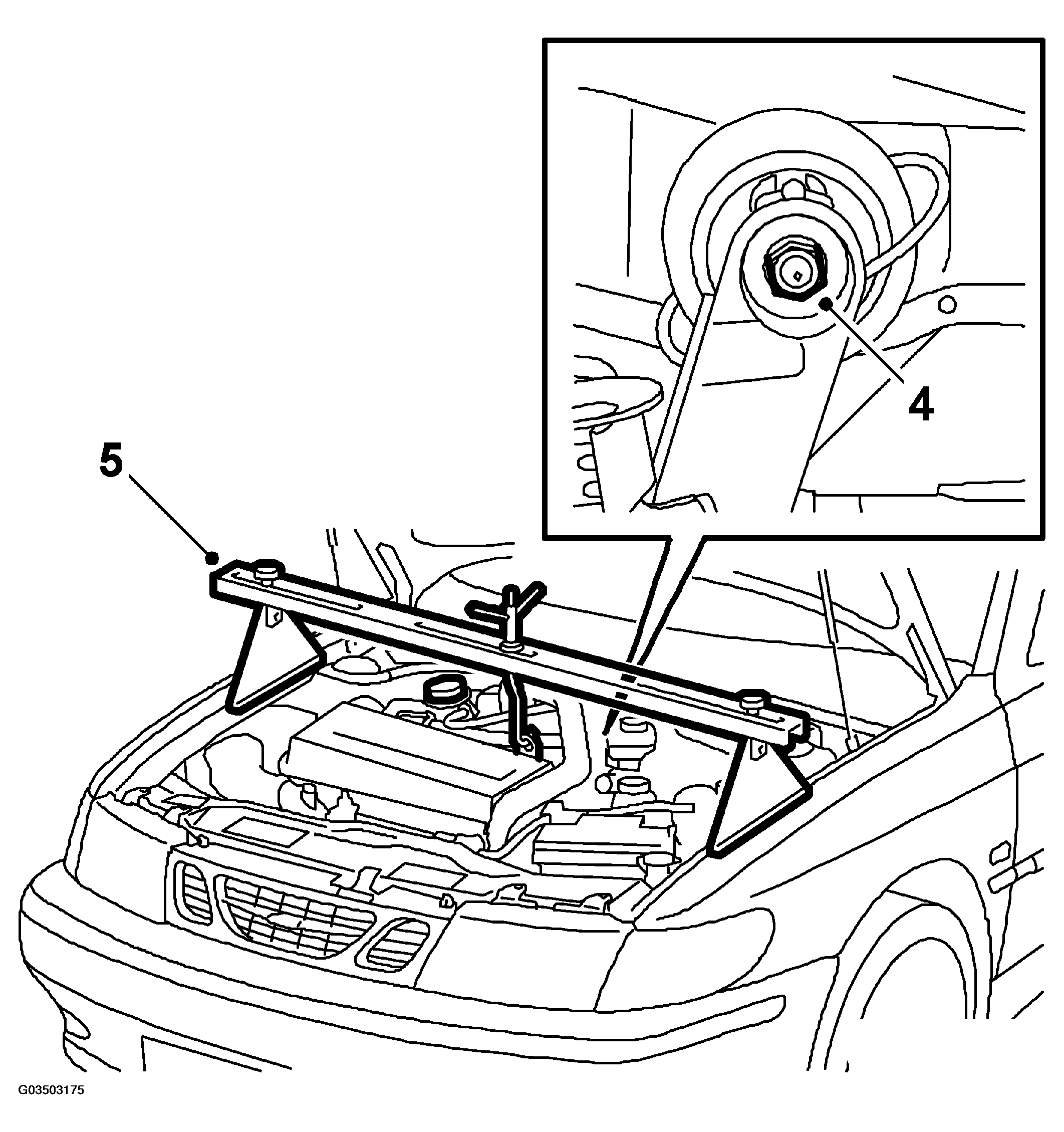

    Fig 1: Illustration For Steps 4-5
    G03503175
  4. Remove the bolts retaining the intake manifold.
  5. Fit 83 94 850 Lifting beam.
  6. Take up the weight of the engine.
  7. Raise the car.
  8. Dismantle the selector lever link and remove the mounting pad nut.

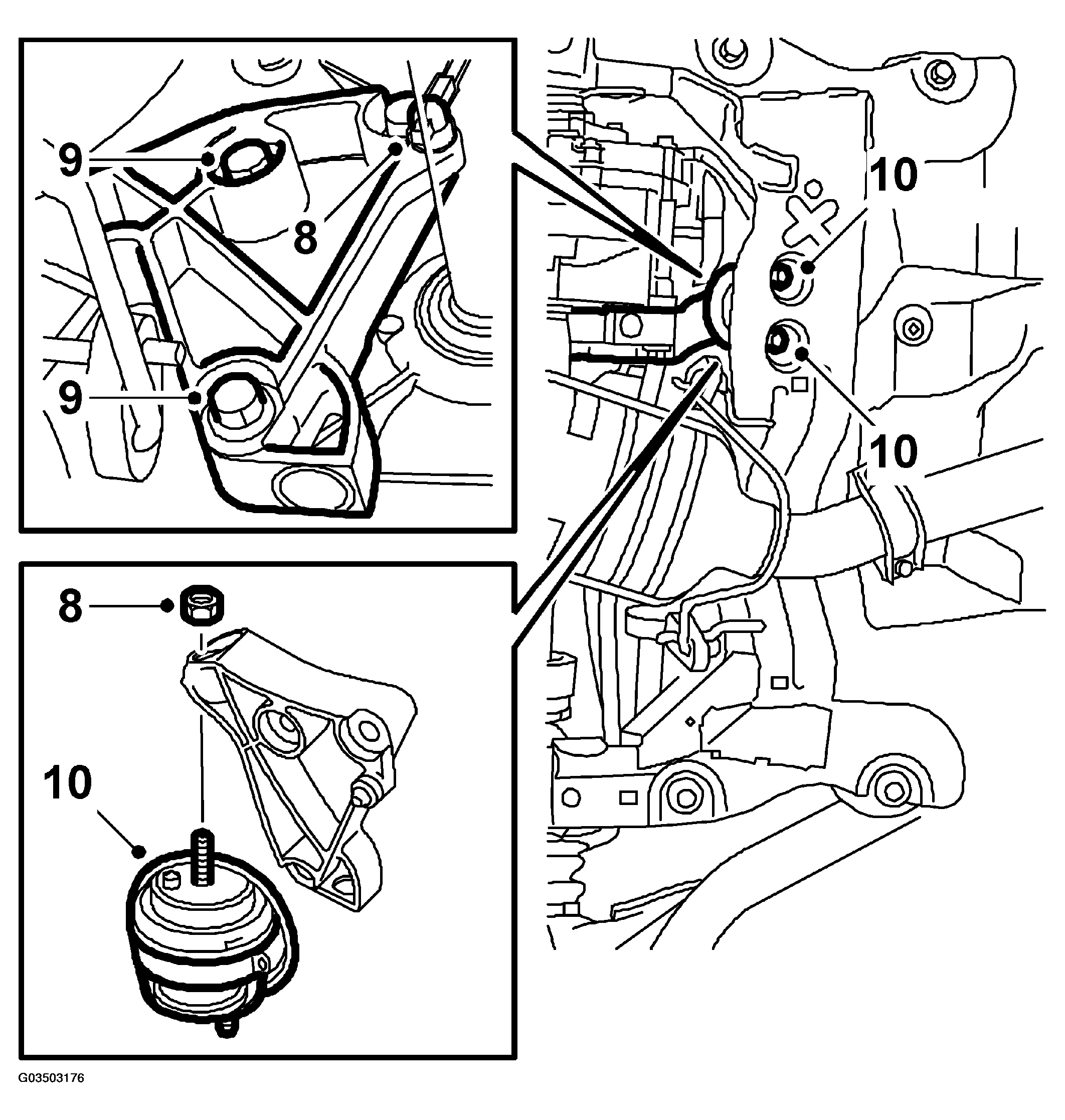

    Fig 2: Illustration For Steps 8-9-10
    G03503176
  9. Undo and remove the bracket from the gearbox.
  10. Undo and remove the engine mounting pad from the subframe.
