Drive-belt tension

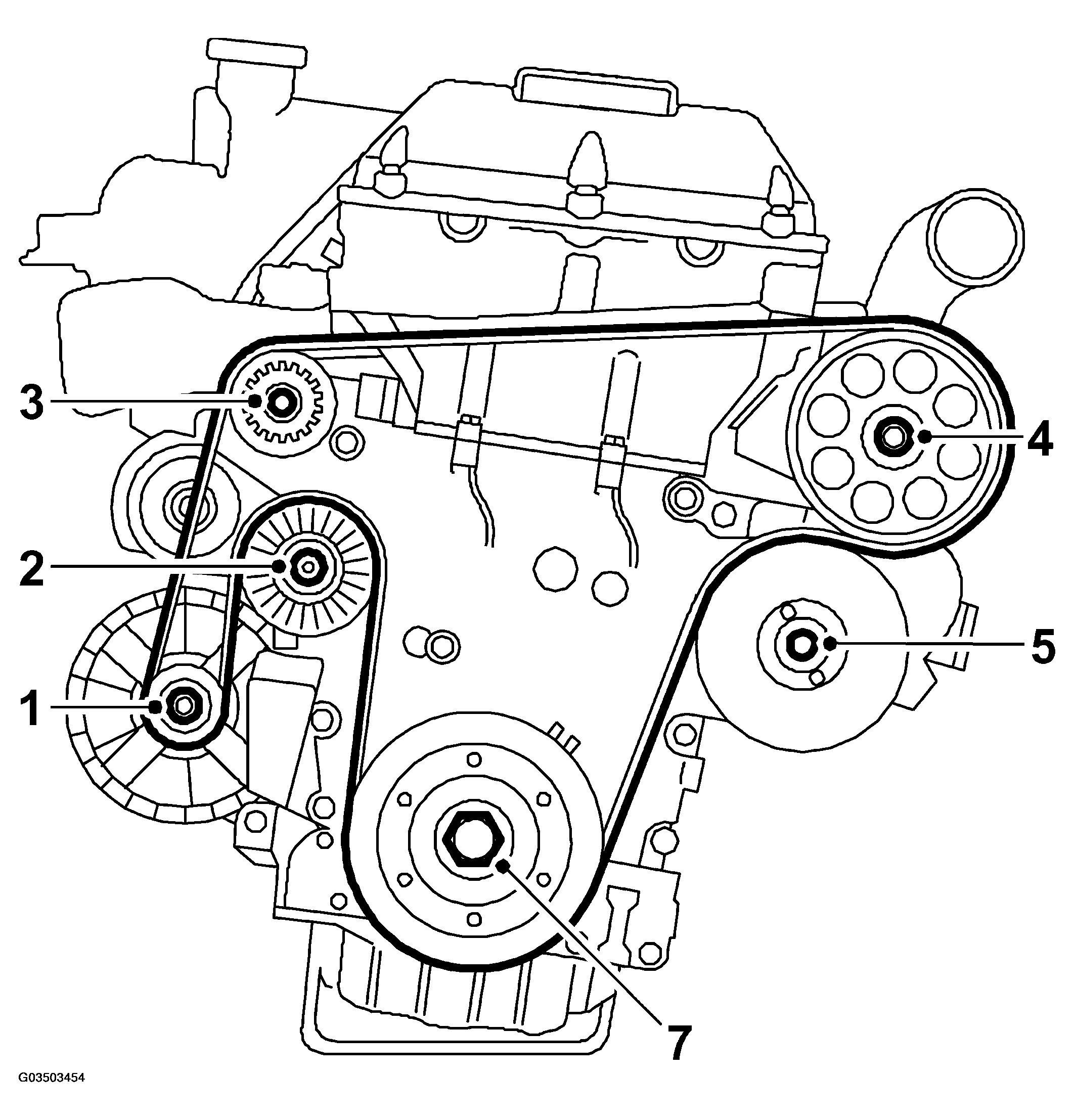

Fig 1: Illustration For Steps 1-2-3-4-5-7

G03503454

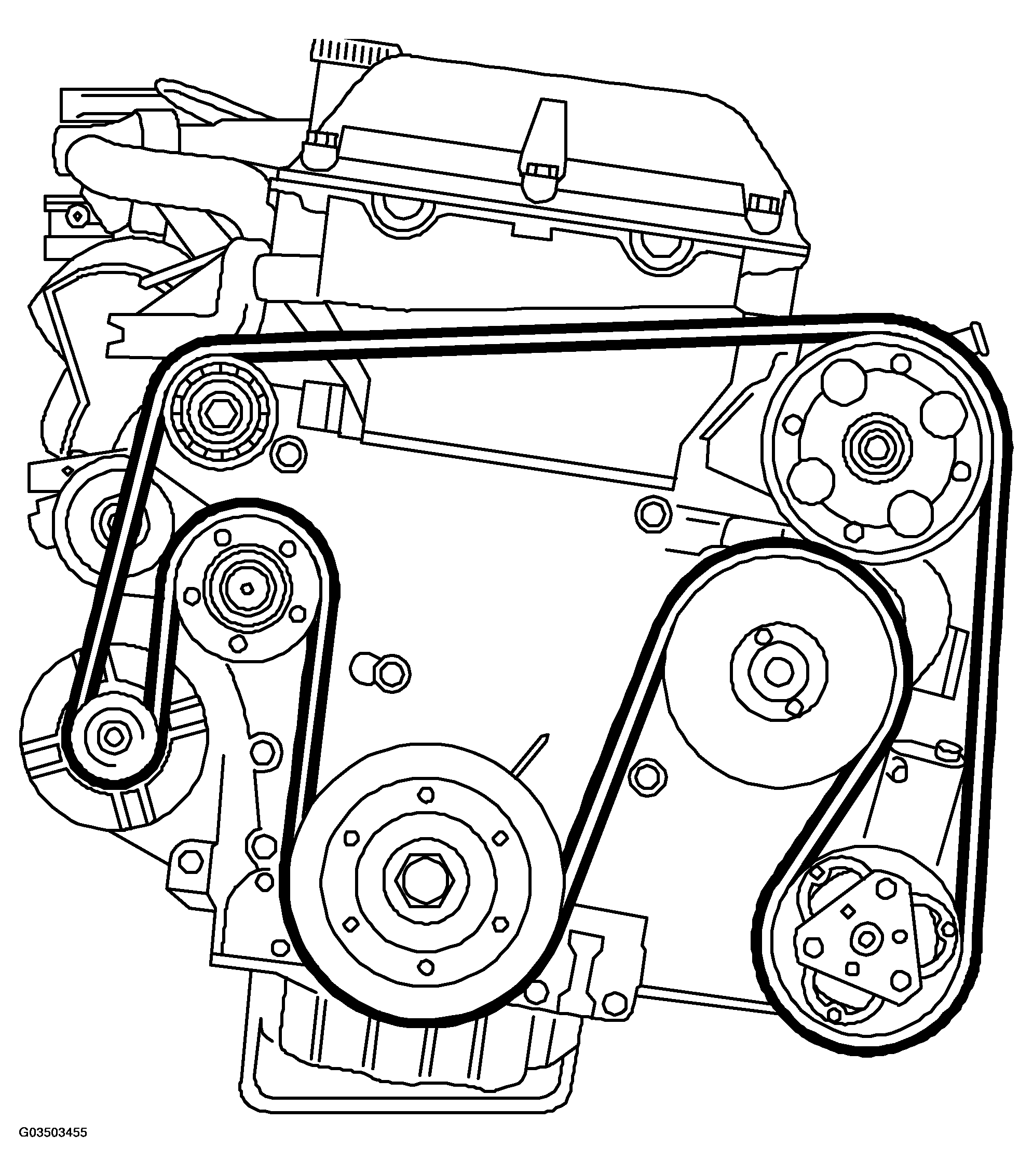

Fig 2: View Of Drive-Belt Arrangement

G03503455

DRIVE-BELT TENSION SPECIFICATIONS

Tension when checking

N (lbf)

315 +/- 25 (70.4 +/- 5.6)
