Injectors (206)

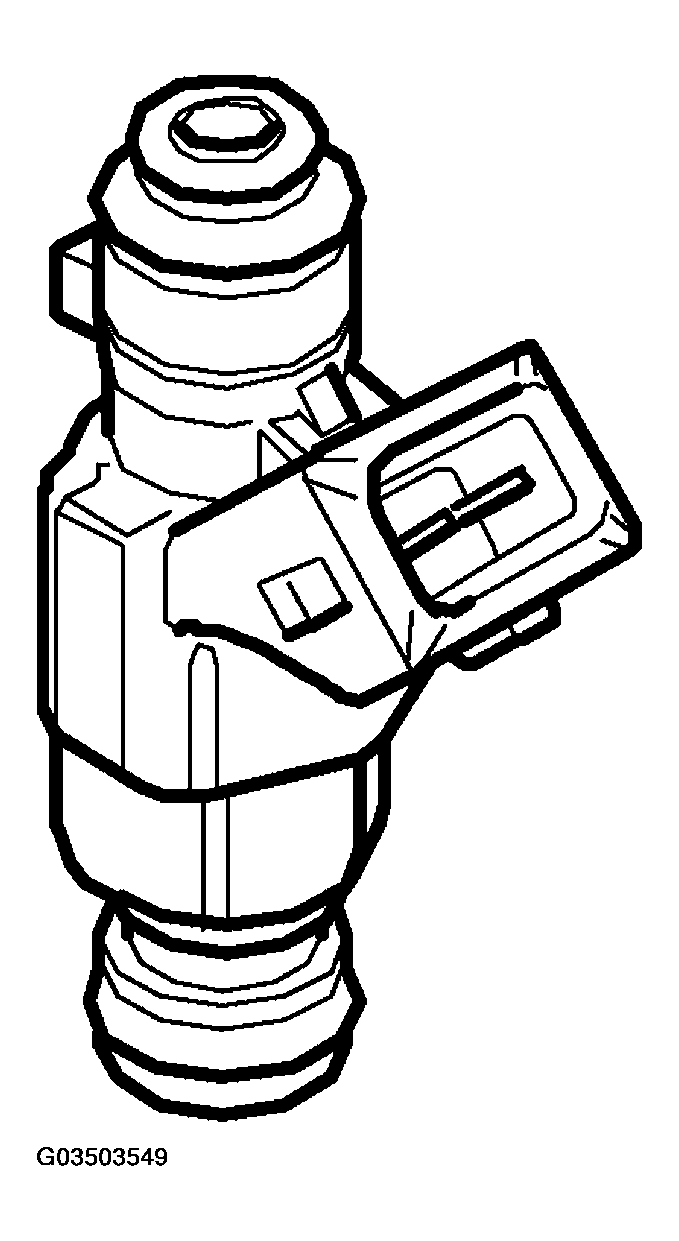

Fig 1: View Of Injectors

INJECTORS SPECIFICATIONS

Location		On top of intake manifold
Engine type		B205E/L/R, B235R
Type		Bosch EV6E, brown
Version		4-hole
Flow capacity	ml/ 30 s	176 +/- 10
Maximum permissible difference between injectors	ml	20
