Home › Saab › 2001 › 9-3 Base, 2D Hatchback, Standard › Repair and Diagnosis › Engine Performance › System › TRIONIC T7 Fuel Control System › Fault diagnosis, fault codes › DTC P0103: Mass Air Flow Circuit (High Input) › Notes

DTC P0103: Mass Air Flow Circuit (High Input): Notes

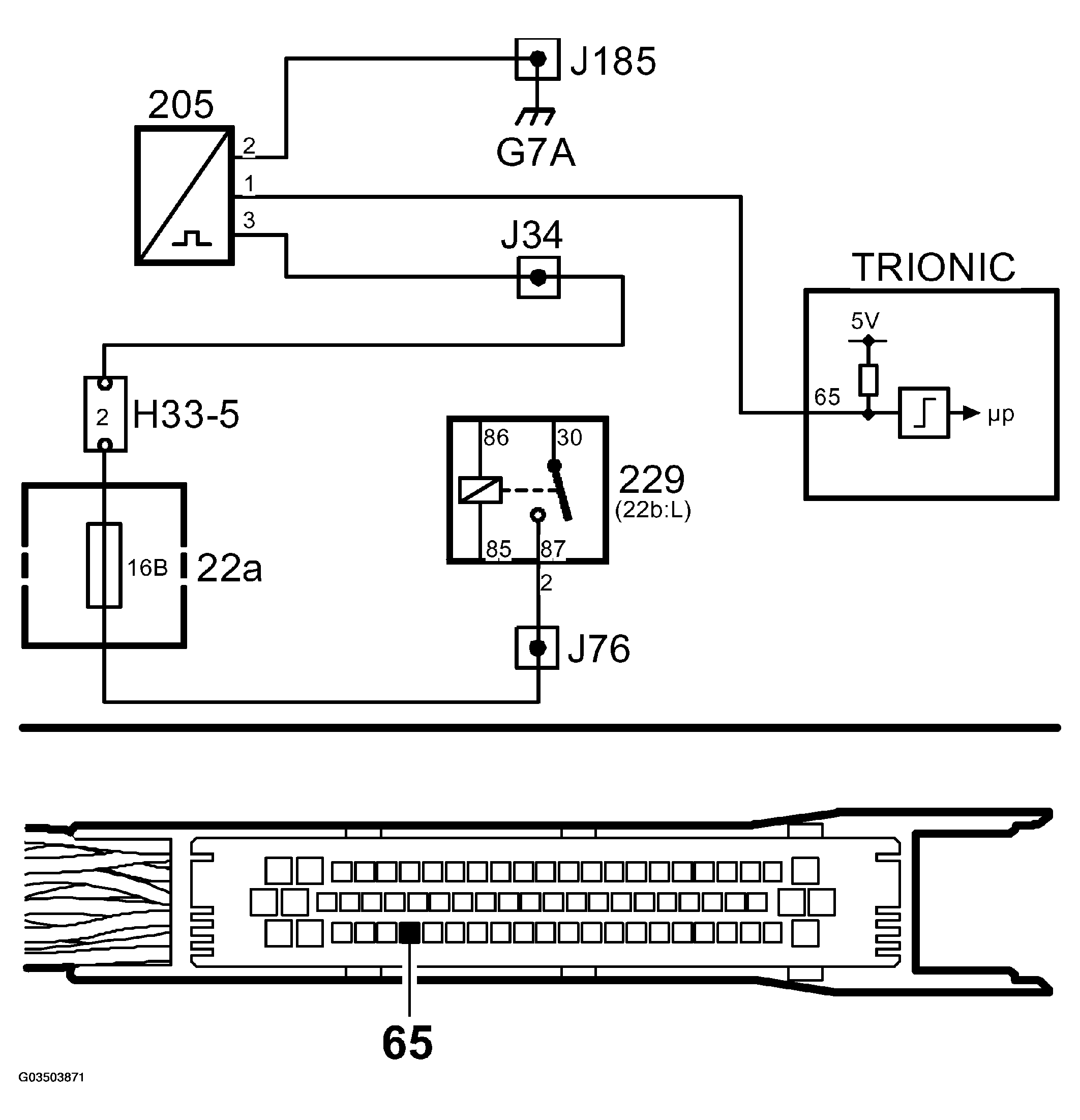

Fig 1: Identifying Mass Air Flow Circuit Diagram - High Input
G03503871Courtesy of SAAB-SCANIA OF AMERICA, INC.
