Power steering pump, petrol engine

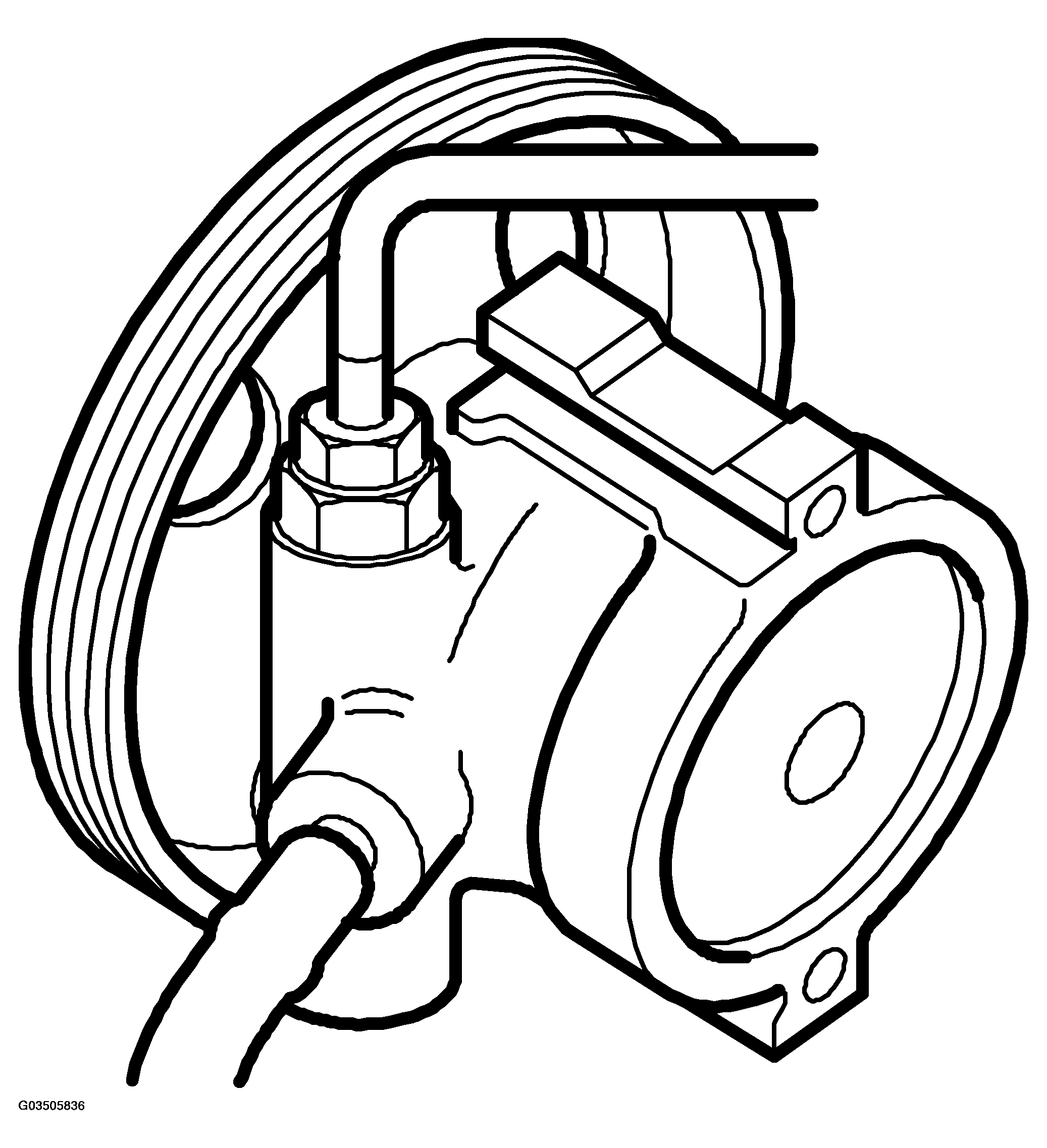

Fig 1: View Of Power Steering Pump (Petrol Engine)
G03505836Courtesy of SAAB-SCANIA OF AMERICA, INC.
POWER STEERING PUMP SPECIFICATIONS (PETROL ENGINE)

Make   Saginaw
Type   Vane
Max. pressure MPa (bar) 10 (100)
Max. flow l/min 6.0
