Home › Saab › 2001 › 9-3 Base, 2D Hatchback, Standard › Repair and Diagnosis › Steering › Steering Column Assembly › Adjustment - Replacements › Steering wheel › To remove

To remove

WARNING: Read the safety and handling instructions for the Airbag (SRS) before starting work.

see AIR BAG SAFETY PRECAUTIONS .

IMPORTANT: Ensure the wheels are pointing straight ahead before dismantling begins.
  1. Turn the ignition to OFF.
  2. Remove the airbag from the steering wheel, 2 plugs and screws.

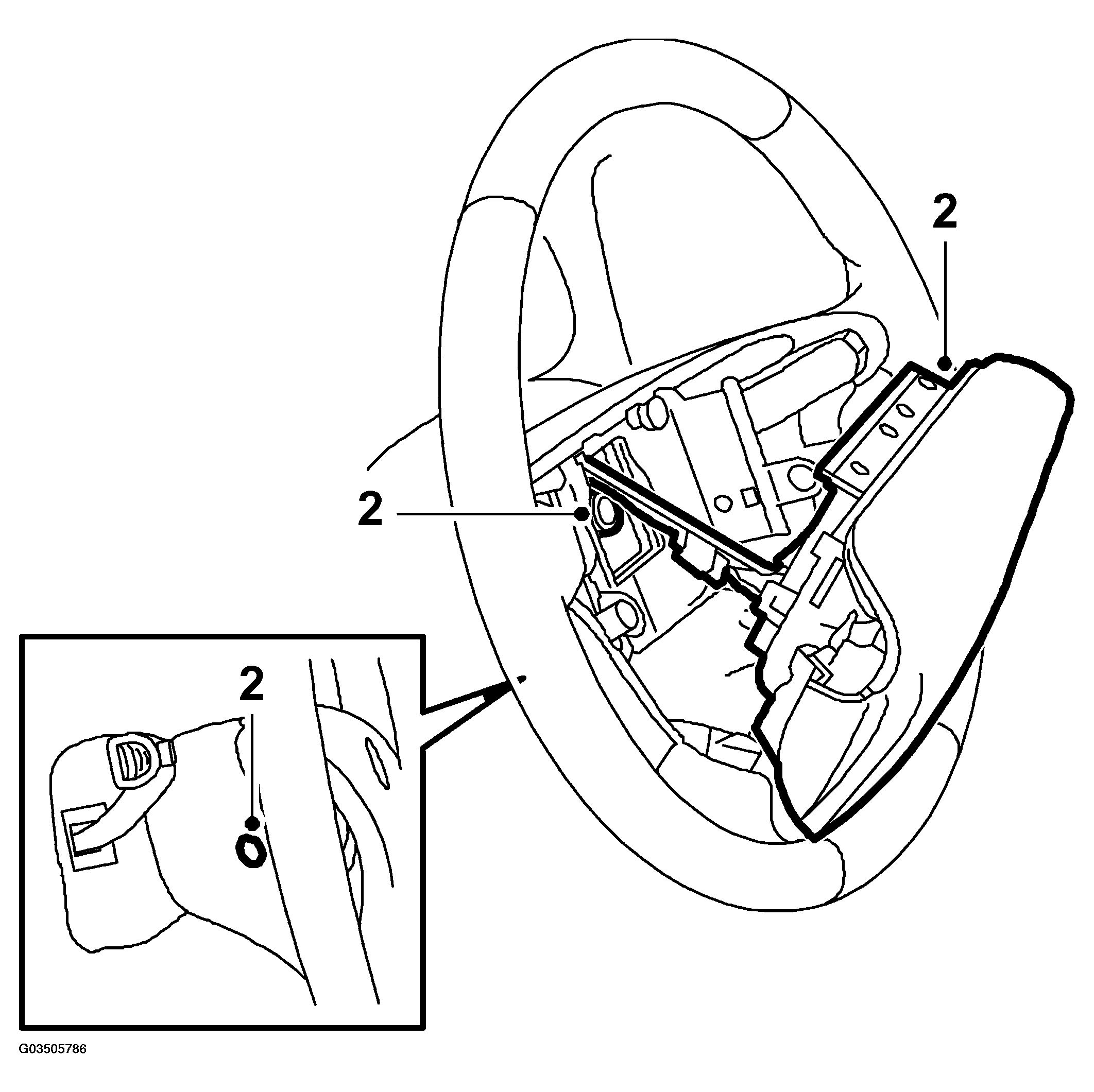

    Fig 1: Illustration For Step 2
    G03505786Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Lift out the airbag and unplug the connector.
    IMPORTANT: The steering wheel often comes loose suddenly from the cone and there is a risk that the contact roller and leads can fasten to the steering wheel and be damaged.
  4. Undo the steering wheel nut but leave it on the last few threads. Pull the steering wheel to this point.
    WARNING: Never  use the steering column adjustment to knock loose the steering wheel, as this will damage the impact joint.
  5. Remove the nut and carefully lift off the steering wheel.
