Suspension arm

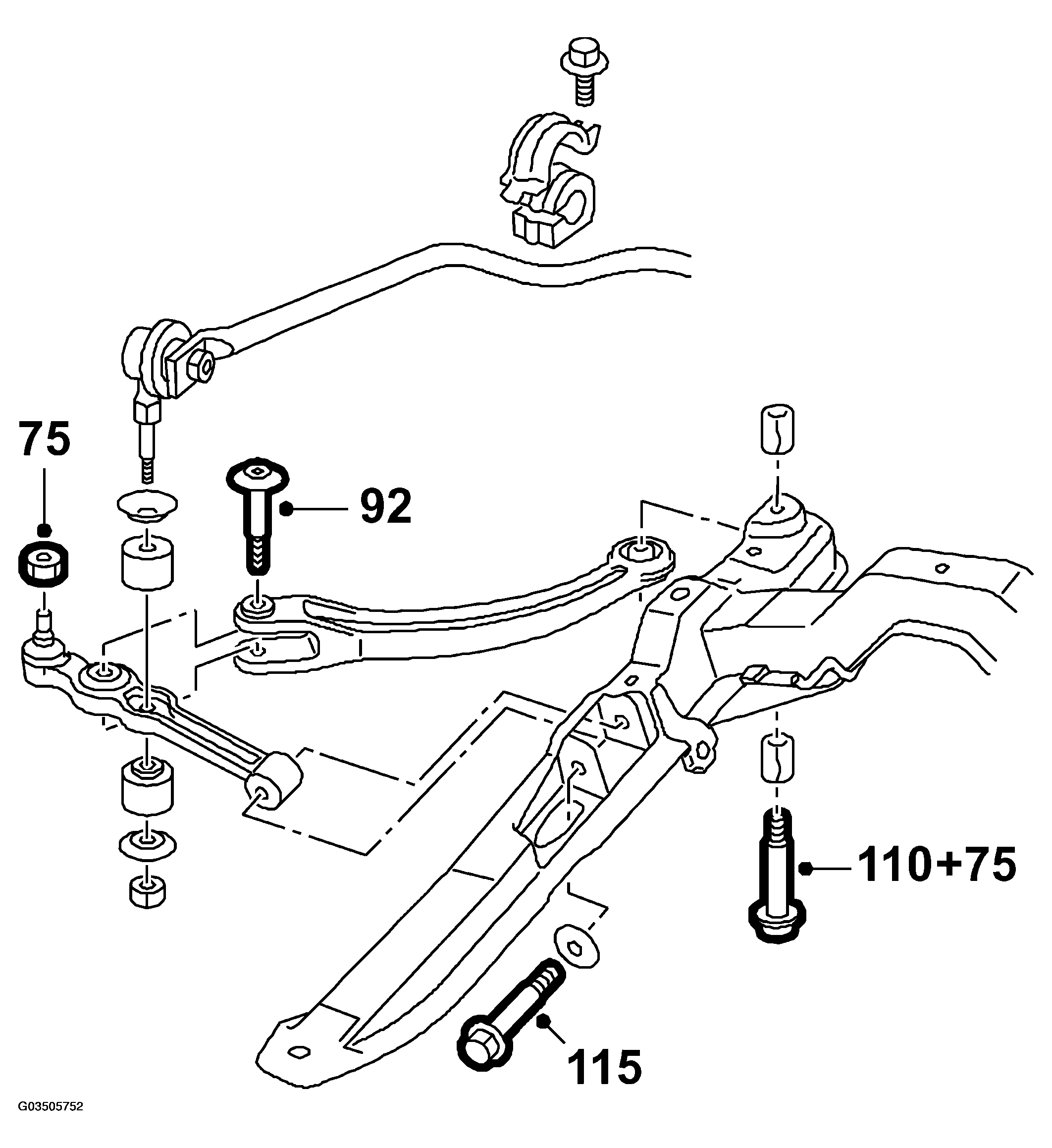

TECHNICAL DATA - SUSPENSION ARM
| Rear mounting of stanchion in subframe | 110 N.m +75° | 81 lbf ft +75° |
| Ball joint, steering swivel member | 75 N.m | 55 lbf ft |
| Stanchion mounting in suspension arm | 92 N.m | 68 lbf ft |
| Suspension arm mounting in subframe (tighten when all four wheels are on the ground) | 115 N.m | 85 lbf ft |
NOTE:
There must not be any visible play in the lower ball joint with unladen suspension.
