Track-rod ends

1. Track rod with inner rubber bush

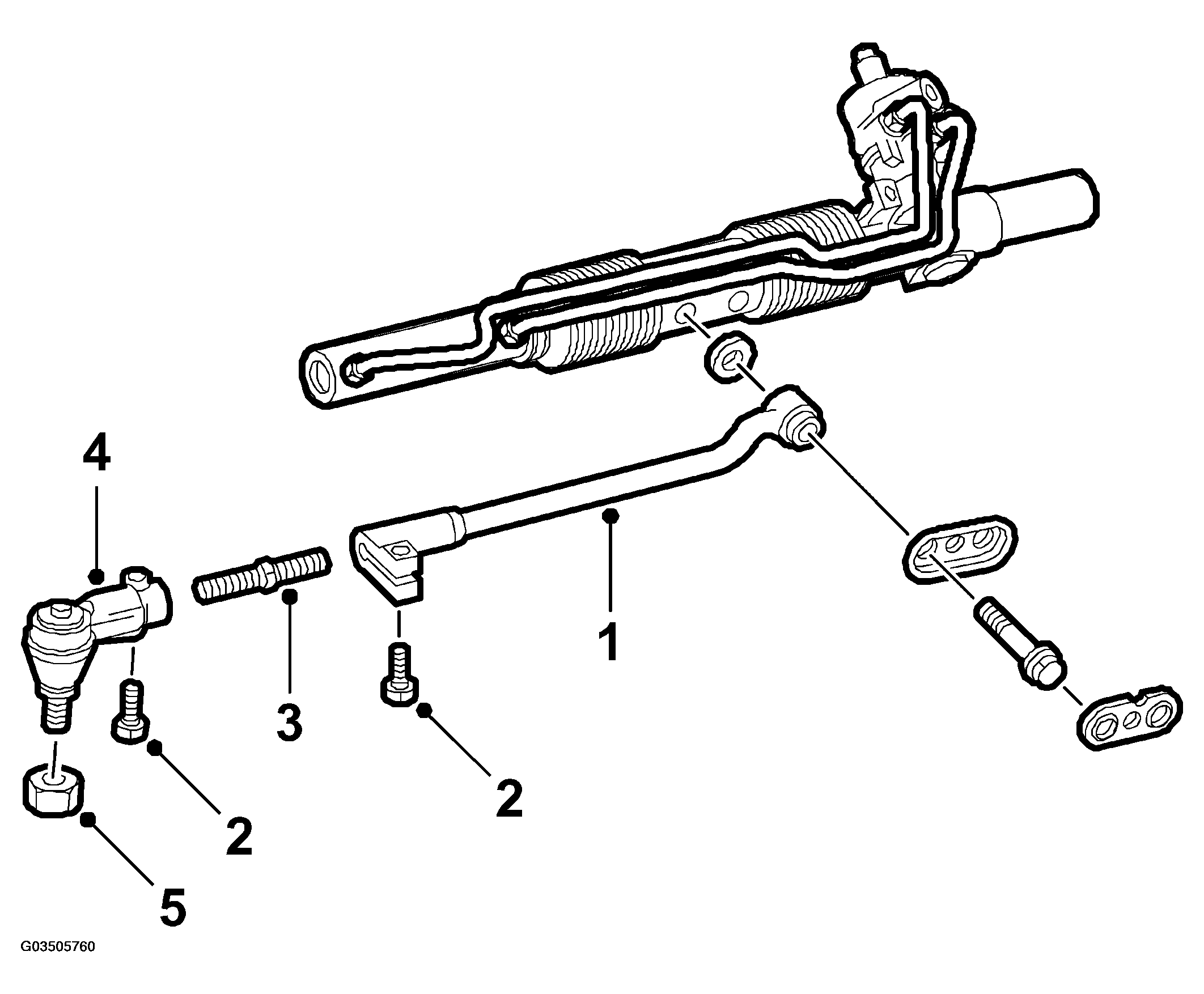

   Fig 1: Illustration For Steps 1-5

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Lock bolt
3. Adjusting screw
4. Track rod end
5. Locknut

The track rods are bolted to the middle of the steering gear through rubber bushings.

The track-rod ends are fastened to the track rods on each side with a left/right-hand threaded screw for adjusting the toe-in.

Each track-rod end is secured to the steering arm of the steering swivel member with a self-locking nut.

The track-rod ends cannot be dismantled but are self-adjusting to compensate for moderate wear.
