Control module, TCM for T7 (502b)

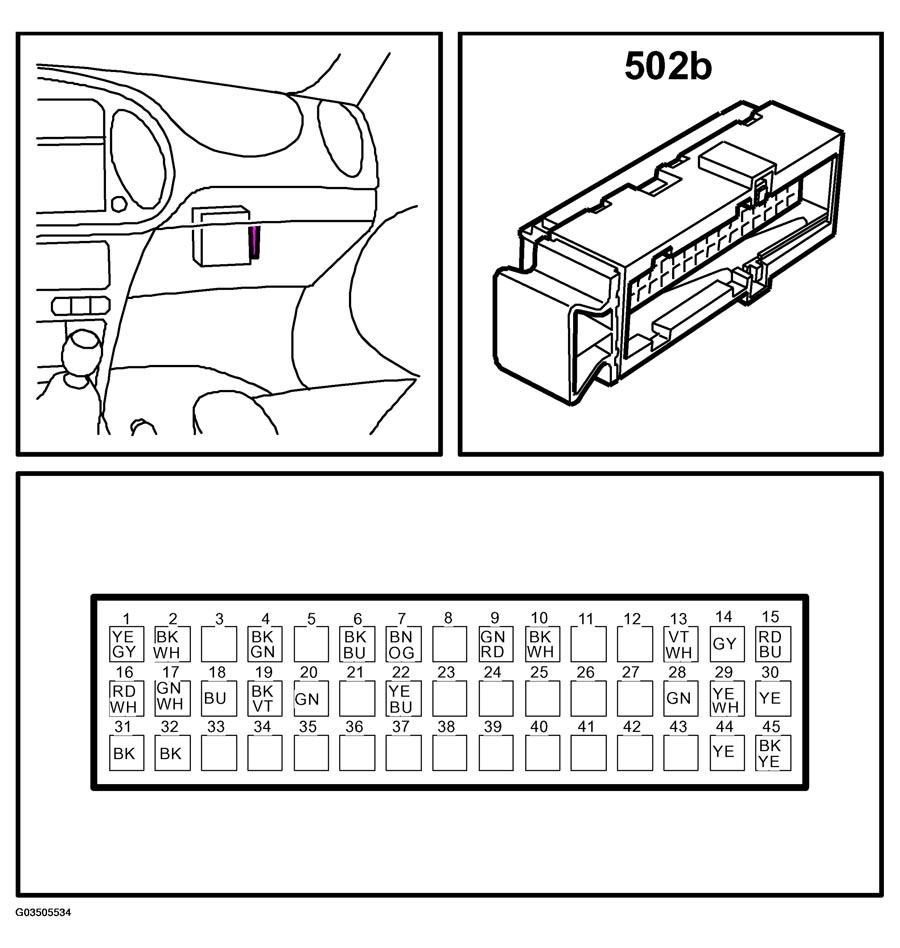

Fig 1: Identifying TCM Control Module Pinouts And Location For T7
G03505534Courtesy of SAAB-SCANIA OF AMERICA, INC.
