TRIONIC T7 Fuel Control System
›
Fault diagnosis, fault codes
›
DTC P1310: Ignition Discharge Module Not Powered Bank 1
›
Notes
DTC P1310: Ignition Discharge Module Not Powered Bank 1: Notes

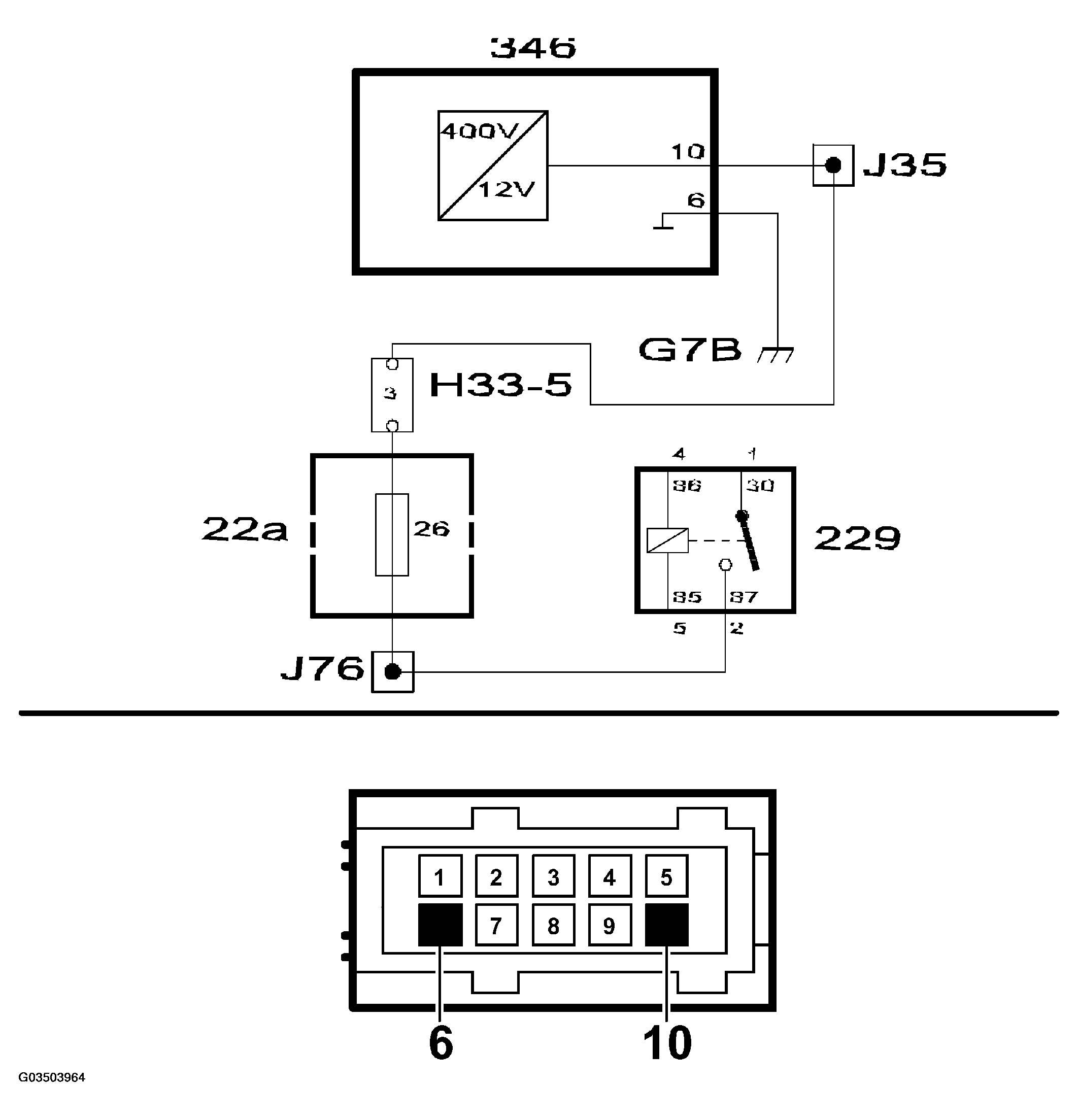

Fig 1: Circuit Diagram - Ignition Discharge Module - Not Powered (Bank 1)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
