Limp-home solenoid (607)

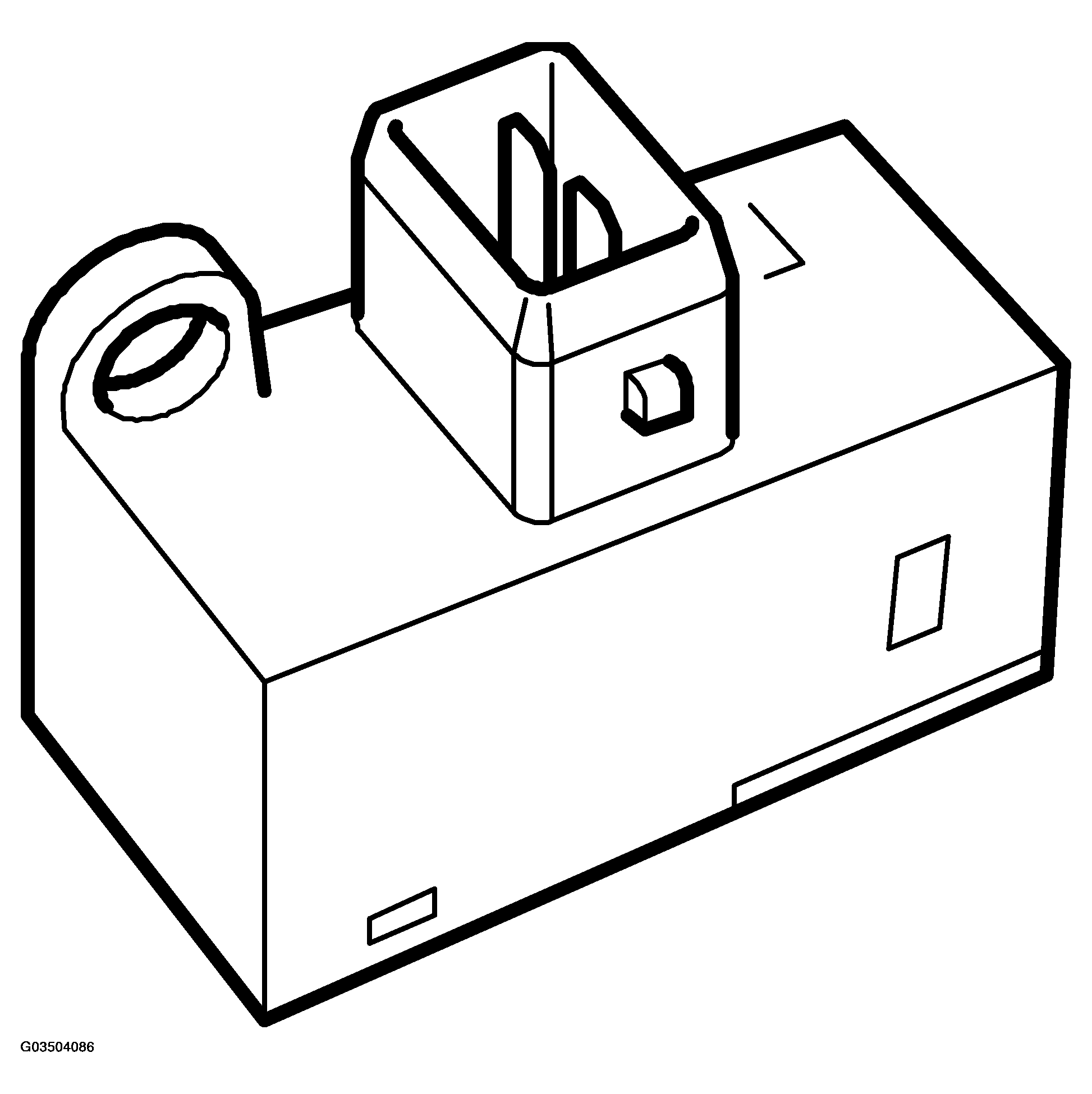

Fig 1: Identifying Limp-Home Solenoid
G03504086Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - LIMP-HOME SOLENOID

Location   On throttle body
Characteristics   Zero current sprung
Resistance at 20 °C (68°F) Ohms 1.7+/-0.2
