DTC P1135: O2S Heater Circuit Current too Low Sensor 1: Notes

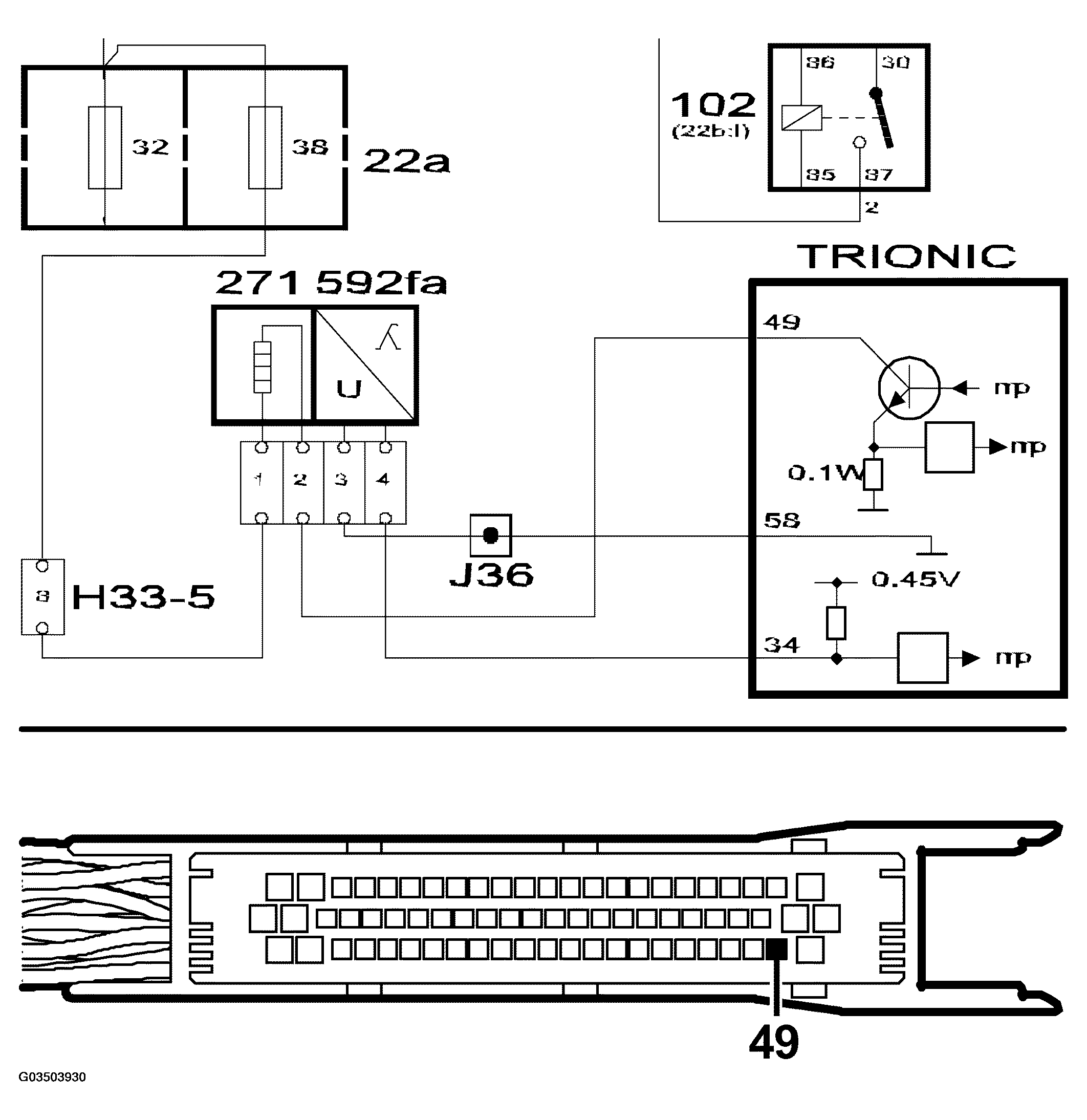

Fig 1: Identifying O2S Heater Circuit Diagram - Current Too Low - Sensor 1.
G03503930Courtesy of SAAB-SCANIA OF AMERICA, INC.
