DTC P1136: O2S Heater Circuit Current too High Sensor 1: Notes

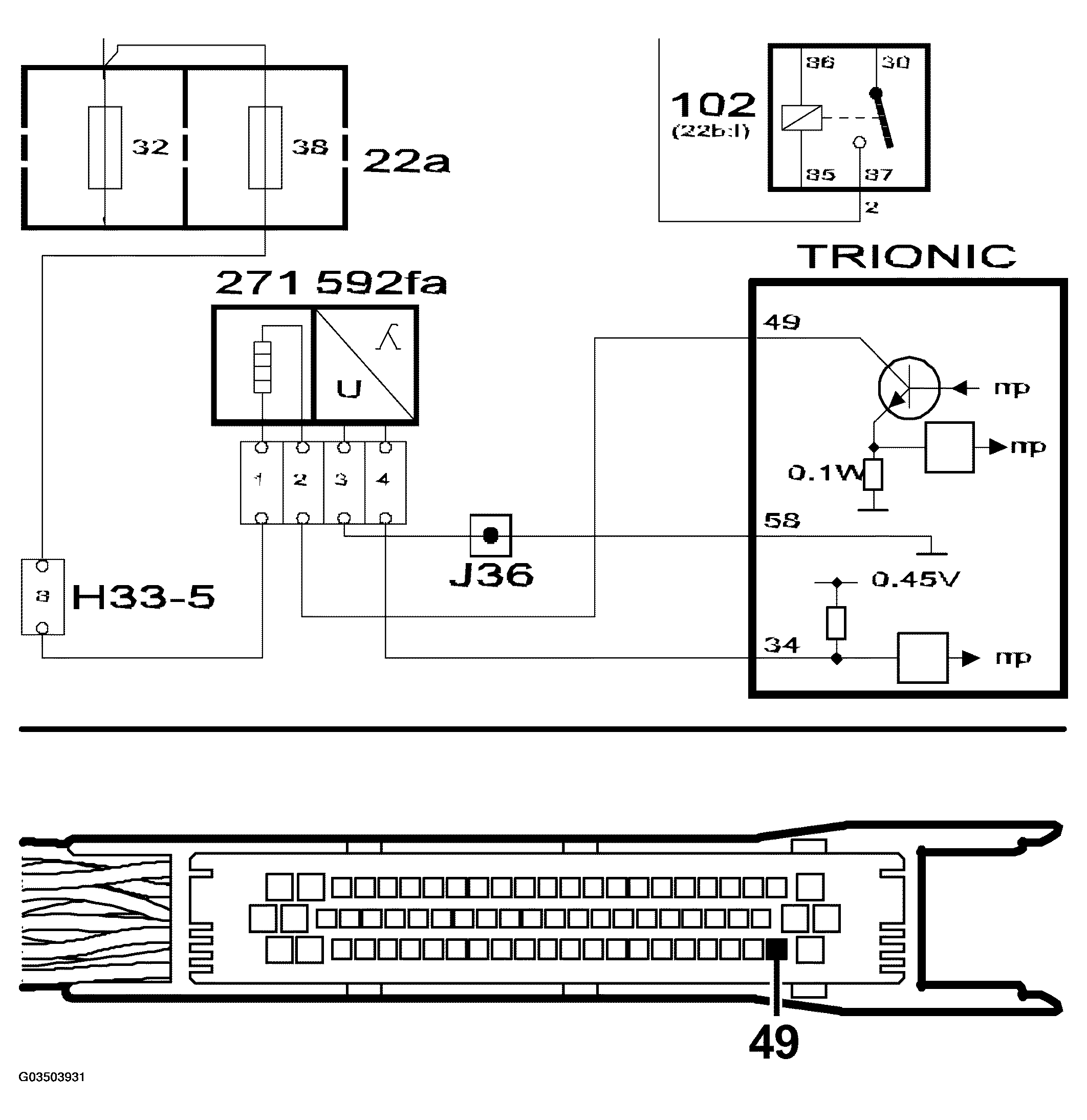

Fig 1: Identifying O2S Heater Circuit Diagram - Current Too High - Sensor 1
G03503931Courtesy of SAAB-SCANIA OF AMERICA, INC.
