TRIONIC T7 Fuel Control System
›
Fault diagnosis, fault codes
›
DTC P1141: O2S Heater Circuit Current too Low Sensor 2
›
Notes
DTC P1141: O2S Heater Circuit Current too Low Sensor 2: Notes

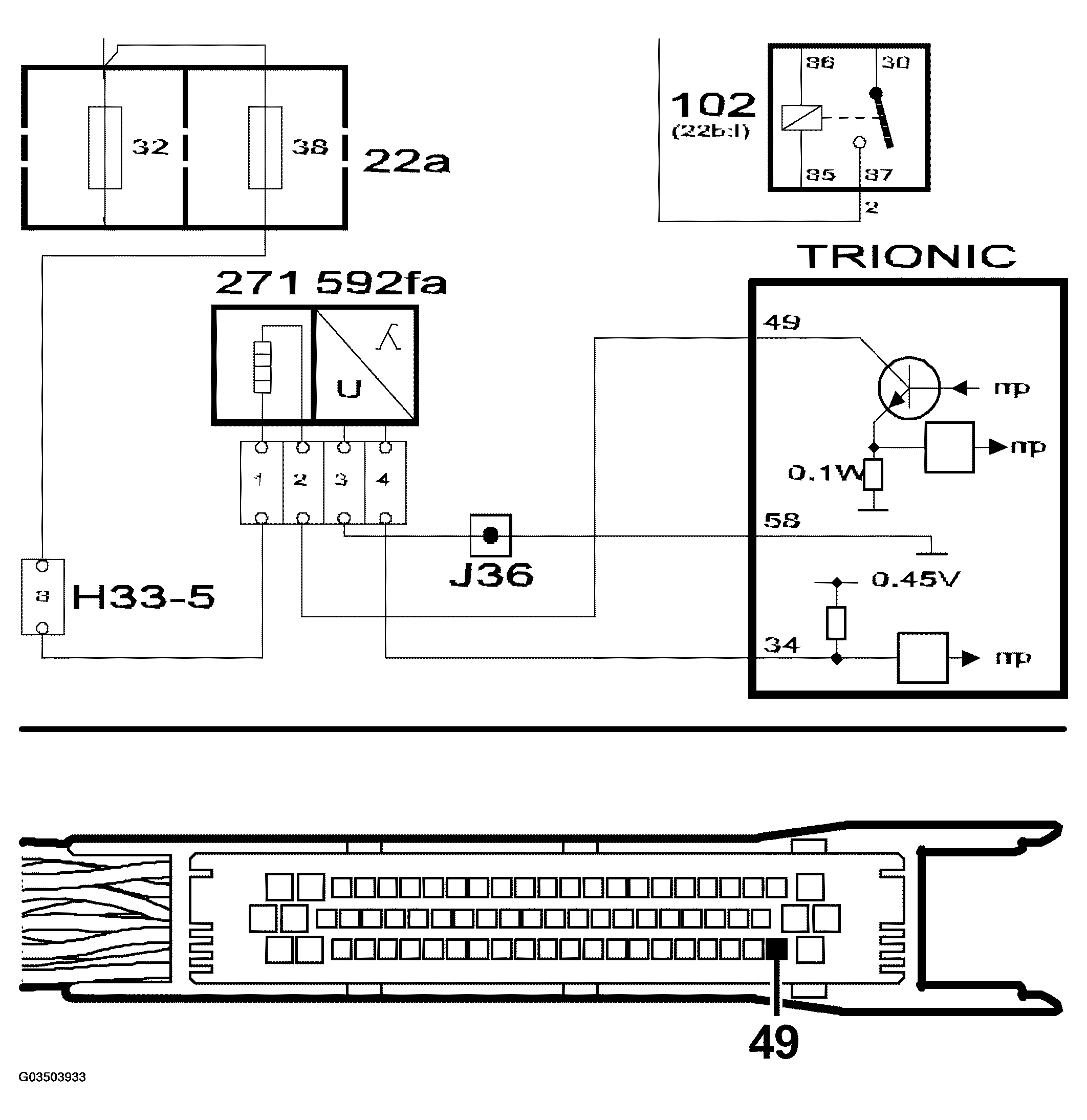

Fig 1: Identifying O2S Heater Circuit Diagram - Current Too Low - Sensor 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
