DTC P1142: O2S Heater Circuit Current too High Sensor 2: Notes

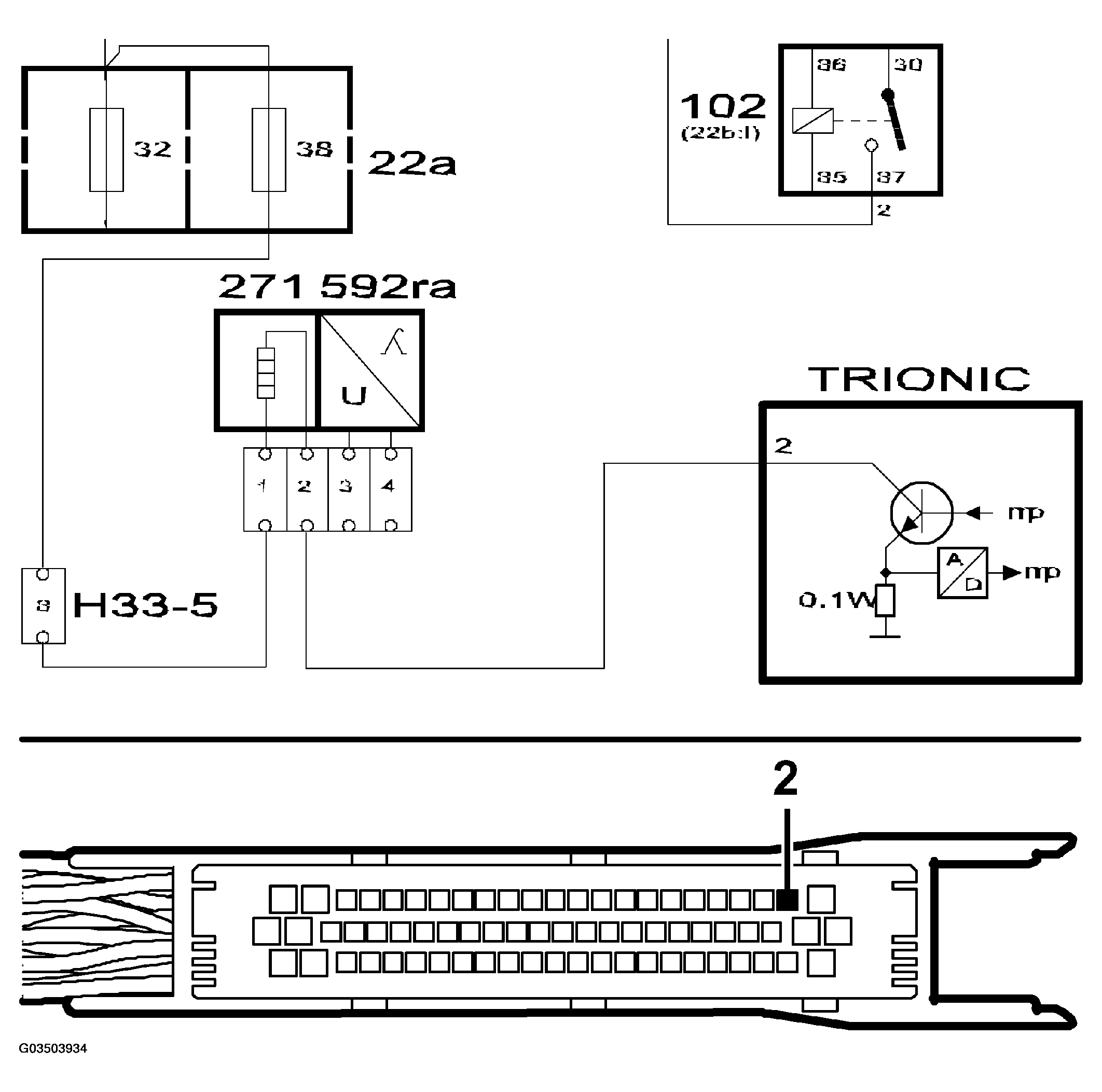

Fig 1: Identifying O2S Heater Circuit Diagram - Current Too High - Sensor 2
G03503934Courtesy of SAAB-SCANIA OF AMERICA, INC.
