DTC P1451: EVAP Tank Pressure Sensor Performance Problem
›
Notes
DTC P1451: EVAP Tank Pressure Sensor Performance Problem: Notes

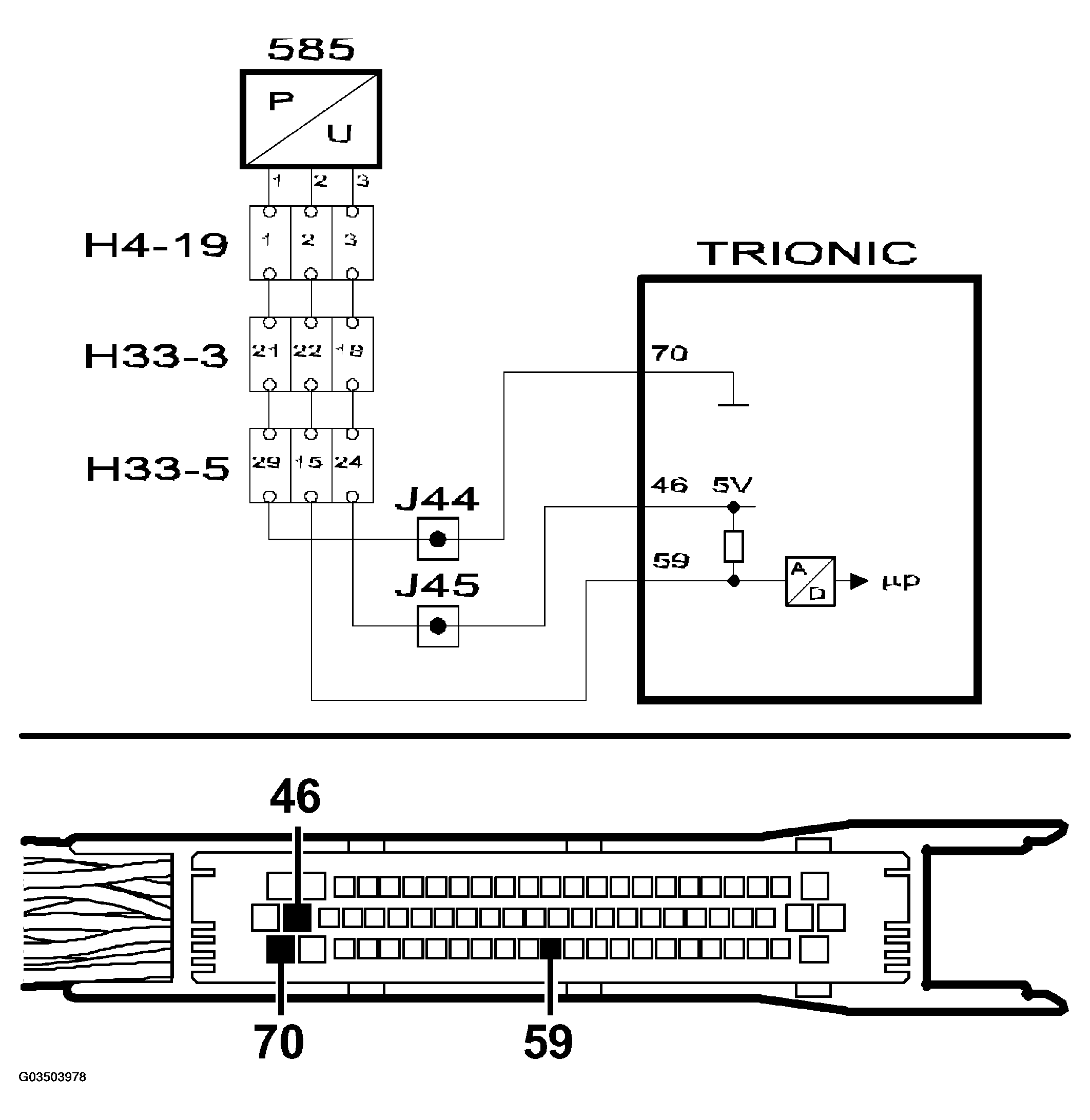

Fig 1: Identifying EVAP Tank Pressure Sensor Circuit Diagram - Performance Problem
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
