Relay, A/C (156)

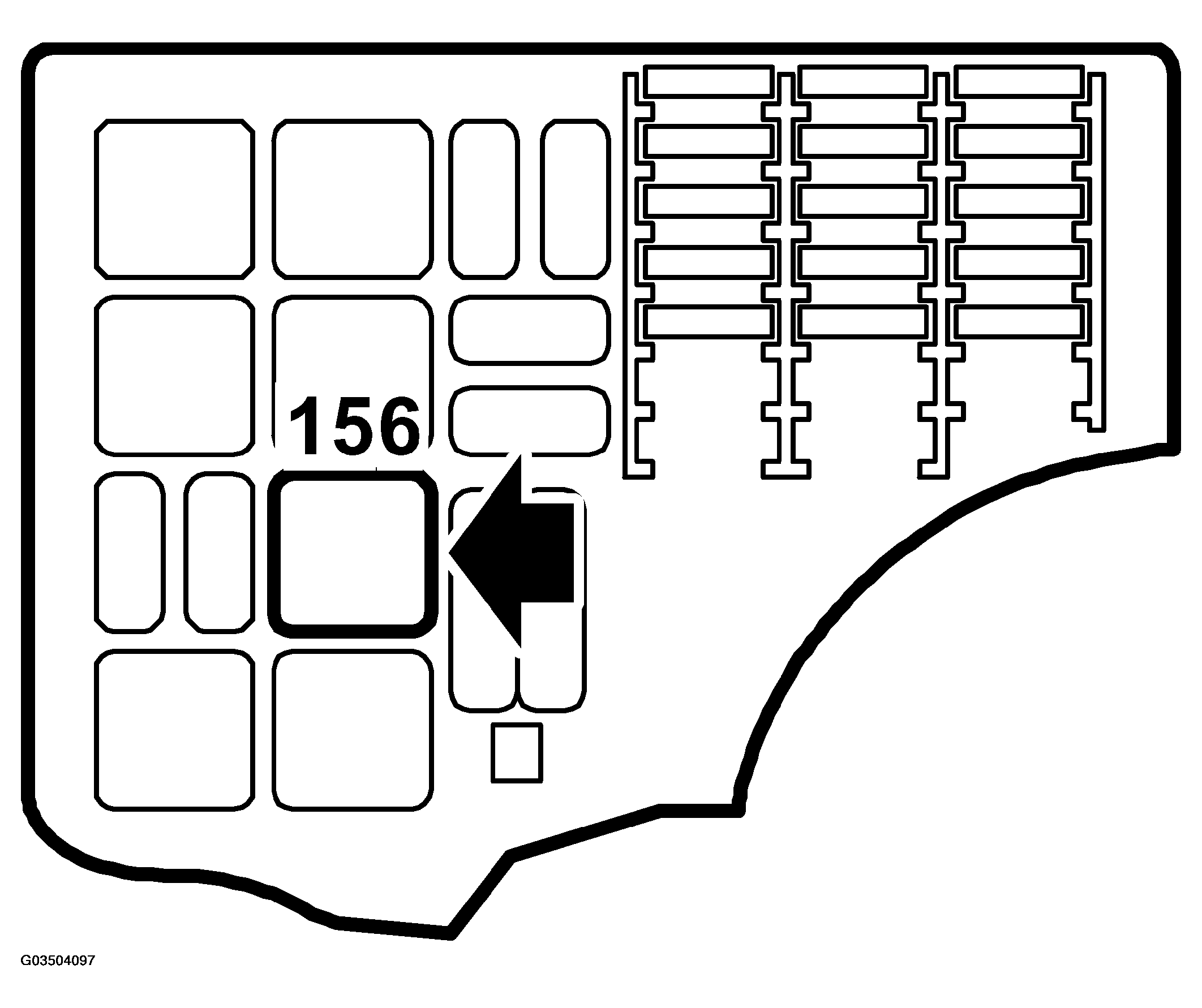

Fig 1: Identifying A/C Relay

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - A/C RELAY

Location		In engine bay main relay board
Resistance, winding at 20 °C (68°F)	Ohms	85+/-5
Nominal control voltage	V	12
Rated current	A	30
