Selector lever position sensor

Fig 1: Identifying Selector Lever Position Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

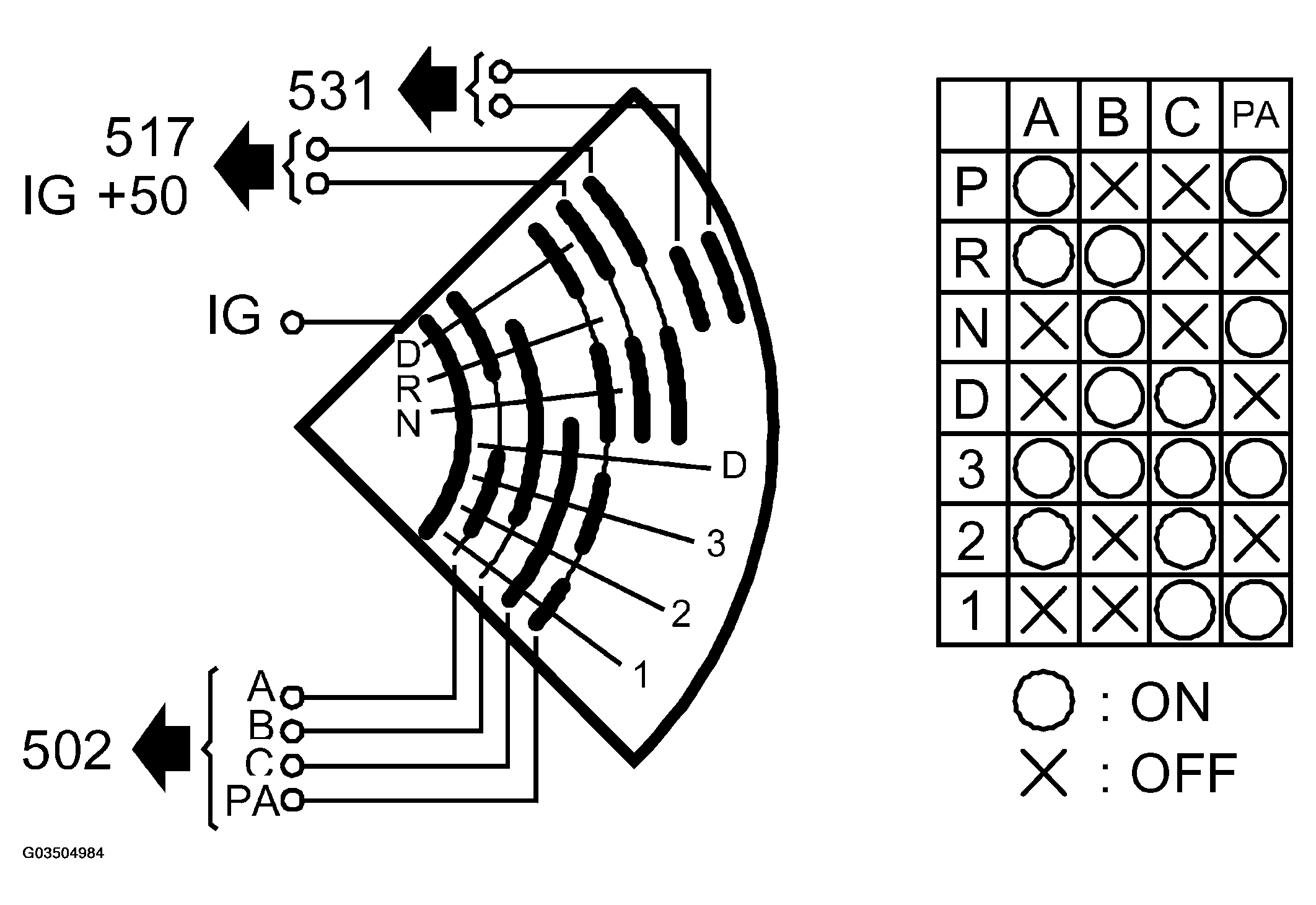

Fig 2: Identifying Selector Lever Sensor Positions

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SELECTOR LEVER POSITION SENSOR REFERENCE

Location		On the gearbox
To fit		Adjustment required for proper operation
Type		Slip contacts
Power supply (+15 circuit)		IG contact
Function	Selector lever position	A, B, C and PA contacts
	Starter motor interlock	SR contact
	Reversing lights	RL contact
Resistance	Open contact	OL (.)
	Closed contact	< 5 Ohm
