Control module bus outputs

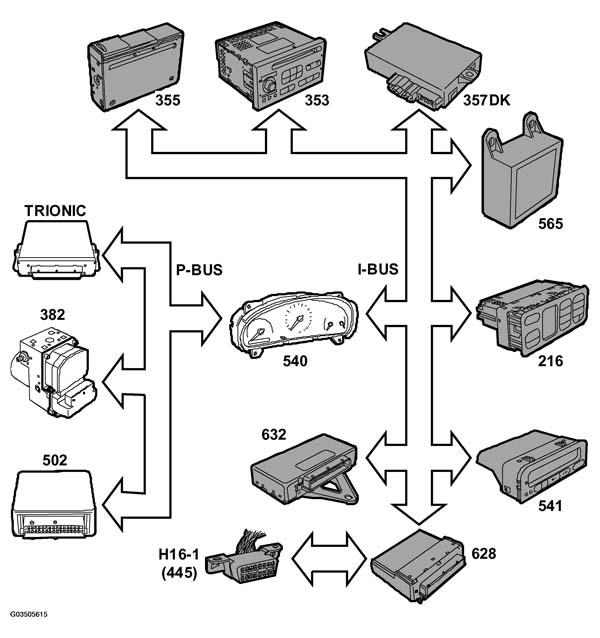

Fig 1: Identifying Control Module Bus Outputs - Communication Diagram

G03505615

Courtesy of SAAB-SCANIA OF AMERICA, INC.

INDICATOR LAMP TCS OFF
ABS WARNING LAMP
TCS lamp
Wheel-speed signal output for all wheels
REQUEST FOR ENGINE TORQUE

See also ANTI-LOCK BRAKES and BUS AND DIAGNOSTICS COMMUNICATION .
