Control module inputs

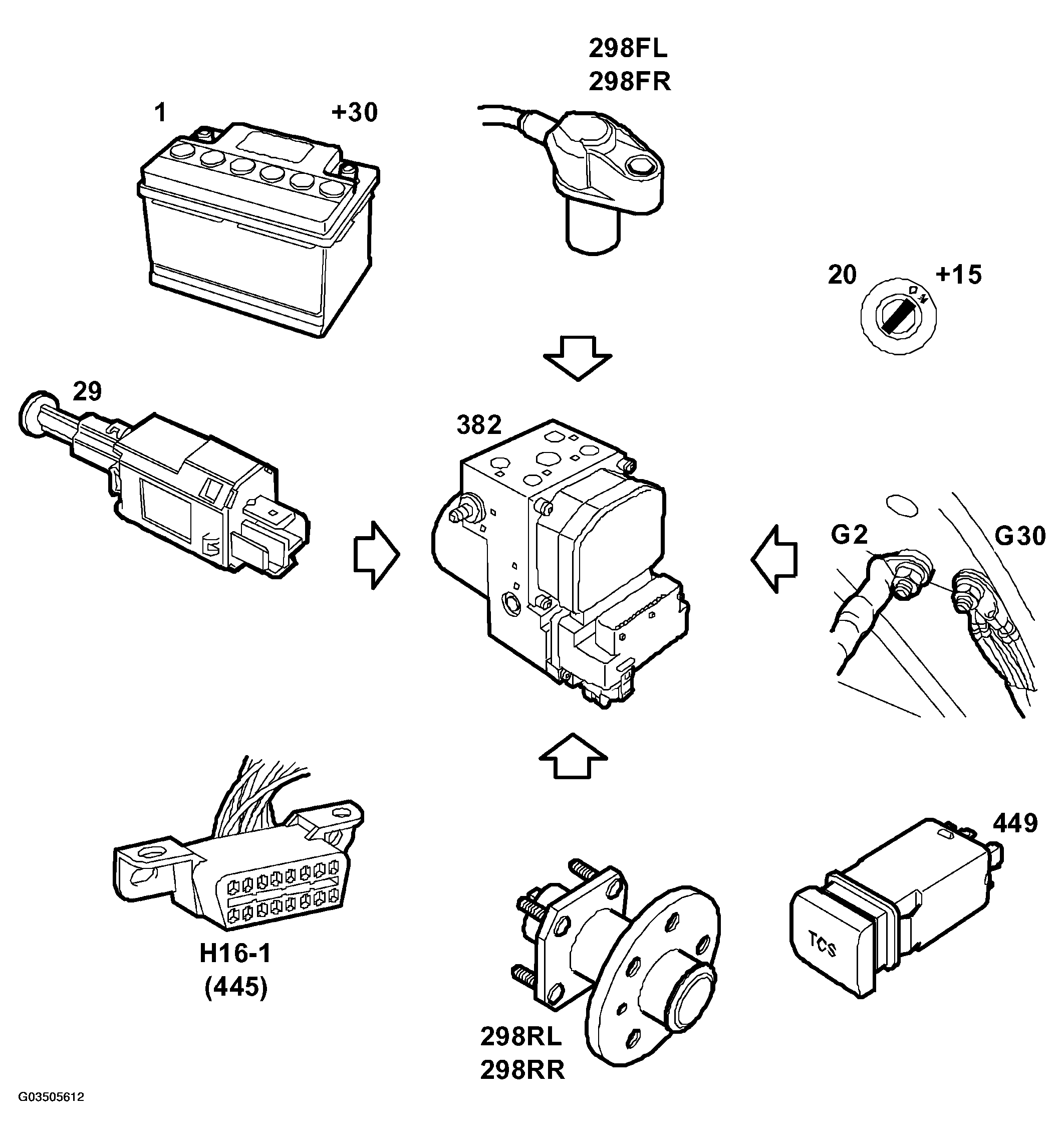

Fig 1: Identifying Control Module Inputs

G03505612

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Voltage +30 (1)
Voltage +15 (20)
Ground (G30, G2).
Wheel sensors, front (298)
Wheel sensors, rear (298)
Brakelight switch (29)
Data link (445)
Switch, TCS (449)
