Abs System Version 5.4 - Repair
›
Component Location
›
Grounding point G2
›
Notes
Grounding point G2: Notes
Fig 1: Identifying Grounding Point G2 And Location
Courtesy of SAAB-SCANIA OF AMERICA, INC.

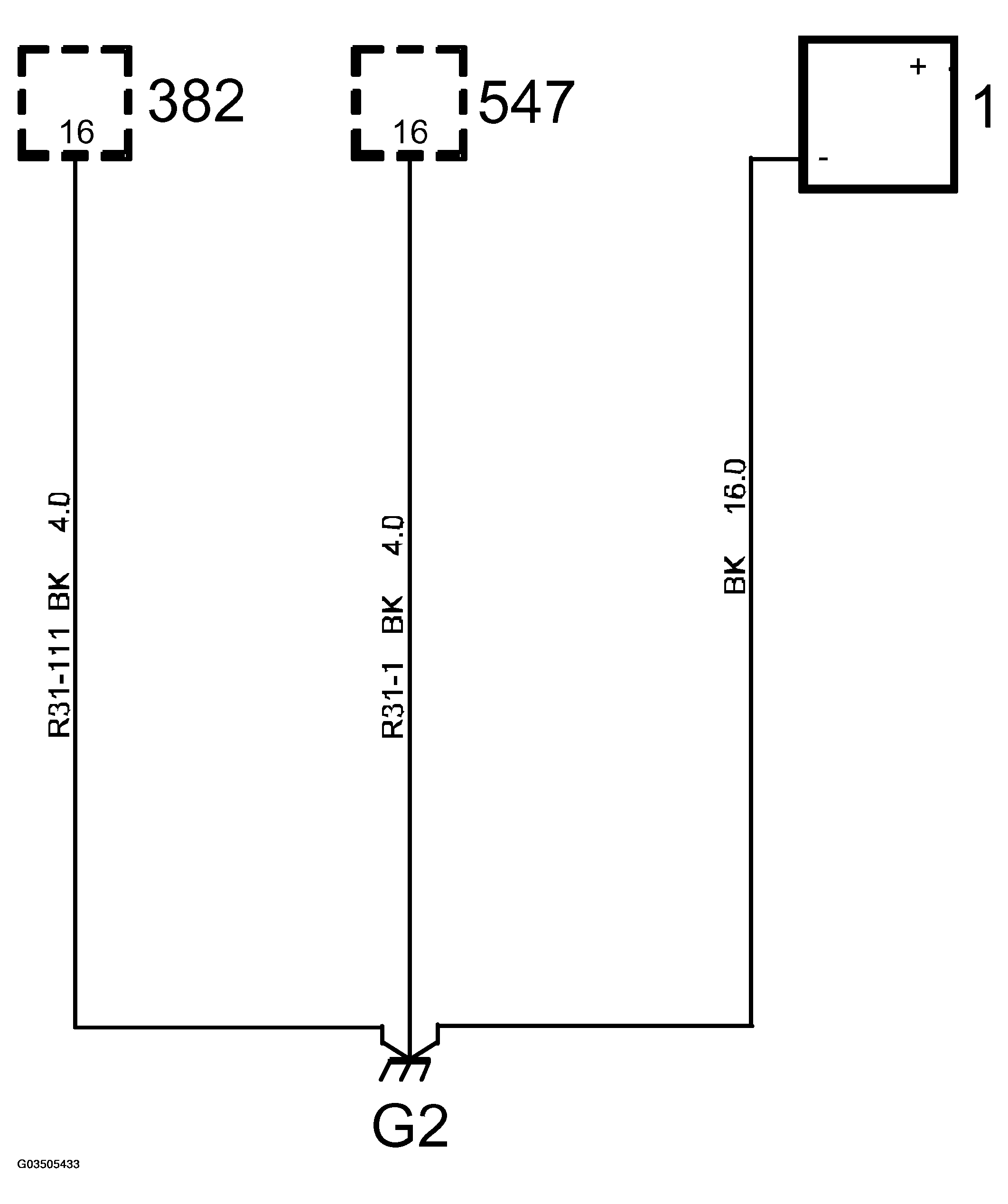

Fig 2: Grounding Point G2 - Crimp
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Location:
in engine bay on side panel in front of left-hand wheel housing.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
