Technical data: Lubricants

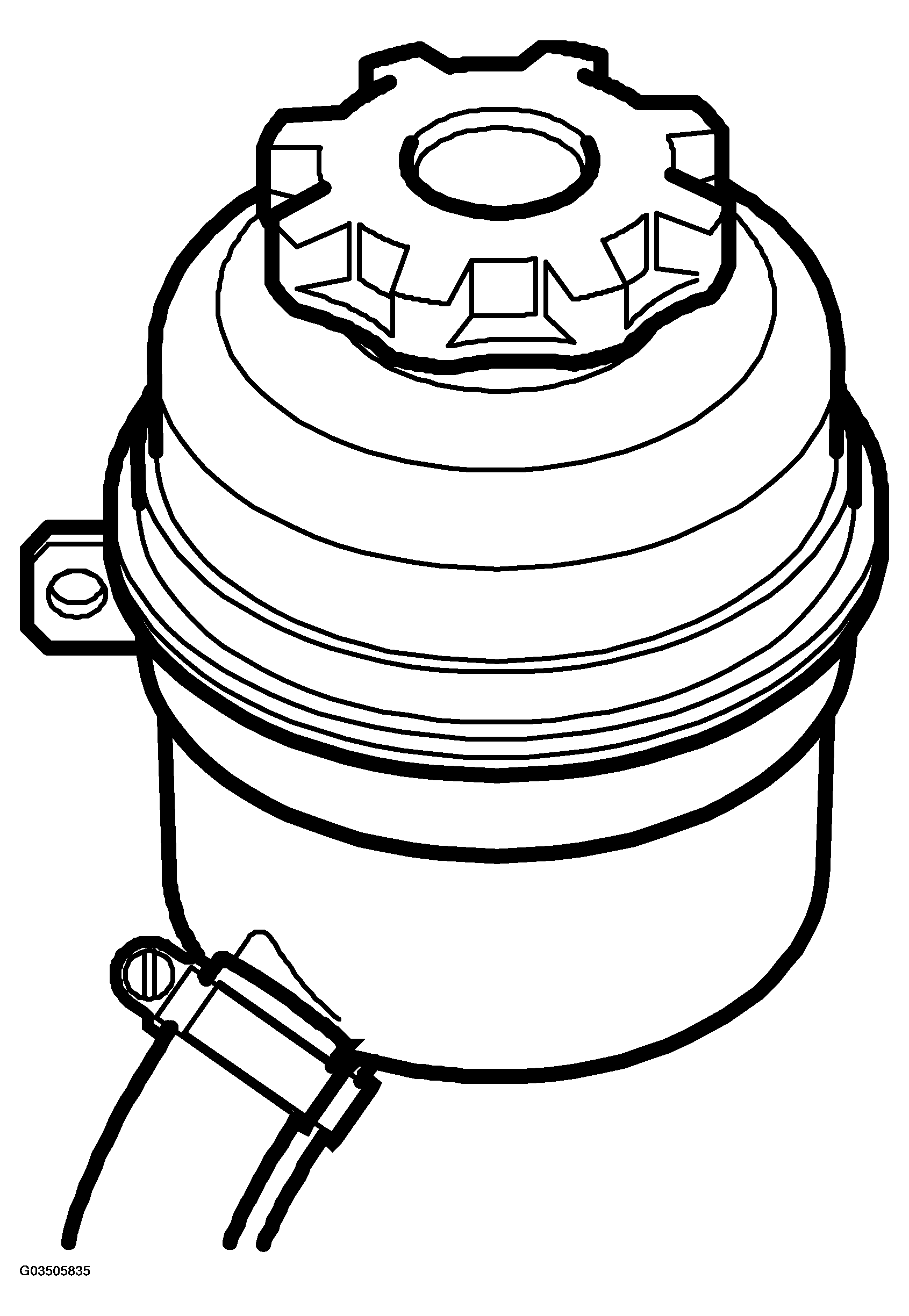

Fig 1: View Of Power Steering Oil Reservoir

Courtesy of SAAB-SCANIA OF AMERICA, INC.

LUBRICANTS SPECIFICATIONS

Hydraulic fluid, type		CHF 11S part no. 30 32 380
Hydraulic fluid, volume	cl (qts)	100 (1.05)
