Grounding Point G25: Notes

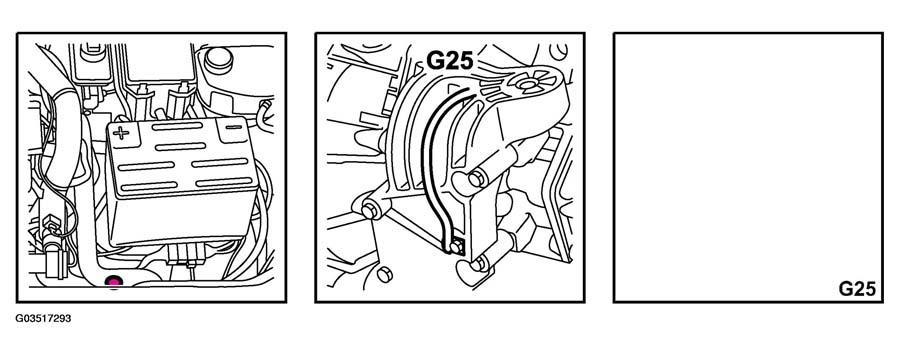

Fig 1: Locating Grounding Point G25
G03517293Courtesy of SAAB-SCANIA OF AMERICA, INC.

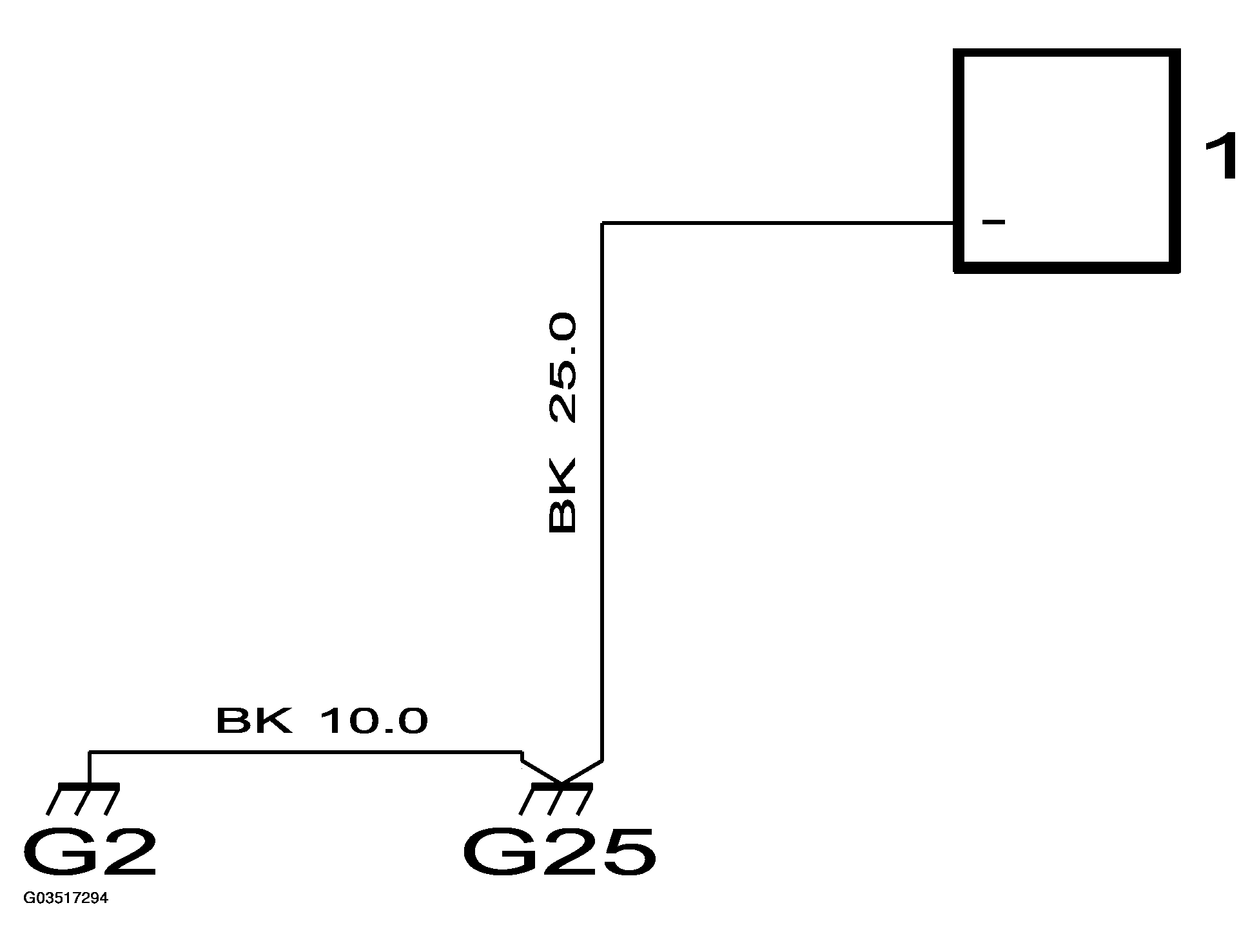

Fig 2: Grounding Point G25 Connection Diagram
G03517294Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On the gearbox.
