Main Components, LHD

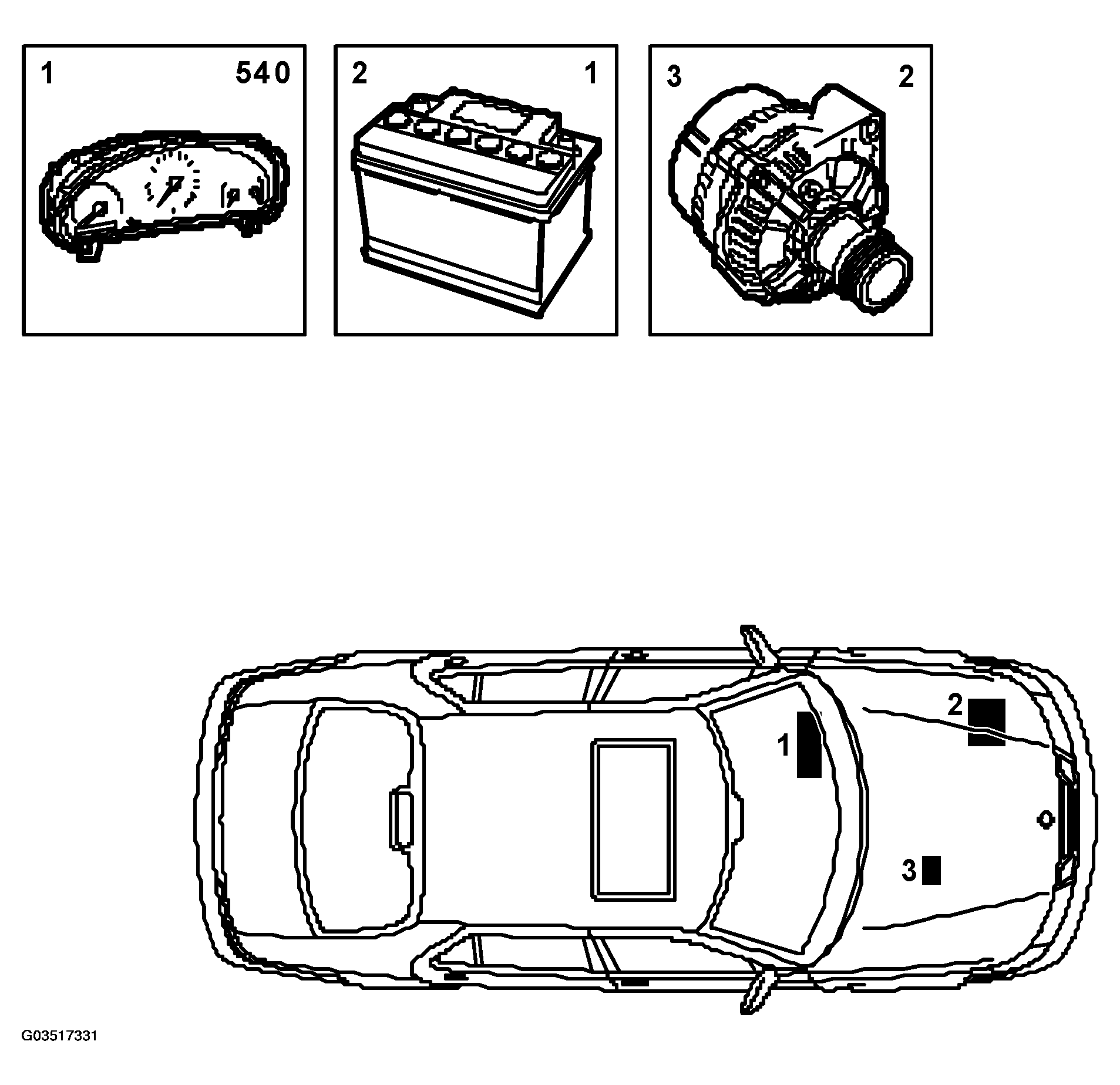

Fig 1: Illustration For Steps 1-3 (LHD)
G03517331Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Main instrument unit (540)
  2. Battery (1)
  3. Generator (2)
