Fuel Pump

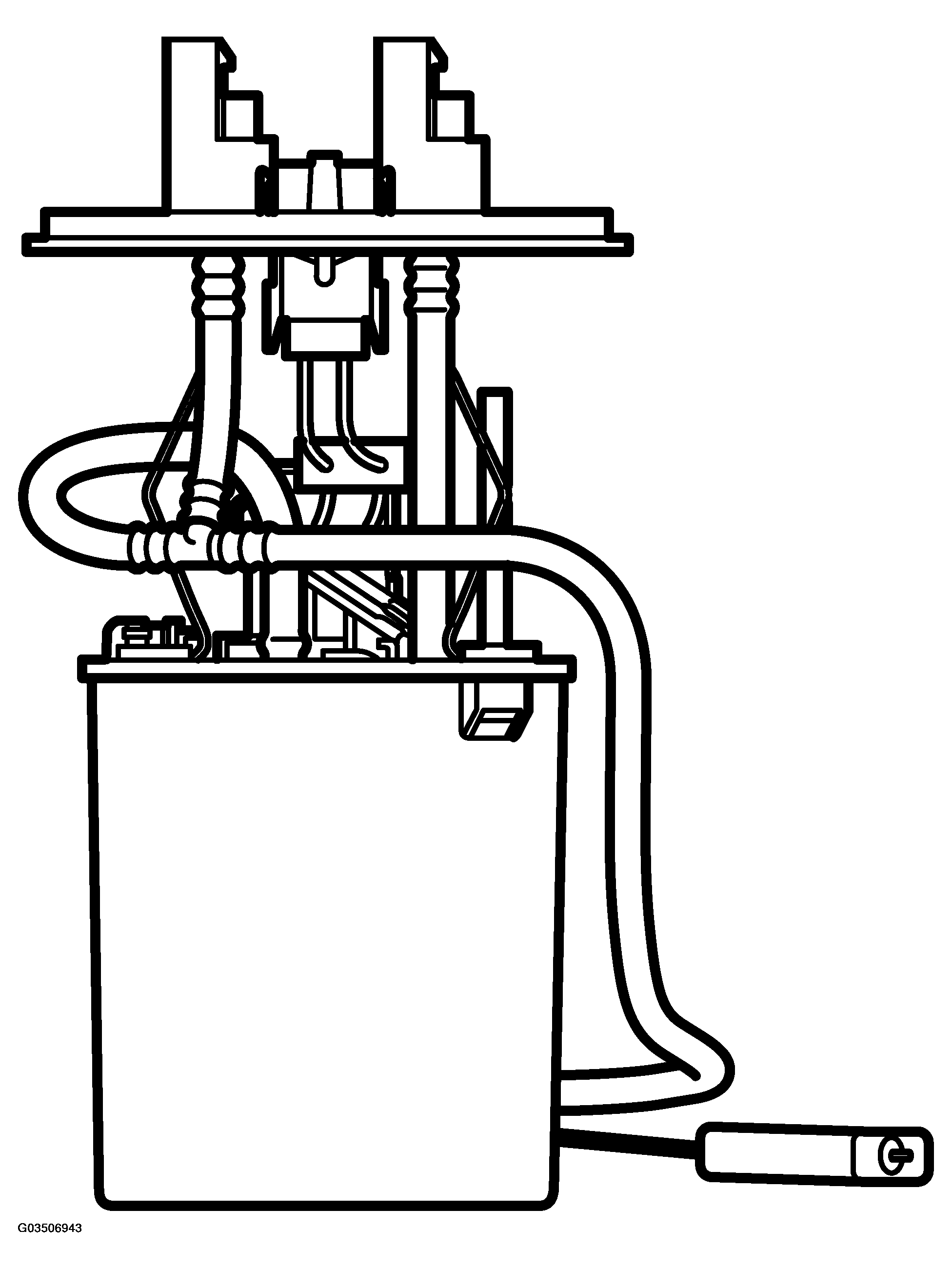

Fig 1: Identifying Fuel Pump

G03506943

Courtesy of SAAB-SCANIA OF AMERICA, INC.

FUEL PUMP TECHNICAL DATA

Capacity at 3.0 bar backpressure l/30s	min. 0.7
Resistance, fuel level sensor, full tank Ohm	425 +/- 6.5
Resistance, fuel level sensor, empty tank Ohm	50 +/- 1.5
