To remove

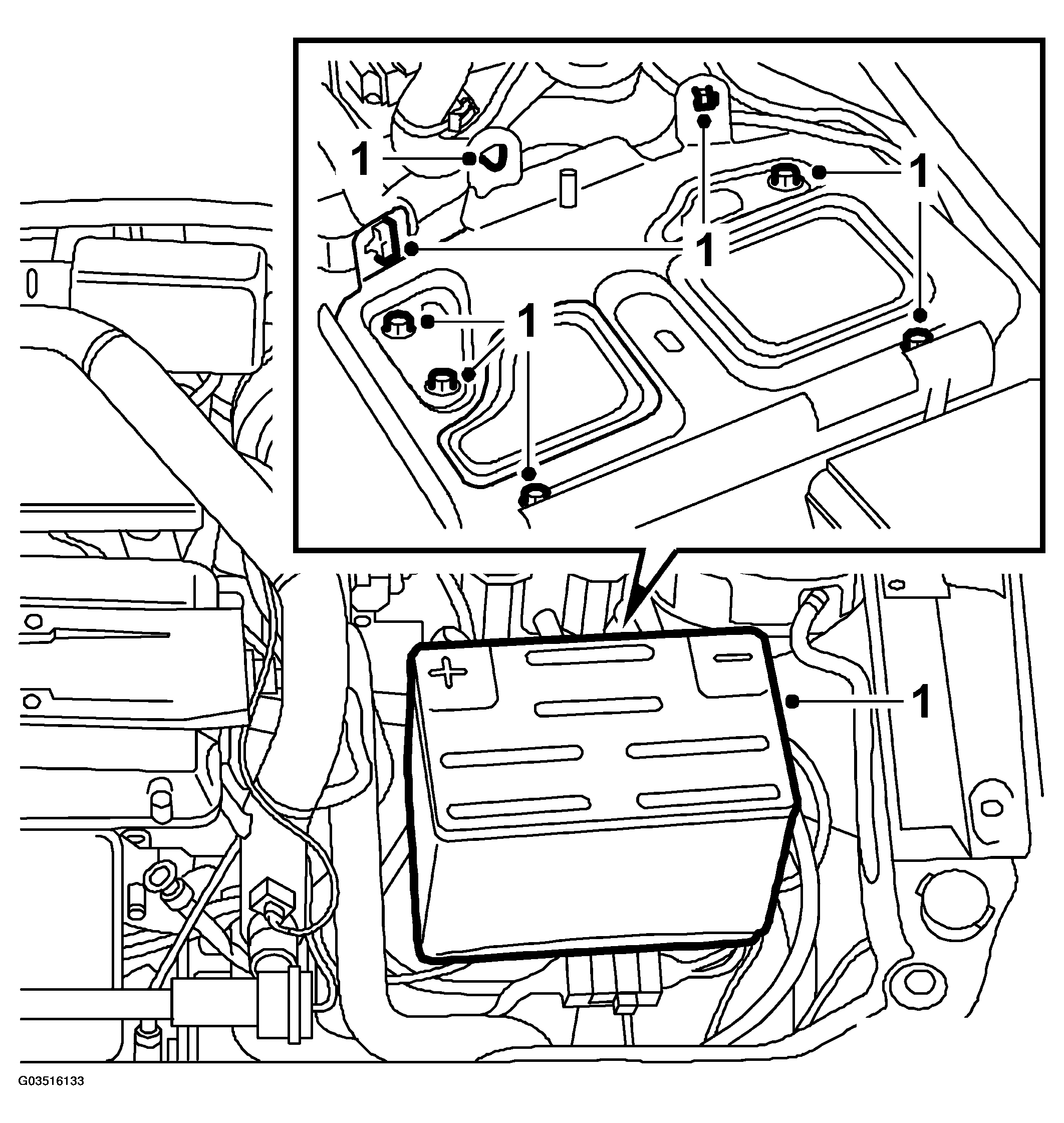

Fig 1: Illustration For Step 1
G03516133Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the battery cover, battery and battery tray.
  2. Disconnect the temperature sensor's cable.

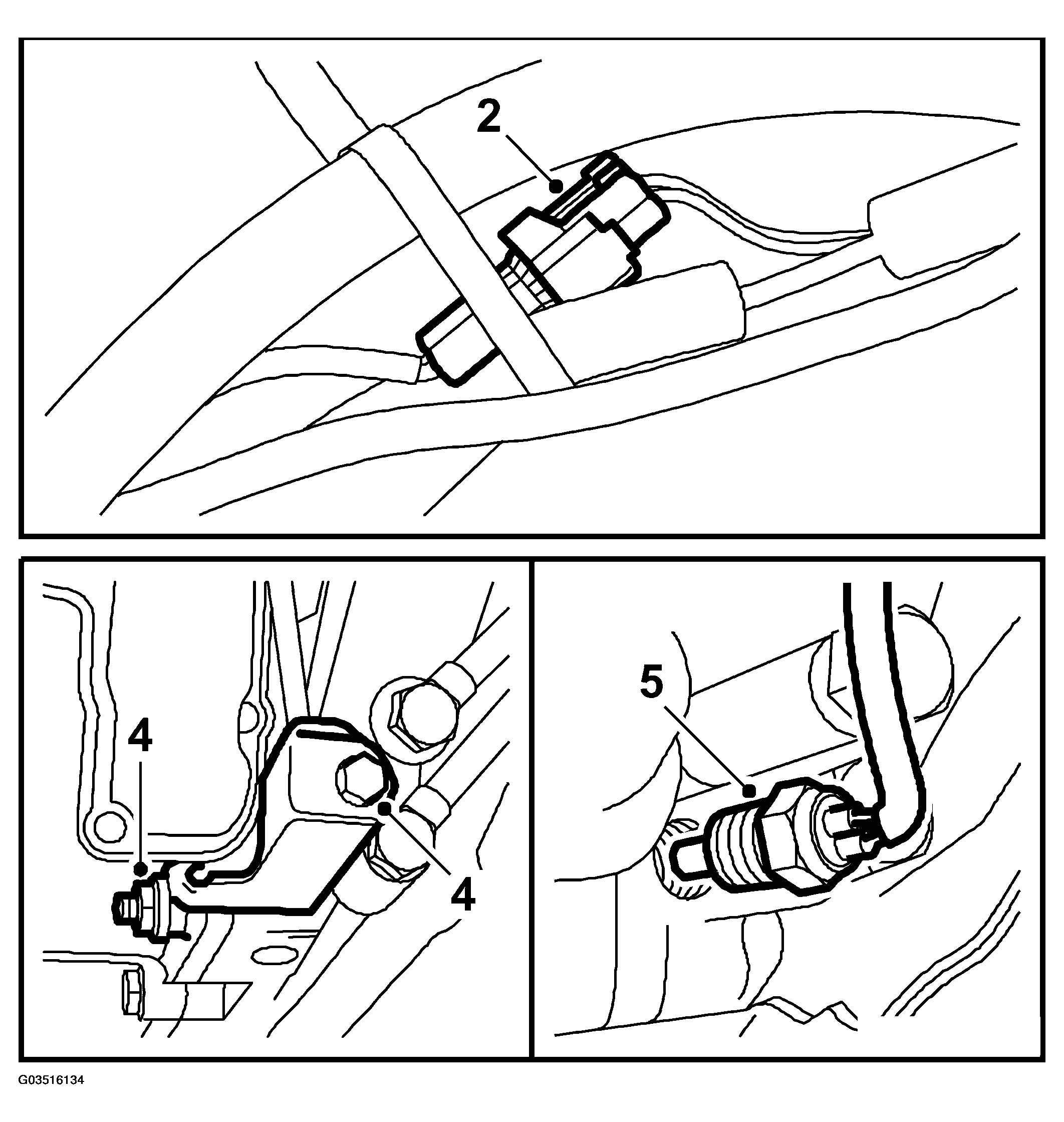

    Fig 2: Illustration For Steps 2, 4-5
    G03516134Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Raise the car.
  4. Remove the two bolts securing the cover.
    NOTE: Place an oil pan under the transmission to collect the fluid that runs out.
  5. Unscrew the fluid temperature sensor.
