Sensor, input speed

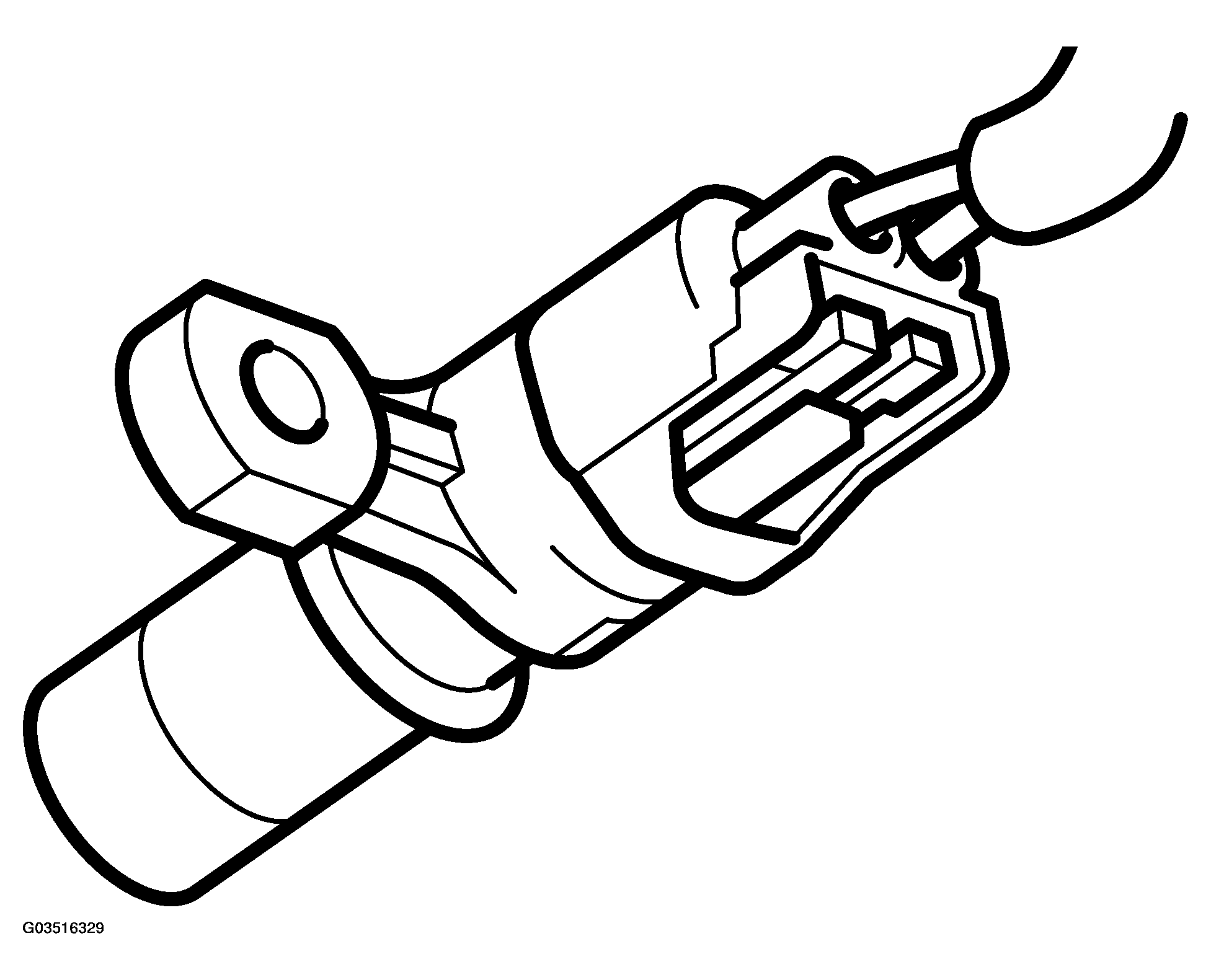

Fig 1: Identifying Input Speed Sensor

G03516329

Courtesy of SAAB-SCANIA OF AMERICA, INC.

INPUT SPEED SENSOR SPECIFICATIONS

Location		On the transmission casing
Type		Inductive sensor
Resistance, shift 1-2 at 20° C	Ohm	450+/-150
Toothed wheel	number of teeth	12
