Sensor, output speed

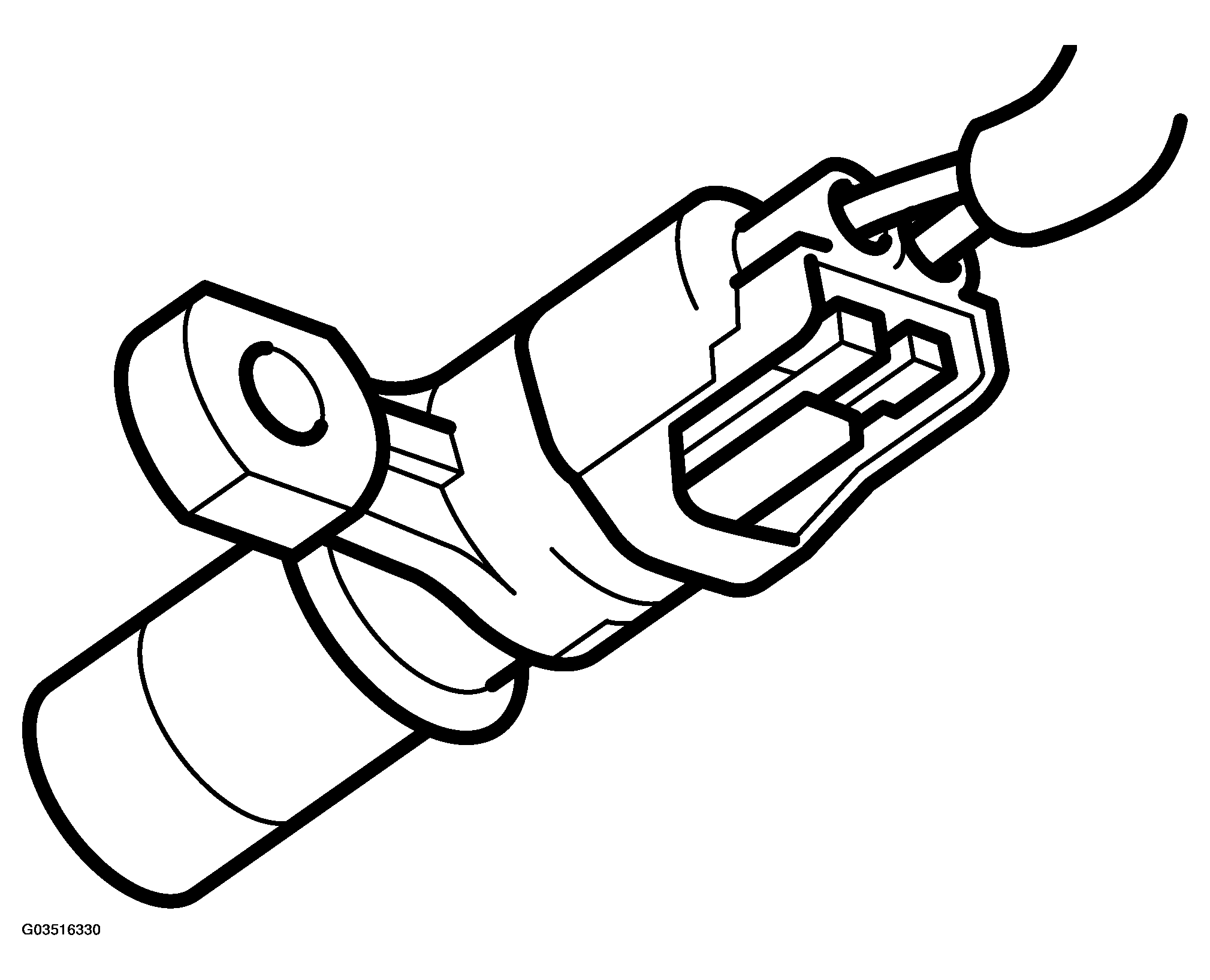

Fig 1: Identifying Output Speed Sensor

G03516330

Courtesy of SAAB-SCANIA OF AMERICA, INC.

OUTPUT SPEED SENSOR SPECIFICATIONS

Location		On the transmission casing
Type		Inductive sensor
Resistance, shift 2-3 at 20°C	Ohm	450+/-150
Toothed wheel	number of teeth	18
