Control module bus outputs

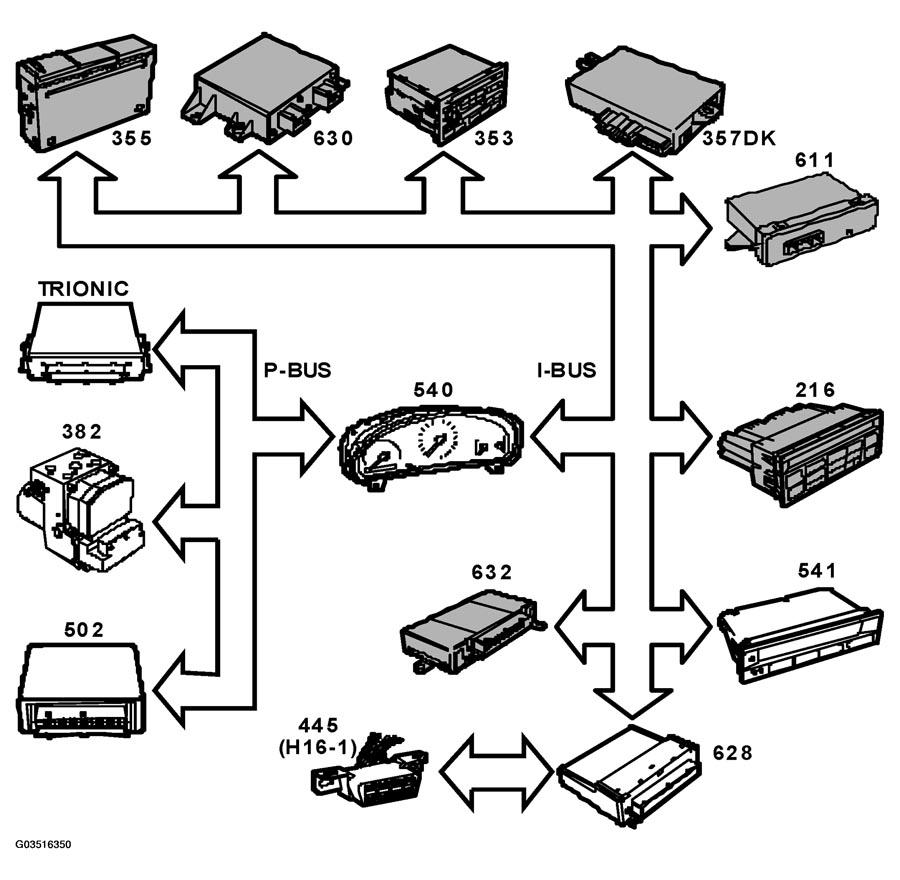

Fig 1: Control Module Bus Outputs Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Maximum permissible torque (used by Trionic) (430/600), see MAXIMUM PERMISSIBLE TORQUE .
Selector lever position (used by Trionic and MIU) (430/600, 540), see GEAR SELECTOR POSITION SENSOR - GEAR ENGAGED .
Message addressed to SID (541), TRANSMISSION OVERHEATING (used by SID), see TRANSMISSION FLUID TEMPERATURE SENSOR .
CHECK GEARBOX lamp (used by MIU) (540), see CHECK GEARBOX WARNING LAMP .
SPORT (used by Trionic and MIU) (430/600, 540), see SPORT SHIFTING PROGRAM .
WINTER lamp (used by MIU) (540), see WINTER SHIFTING PROGRAM .
