Grounding Point G40: Notes

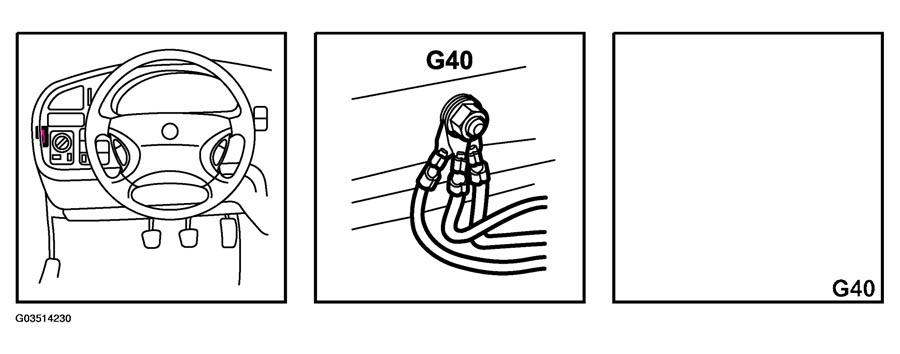

Fig 1: Identifying Grounding Point G40

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 2: Identifying Grounding Point G40 - Crimp

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In passenger compartment on left-hand side of knee member.
