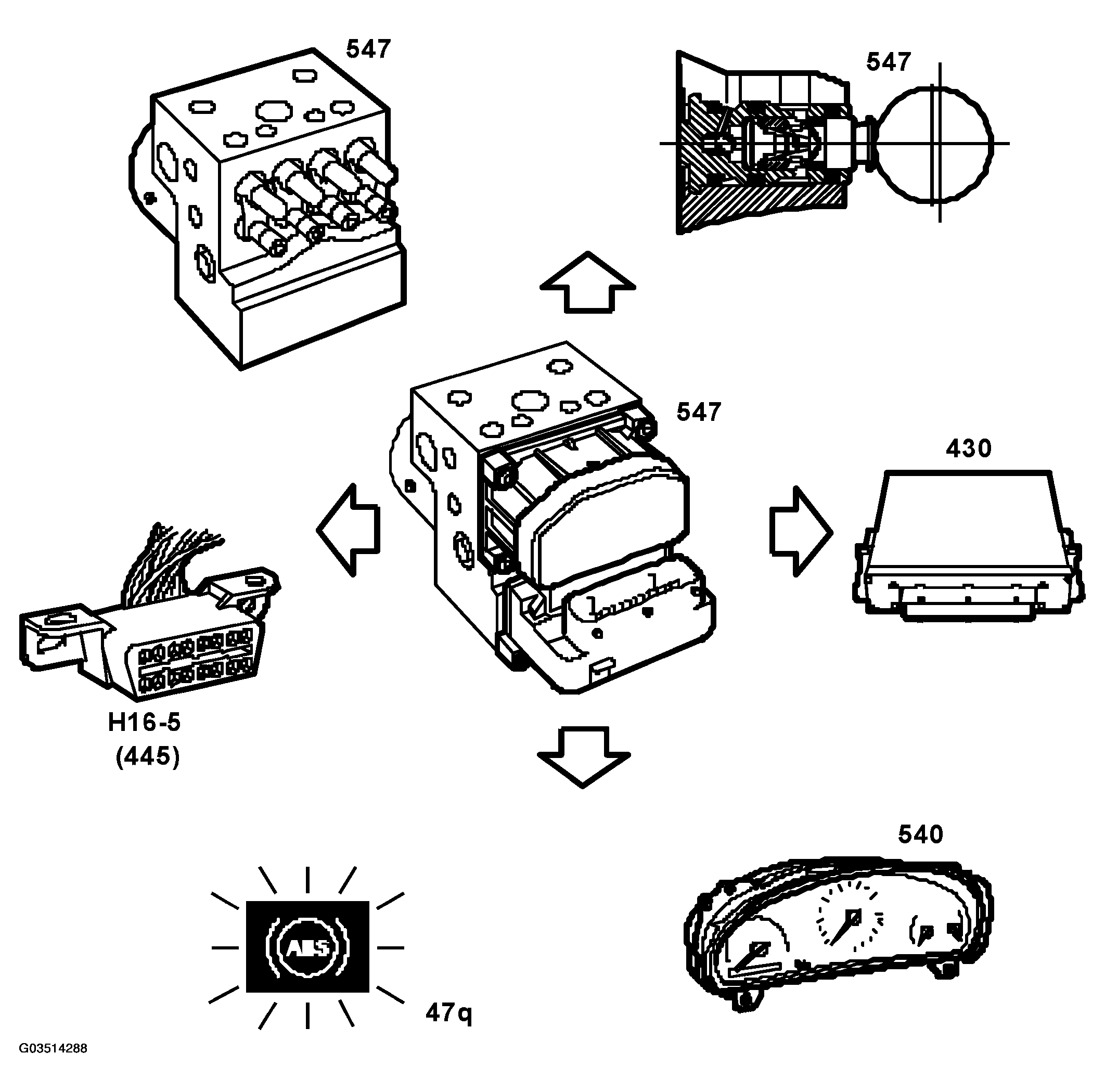

Control Module Outputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Wheel speed, FR (430). See FRONT-WHEEL SENSORS
.
- Wheel speed, RL (540). See REAR-WHEEL SENSORS
.
- Return Pump (547). See RETURN PUMP
.
- ABS Warning Light On MIU (540). See ABS WARNING LIGHT
.
- Data Link Connector, 16-Pin, CARB (445). See DATA LINK CONNECTOR, 16-PIN, CARB (445)
.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Inlet valve, FL (547). See VALVE BLOCK
.
- Outlet valve, FL (547). See VALVE BLOCK
.
- Inlet valve, RR (547). See VALVE BLOCK
.
- Outlet valve, FR (547). See VALVE BLOCK
.
- Inlet valve, RL (547). See VALVE BLOCK
.
- Outlet valve, RL (547). See VALVE BLOCK
.
- Inlet valve, RR (547). See VALVE BLOCK
.
- Outlet valve, RR (547). See VALVE BLOCK
.
