Main Components

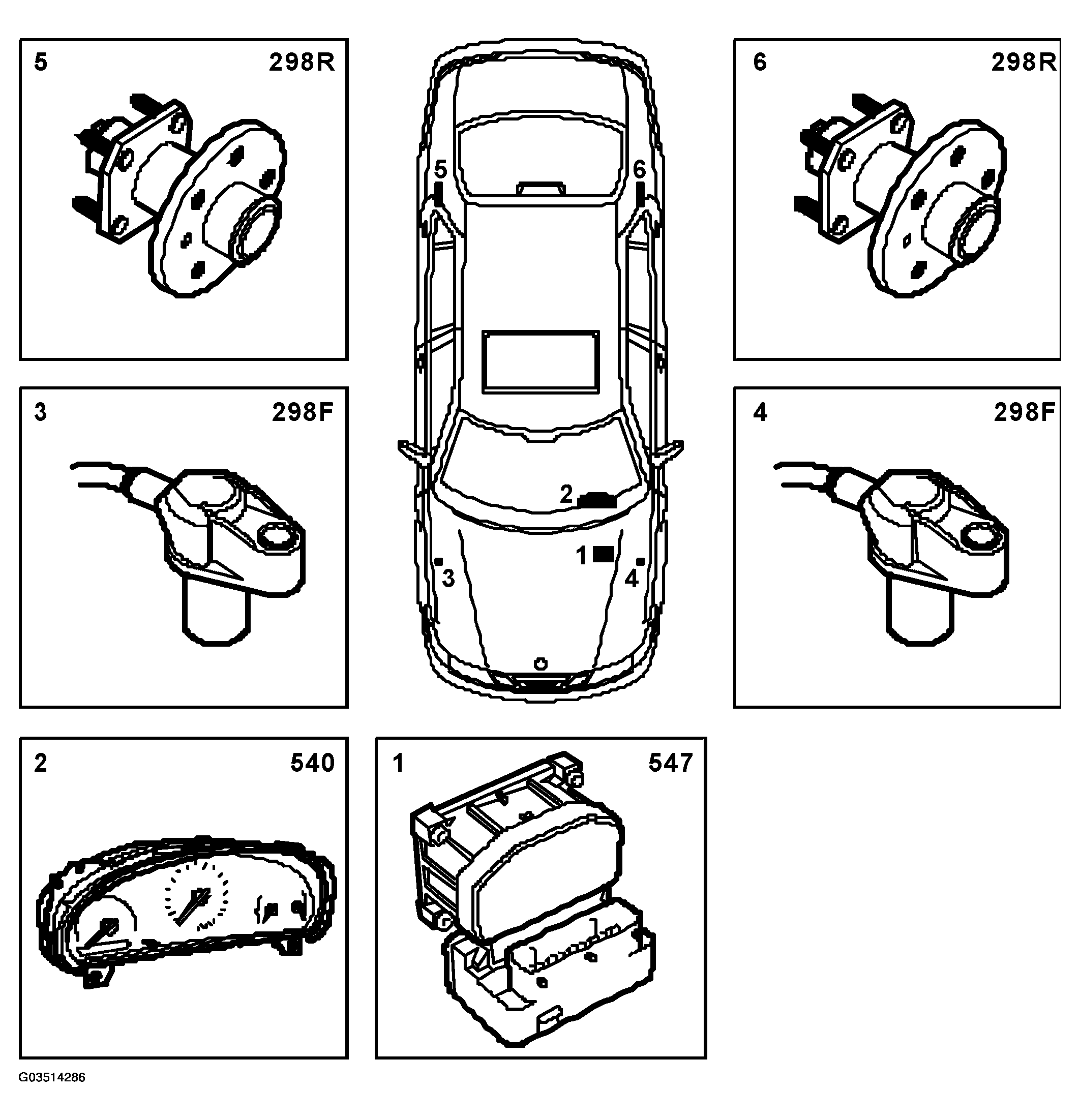

Fig 1: Identifying ABS 5.4 Components

G03514286

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Hydraulic unit, complete with control module, valve block and return pump (547)
ABS warning lamp on MIU (540)
Wheel sensor, FR (298)
Wheel sensor, FL (298)
Wheel sensor, RR (298)
Wheel sensor. RL (298)
