Control Module Inputs

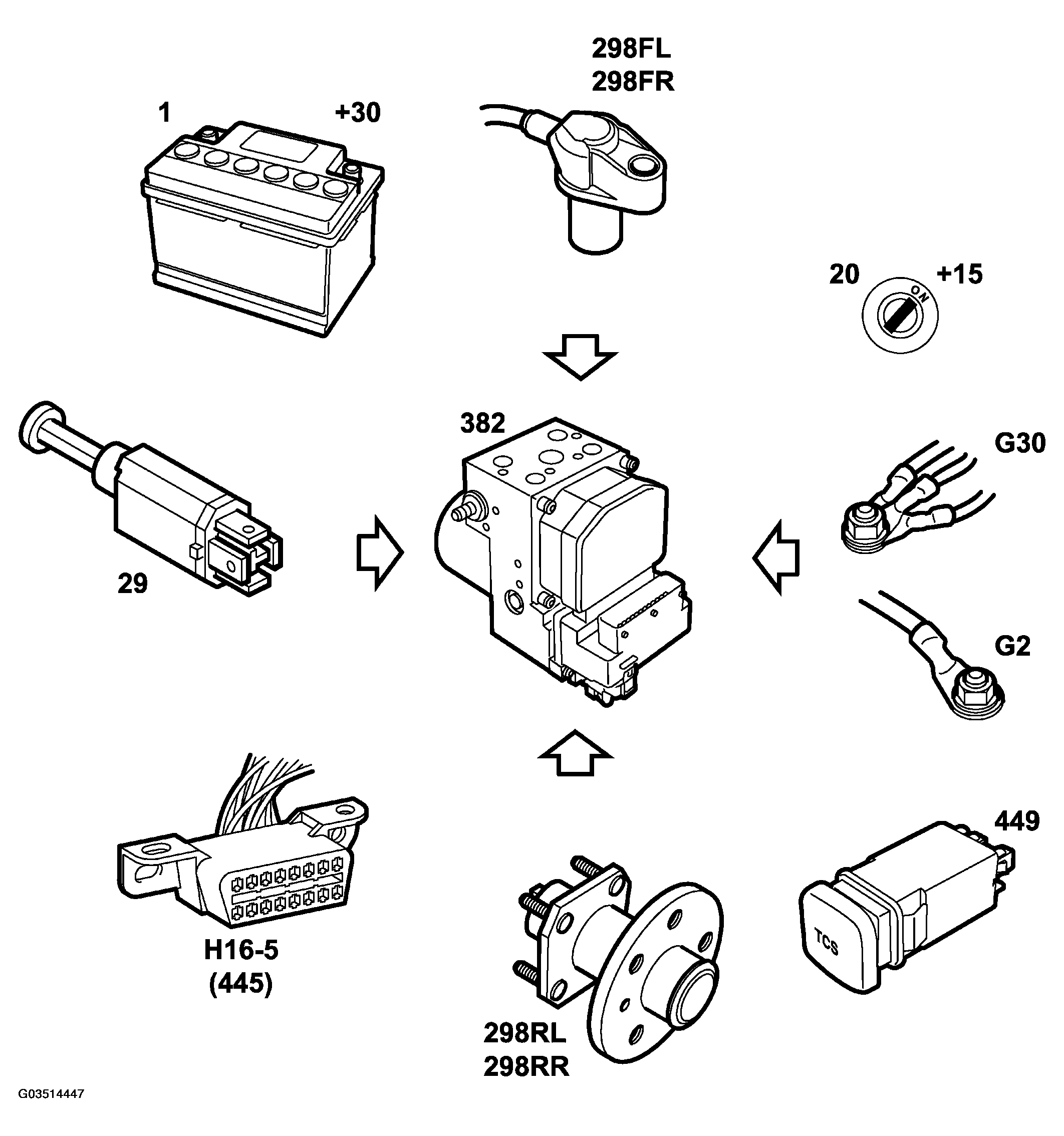

Fig 1: Identifying Control Module Inputs

G03514447

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Current (+30 circuit) (1)
Current (+15 circuit) (20)
Ground (G30, G2).
FRONT-WHEEL SENSORS (298)
REAR-WHEEL SENSORS (298)
BRAKE LIGHT SWITCH (29)
DIAGNOSTICS COMMUNICATION (445)
SWITCH, TCS (449)
