Main Components

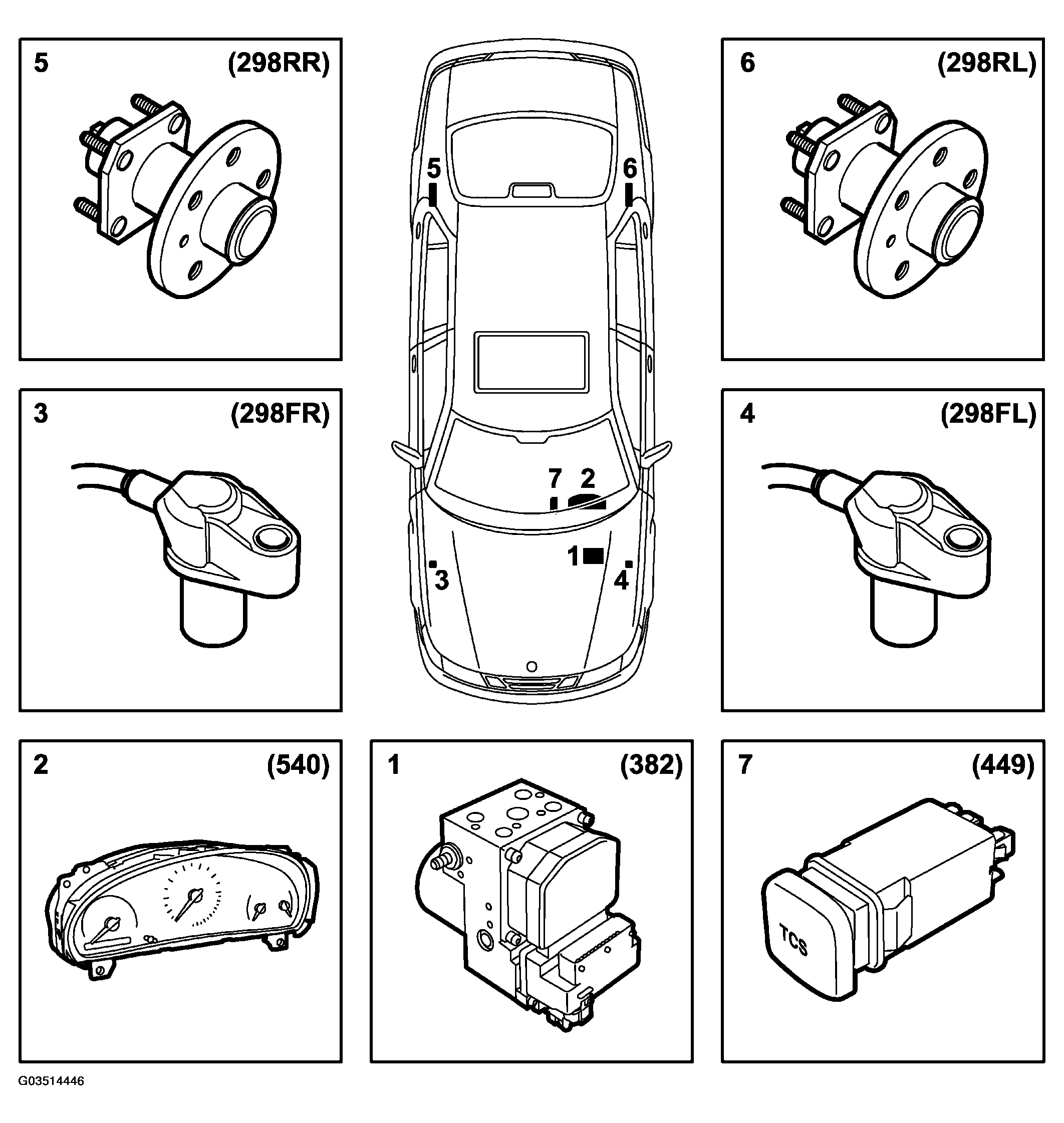

Fig 1: Identifying TC\ABS Main Components
G03514446Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Hydraulic unit with control module, valve housing and return pump (382)
  2. Hydraulic unit (540)
  3. Speed sensor, front right
  4. Speed sensor, front left
  5. Speed sensor, rear right
  6. Speed sensor, rear left
  7. Switch, TCS
