Engine Oil Pressure Sensor

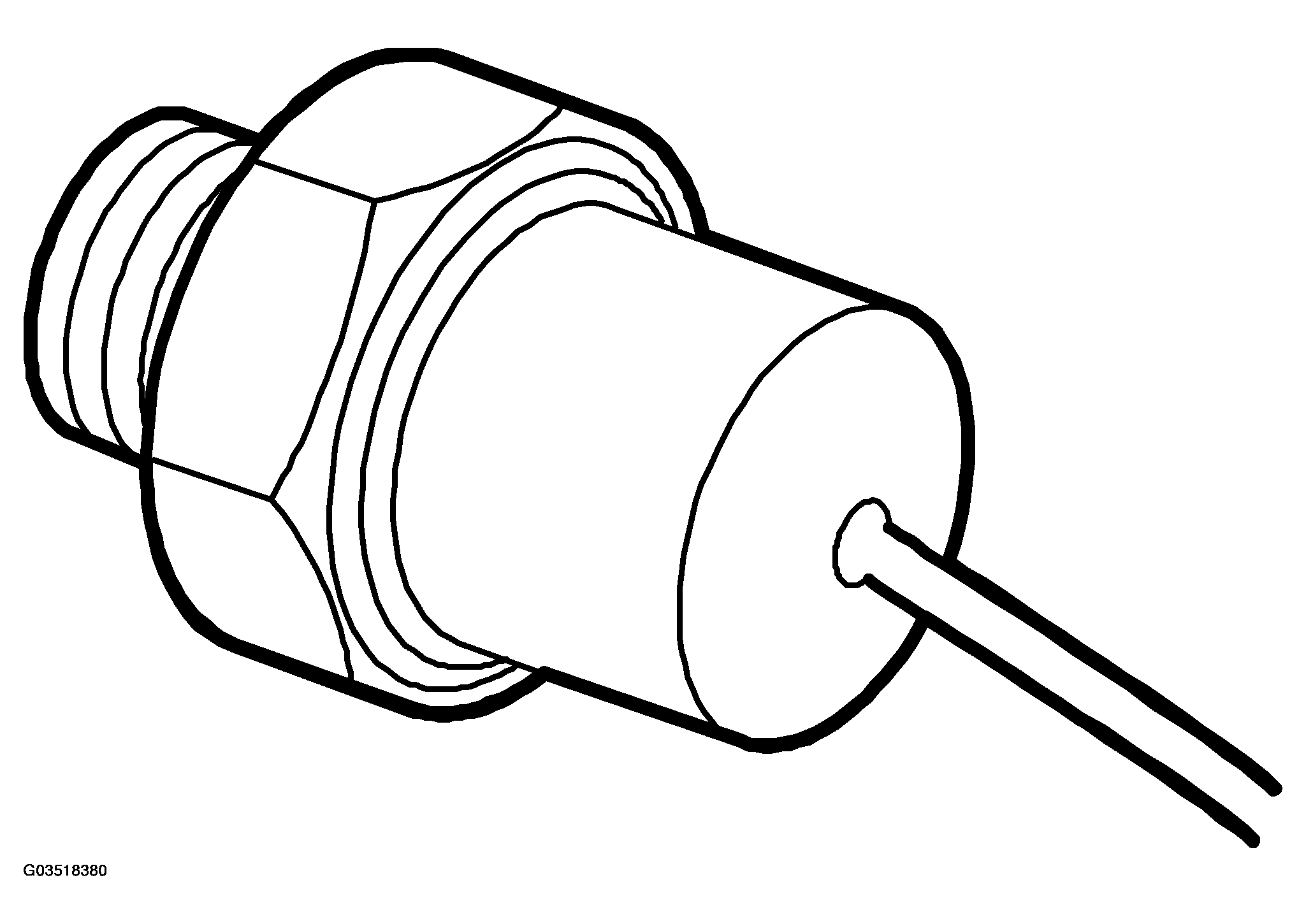

Fig 1: Identifying Engine Oil Pressure Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Pressure Reference
Pressure on opening
bar 0.3-0.55
Pressure on closing
bar 0.3-0.55
Courtesy of SAAB-SCANIA OF AMERICA, INC.
